We are sorry but item below has been discontinued.

Innovative 5545 EVO LCD Arm Desk Mount LED Monitor Arm

Be the first to review this product
Product ID: 16182
Recommended Accessories
Our Price: $194.40
Shipping: $0.00 *
Usually ships in 5 to 7 business days
* applies to Contiguous United States

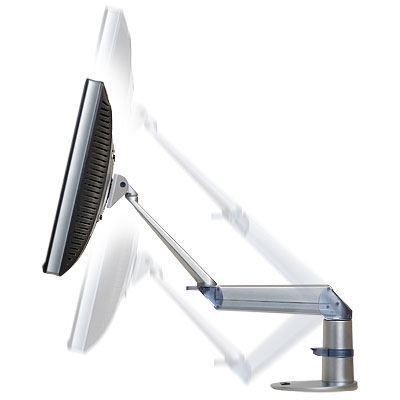

Click on the functions (Height Adjustment, Tilt LCD, Rotate at Forearm, Rotate at Mount, Pivot LCD, Cable Management and Quick Release) to the left side of the image below to see the arm movements





Related Products:

Part Number

Description

5545-250-NM

Vertical +/- 5" and Horizontal 16" Range, Weight 6-13 lbs/15"- 19" LCDs, No Mount

5545-450-NM

Vertical +/- 5" and Horizontal 16" Range, Weight 13-21 lbs/19"- 21" LCDs, No Mount





Accessories for Innovative 5545 EVO LCD Arm

Innovative 8333 EVO Desk Edge or Grommet Clamp Mount

Innovative 8333 EVO Desk Edge

Innovative 8332 EVO Wall Mount

Innovative 8332 EVO Wall Mount

Innovative 8331 EVO Slatrail Mount

Innovative 8331 EVO Slatrail Mount

Innovative 8330 EVO Slatwall Mount

Innovative 8330 EVO Slatwall Mount









Innovative 8210 Pole Clamp Mount holds up to 55 lbs

Innovative 8210 Pole Clamp Mount

Innovative 5510 EVO Security Kit for EVO LCD Arm

Innovative 5510 EVO Security Kit

Innovative 5509 Mount Expansion Kit

Innovtaive 5509 Mount Expansion Kit

Innovative 8335-SM Small CPU Holder

Innovative 8335 CPU Holder







General Information

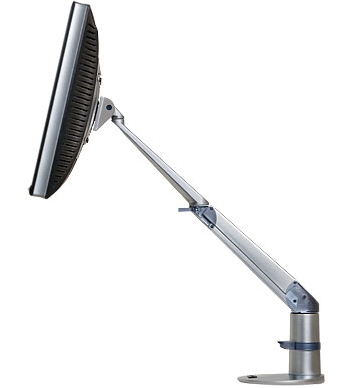

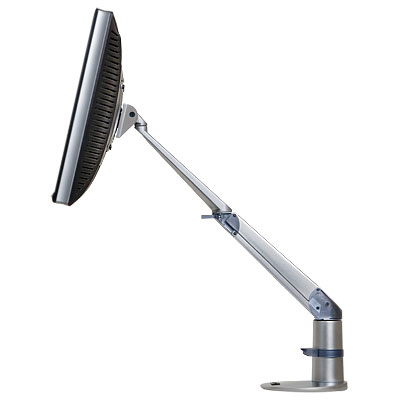

Innovative 5545-250-FM or 5545-450-FM EVO LCD Mounting Arm

A Workplace-enhancing Worktool - Ergonomics made beautiful



Innovative 5545-250-FM or 5545-450-FM EVO LCD Mounting Arm









Features of innovative 5545:

    1.  Intuitive movement - no buttons or levers, simply move monitor to desired position.



    2.  Mount clamps to desk or through grommet with integrated handle (may also combine with slatwall, slatrail or wall mount).

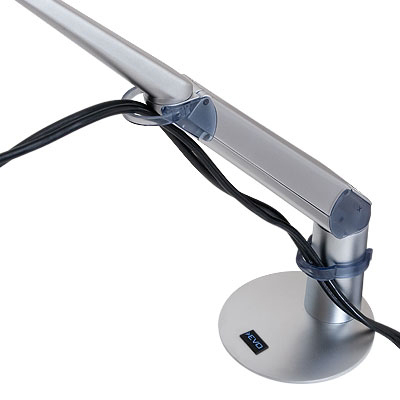

    3.  Cable management reduces workplace clutter.

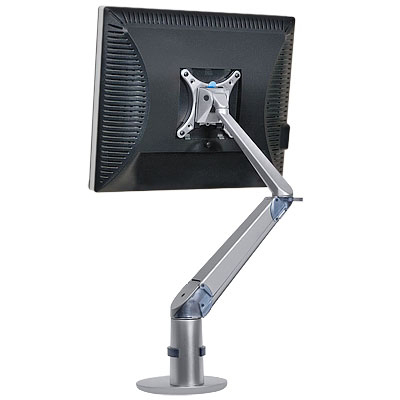

    4.  VESA-monitor compatible - 75mm & 100mm VESA adapters included. Please call for non-VESA options.



    5.  Quick-install/quick-release mechanism instantly and securely snaps monitors into position.

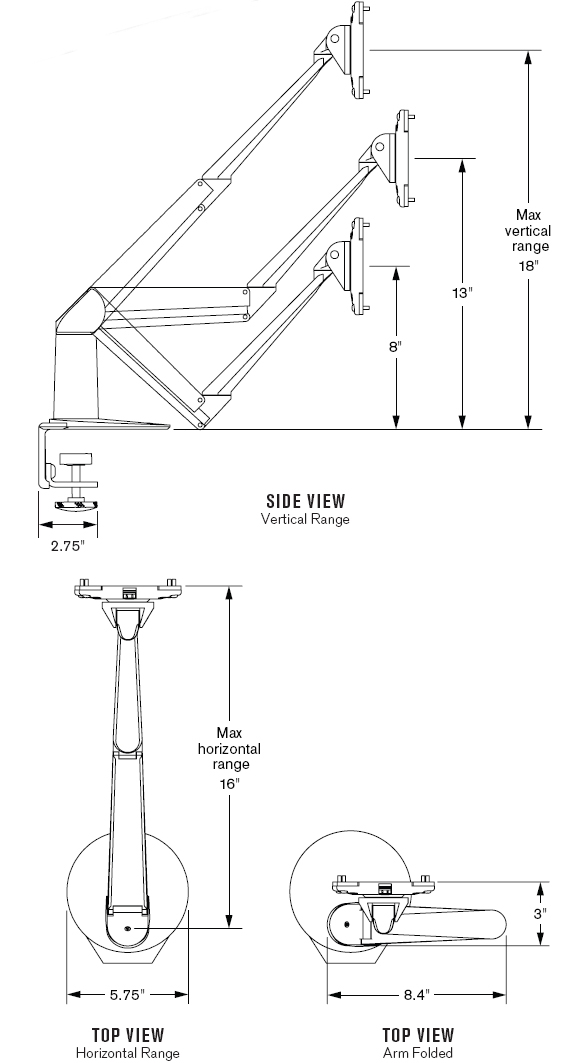

Dimensional Diagram for Innovative 5545-250 or 5545-450 EVO LCD Mounting Arm



Dimensional Diagram for Innovative 5545-250 or 5545-450 EVO LCD Mounting Arm









Description of Innovative 5545-250-NM or 5545-450-NM EVO LCD Arm:

EVO is a stunning LCD mounting arm which establishes a new standard in computer ergonomics by delivering elegant yet functional design to the desktop.

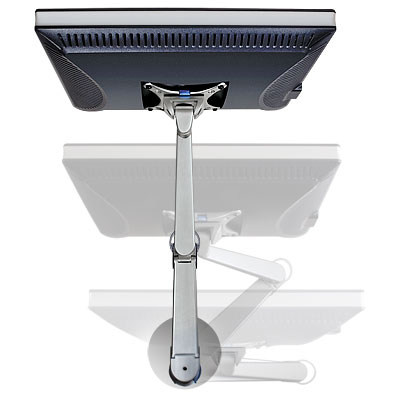

EVO levitates a flat panel monitor above the work surface, enabling fingertip adjustment of monitor height and position. All movement is entirely intuitive - there are no buttons or levers. EVO extends up to 16", and folds back upon itself, creating a multi-functional workspace where the monitor can be moved out of the way when not in use.

Unique features include a desk clamp mount which can be reconfigured for thru-desk mounting; and integrated cable management to reduce workspace clutter.







Specifications:

Vertical Range:

+/-5" (12.7 cm) from horizontal

Horizontal Range:

16" (40.6 cm)

Rotation:

360 degrees at three joints

Monitor Tilt:

185 degrees

Monitor Pivot:

Landscape to portrait

Monitor Compatibility:

VESA MIS-D, 100/75, C compliant

Cable Management:

Cables are clipped beneath arm

Mounting Options:

Desk Clamp (2" (5 cm) thickness or less)

Grommet Mount (2" (5 cm) or larger)

Slatwall, Slatrail and Wall Bracket (sold separately)







Literature (Please open the following documents for more technical information)

Description

File Type

Innovative 5545-250-FM or 5545-450-FM EVO LCD Arm - Brochure

- pdf

Innovative 5545-250 or 5545-450 EVO LCD Mounting Arm - Installation Instruction

- pdf

Innovative 5545-250-NM or 5545-450-NM EVO LCD Mounting Arm - Capabilities

- pdf
