We are sorry but item below has been discontinued. Above are some similar products we can offer instead.

Ergotron 45-255-200 StyleView HD Extender black

Be the first to review this product
Product ID: 16187
Recommended Accessories
Our Price: $129.16
Shipping: $9.75 *
Usually ships in 2 to 3 business days
* applies to Contiguous United States

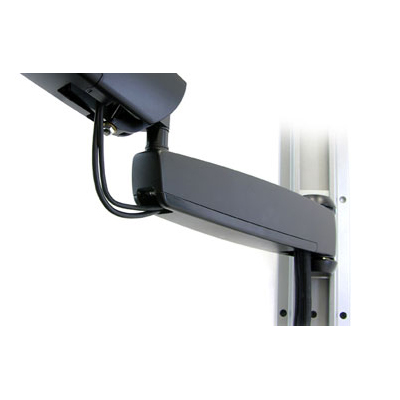

Ergotron 45-255-200 StyleView HD Extender Arm Black 45255200

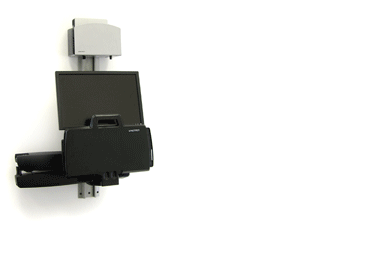

Animation of Ergotron 45-254-200 StyleView HD Extender Arm Black





General Information



Image of Warranty and Returns





Nationwide Delivery Image









Ergotron 45-255-200 StyleView HD Extender Arm Black 45255200



Ergotron 45-254-200 StyleView HD Extender Arm Black









Description of Ergotron 45-255-200 HD Extender:

Add an extender to your SV HD Combo Arm and increase its reach by 18" (46 cm).









Technical Drawing for Ergotron 45-255-200 StyleView HD Extender Black



Technical Drawing for Ergotron 45-254-200 StyleView HD Extender









Technical Specifications:

     LCD Size

Capacity

     Lift

Tilt

Pan

Rotation

VESA

-

-

-

- 18

-

-







Product Information:

Part Number:

45-255-200 (formally 45-219-200 and 45-254-216)

Description:

SV HD Extender (black)

Included:

  • SV HD Arm Extender

  • Wall track mounting brackets

Replaces:

Vertical Mount Base when installed

Compatible:

Only compatible with the 45-215-200 and 45-216-200

Not compatible:

HD Extenders can not attach to Command Post mounting system

Cable Management:

Cable management channel snap-fits under arm

Exterior:

Durable, easy-to-clean exterior composed of aluminum, high-grade plastic and powder coated painted steel

Additional:

Adds additional 18" (46 cm) extension from the wall

Shipping Dimensions:

8"H x 22.5"W x 5.25"D (203 x 572 x 133 mm)

Shipping Weight:

7.5 lbs (3.4 kg)

Warranty:

Five (5) years









Benefits of Ergotron 45-255-200:

    1.  Increases the reach of SV HD Combo Arms.



    2.  Adds a third pivot-point for more adjustment flexibility.



    3.  Clean and integrated cable management conceals cables.



    4.  Easy-to-clean design provides infection control.







Literature (Please open the following documents for more technical information)

Description

File Type

Ergotron 45-255-200 StyleView HD Extender Arm - Dimensional Illustrations

- pdf

Ergotron 45-255-200 HD StyleView Extender Arm - Installation Manual

- pdf
