Ergotron SV41-41002 StyleView EMR LCD Monitor Arm Computer Cart for Mobile Medical Applications, Non-Powered (white, grey and polished aluminum)
Description ofErgotron SV41-41002 EMR Cart:
This innovative, truly ergonomic and easy-to-maneuver healthcare cart features sit-to-stand height adjustment, side-to-side LCD and keyboard motion, bi-focal viewing and an adjustable back-tilt keyboard tray.
Our years of experience and collaboration in point-of-care computing have enabled us to design a cart that nurses, IT, infection control and procurement will all love.

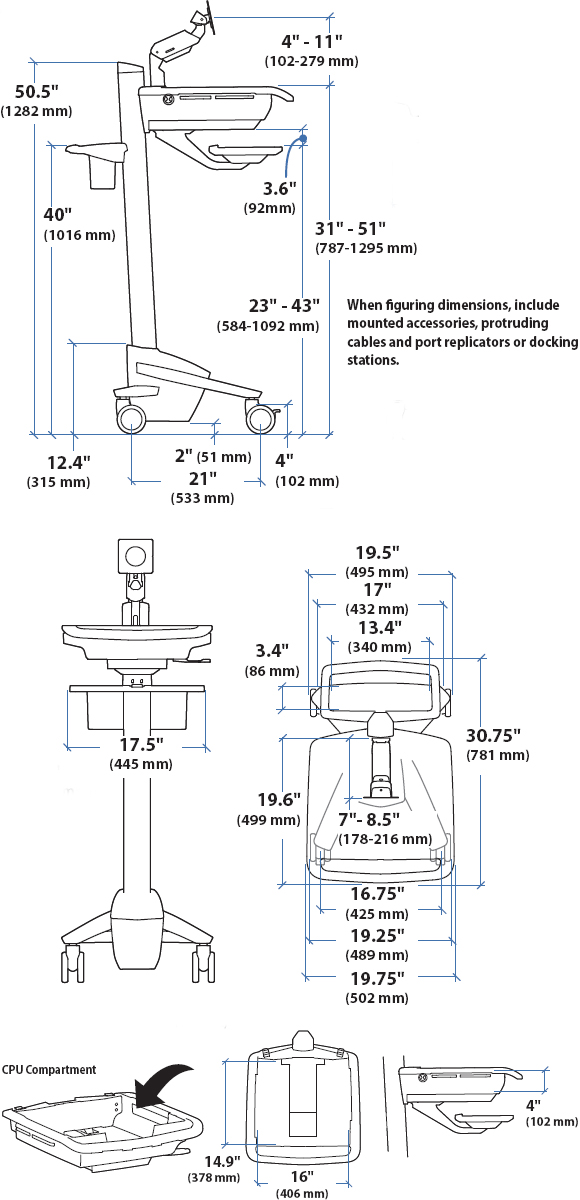

Technical Drawing forErgotron SV41-41002 StyleView EMR LCD Monitor Arm Cart
up to 22"
up to 35 lbs
Lift Pivot 25"
Lift Pivot 25"
Lift Pivot 24º
Lift Pivot 90º P/L
StyleView EMR LCD Cart, Nonpowered, Arm (white, grey and polished aluminum)
Secure CPU compartment
Ethernet ready-on function and four-port USB hub
Scanner holder bracket
Back-tilt keyboard tray
Left/right mouse tray
Four casters (two locking)
Total Maximum Load:
Total maximum load on height-adjustment assembly = 35 lbs (15.9 kg).
This is the sum of the following components: LCD arm = 5-14 lbs (2.3-6.4 kg),
Worksurface and keyboard tray = ≤ 8 lbs (3.6 kg),
CPU compartment = ≤ 13 lbs (5.9 kg)
If the combined LCD and CPU weight is greater than 27 lbs (12.3 kg) then the CPU must be mounted to the rear of the cart using the Universal CPU Holder accessory (ordered separately
LCD and Worksurface:
LCD and worksurface adjust 20" (51 cm) in tandem,
LCD Arm adjusts 7" (17.8 cm) independently,
maximum LCD height adjustment = 27" (68.6 cm)
Monitor Up/Down Tilt:
Portrait Screen Orientation:
Portrait screen orientation may be incompatible with widescreen displays > 19"
Ergonomic back-tilt keyboard tray with left or right mouse tray ensures wrists remain in a neutral position during data entry - avoid repetitive-stress injuries while increasing comfort and productivity
Designed for users 5'0" to 6'1" (152 to 185 cm) tall and for prolonged sitting or standing applications. Unlike competitive offerings, shorter users can work comfortably and productively in a seated position
LCD height adjustment range of at least 25" (63.5 cm) is standard on all LCD carts
Patented CF lift-and-pivot motion technology minimizes forces required to adjust cart position: Casters, height adjustment, LCD tilt and pan all require just a touch
Actual cart weight is just 59 lbs (26.8 kg), making system relocation easy
Arm adjusts screen down low to the worksurface for people wearing bifocals or using a tablet PC
Surfaces are treated with Agion Antimicrobial for product protection; handles are smooth and continuous for improved cleanability
Environmentally clean: RoHS, REACH, WEEE and EU (94/62/EC) packaging compliant
Tested to UL/EN/IEC and FCC Part 15 Class A specifications for enhanced patient safety
Durable, easy-to-clean exterior composed of aluminum, high-grade plastic and zinc-plated steel promotes infection control
One-piece worksurface with no seams, easy-to-clean design promotes infection control
Lockable, ventilated enclosed storage for open laptop. Keys and locks are heavy-duty
Push-button Ethernet ready-on function on worksurface: Awaken enclosed computer from energy-saving hibernation mode with the touch of an external button - facilitates easy compliance with EnergyStar 4.0 guidelines
Designed to meet guidelines established by the American National Standards Institute for computer use
Covered by Global Service Program - 24/7 coverage
All the Details Covered:
Rear basket keeps task-related items where they can be quickly accessed
Universal mounting slot for accessories and equipment
A unique cable management system conceals and organizes cords, making cleaning easy
Ships fully assembled and is easily accessible from container
Four (4) ultra-smooth gliding casters for extremely easy push/pull mobility; two locking casters ensure lock-in-place stability
Compatibility and Dimensions:
Open-architecture design accommodates multiple configurations, closed notebooks with monitor, CPU and monitor, thin clients, tablets, all-in-one computers and future hardware upgrades
Storage compartment for closed notebook, thin client or CPU: 15.75"W x 14.75"D x 3.75"H (40 x 37.5 x 9.5 cm); larger computers can mount to rear of cart with Universal CPU Holder accessory (ordered separately)
Compact Wheel-to-Wheel Base Dimensions: 17" x 21" (430 x 533 mm)
Worksurface Dimensions: 19.75" W x 19.6" D (502 x 498 mm)
Mounting Standards: VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
31" H x 21" W x 52" D (80 x 54.6 x 132.8 cm)
86 lbs (39.1 kg); actual cart weight = 59 lbs (26.8 kg)

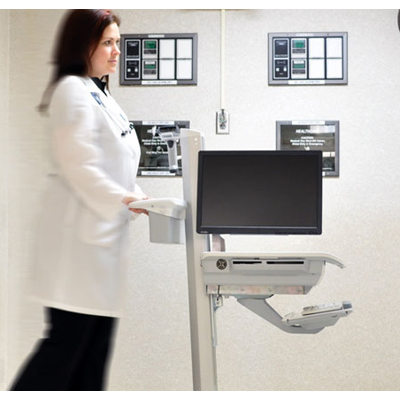

1. Effortlessly maneuver the cart to the point of need - StyleView quickly responds to caregivers’ touch and enables nurses to focus on their patients.
2. Truly ergonomic design accommodates the largest range of nurses and other caregivers; designed for sitting or standing with single-motion fluid adjustment - helps promote caregiverwellness and productivity.
3. StyleView’s small footprint, with ultra-smooth gliding casters, travels easily across crowded carpet or hard surface floors and is perfect for space constrained areas.
4. Open-architecture design accommodates multiple configurations: closed notebooks with monitor, CPU and monitor, thin clients, tablets, all-in-one computers and future hardwareupgrades.
5. Surfaces are treated with Agion Antimicrobial for product protection.
6. LCD and keyboard pan side-to-side for closer access while interacting with clients; arm also reaches low for people wearing bifocals or using a tabletPC.
Literature(Please open the following documents for more technical information)
