Ergotron SV42-42221 StyleView EMR Cart with LCD Monitor Arm, Powered

Lockable, Ventilated Enclosed Storage for Closed Laptop, Thin Client or CPU up to 15.75W x 14.75D x 3.75H (40 x 37.5 x 9.5 cm). Keys and Locks are Heavy-Duty
Be the first to review this product
Product ID: 16203
Recommended Accessories
Our Price: $3,159.57
Shipping: $178.95 *
Usually ships in 2 to 3 business days
* applies to Contiguous United States

General Information



Image of Warranty and Returns

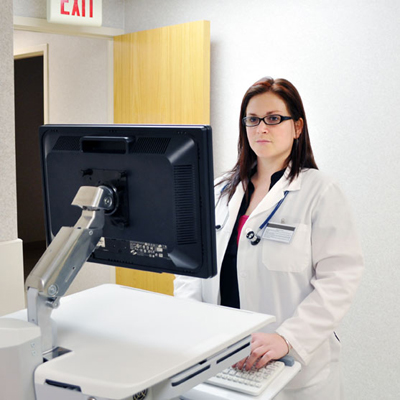

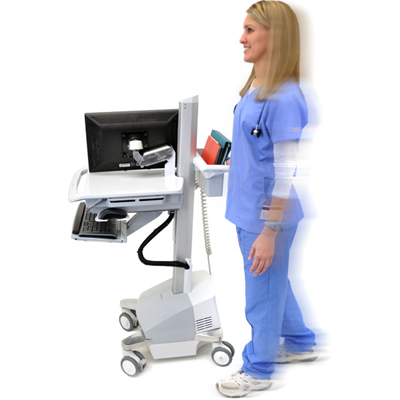

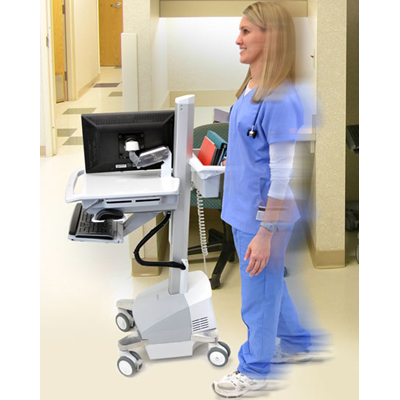

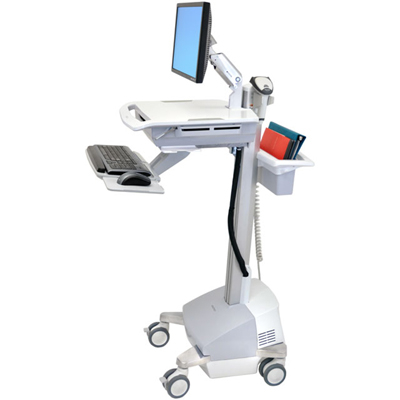

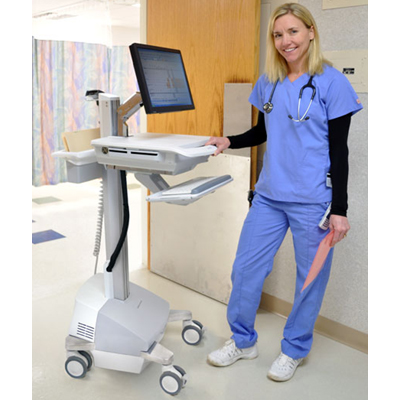

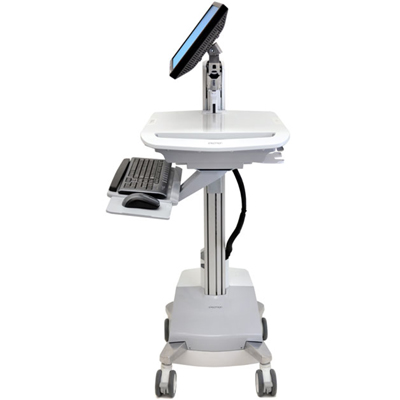

Ergotron SV42-42221 StyleView EMR Powered Cart with LCD Monitor Arm

(white, grey and polished aluminum) SV4242221

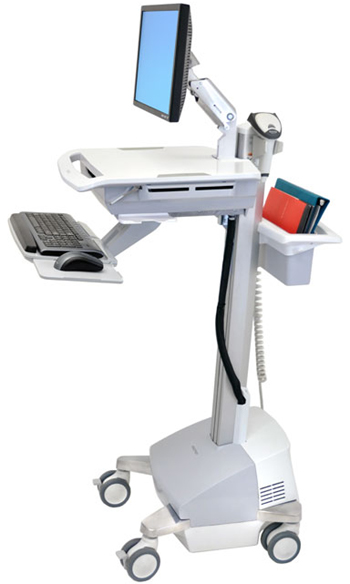

Ergotron SV42-42221 StyleView EMR Powered Cart with LCD Monitor Arm









Description of Ergotron SV42-42221 EMR LCD Cart:

Order part number that coincides with regional power system requirements: North America = SV42-42221; Europe = SV42-42223; UK/IE = SV42-42225; HK/MY/SG = SV42-42225; AU/NZ = SV42-42227; China = SV42-42229; Japan = SV42-42233.



Stay productive and on the go with our certified power system. This innovative, truly ergonomic and easy-to-maneuver healthcare cart features sit-to-stand height adjustment, independent screen positioning and an adjustable back-tilt keyboard tray.

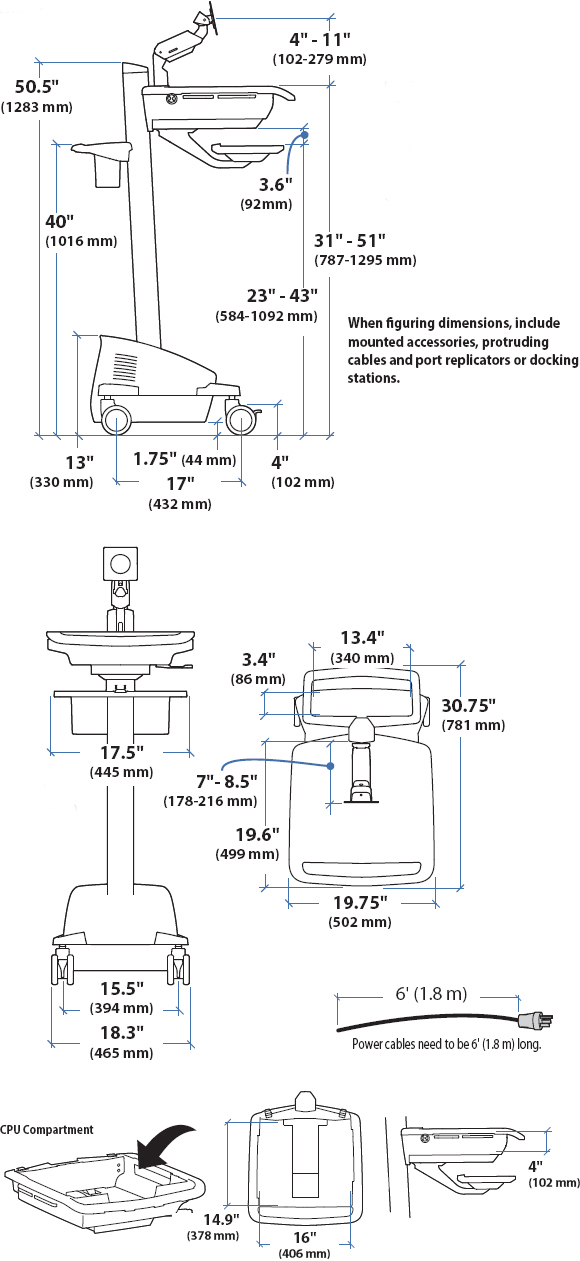

Technical Drawing for Ergotron SV42-42221 StyleView EMR LCD Monitor Arm Cart



Technical Drawing for Ergotron SV42-42221 StyleView EMR LCD Monitor Arm Cart









Technical Specifications:

     LCD Size

 Wt. Capacity

     Lift

Tilt

Pan

Rotation

VESA

up to 22"

up to 35 lbs
16 kg

27"
68 cm

65°

180°

360° P/L

MIS-D







Product Information:

Part Number:

North America = SV42-42221

Europe = SV42-42223

UK/IE = SV42-42205

HK/MY/SG = SV42-42225

AU/NZ = SV42-42227

China = SV42-42229

Japan = SV42-42233

Description:

StyleView EMR LCD Cart, Powered, Arm (white, grey and polished aluminum)

Included:

  • LCD Arm

  • Worksurface

  • Secure CPU compartment

  • Ethernet ready-on function and four-port USB hub

  • Scanner holder bracket

  • Mouse holder

  • Wrist rest

  • Back-tilt keyboard tray

  • Left/right mouse tray

  • Rear handle

  • Storage basket

  • Cable storage

  • Four casters (two locking)

  • Two-battery 66 Ah power system

  • 10-foot (3 m) coiled cord

  • Four hospital-grade AC outlets

  • Power system user interface

  • StyleLink software

Total maximum Load on Height-Adjustment Assembly:

35 lbs (15.9 kg).

This is the sum of the following components: LCD arm = 5-14 lbs (2.3-6.4 kg); worksurface and keyboard tray = ≤ 8 lbs (3.6 kg); CPU compartment = ≤ 13 lbs (5.9 kg)

NOTE:

If the combined LCD and CPU weight is greater than 27 lbs (12.3 kg) then the CPU must be mounted to the rear of the cart using the Universal CPU Holder accessory (ordered separately)

LCD and Worksurface:

LCD and worksurface adjust 20" (51 cm) in tandem;

LCD Arm adjusts 7" (17.8 cm) independently;

maximum LCD height adjustment = 27" (68.6 cm)

Monitor up/down Tilt:

+60°/-5°

Portrait Screen Orientation:

Portrait screen orientation may be incompatible with widescreen displays > 19"

True Ergonomics:

  • Ergonomic back-tilt keyboard tray with left or right mouse tray ensures wrists remain in a neutral position during data entry - avoid repetitive-stress injuries while increasing comfort and productivity

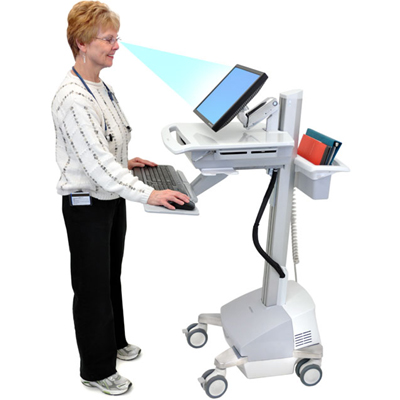

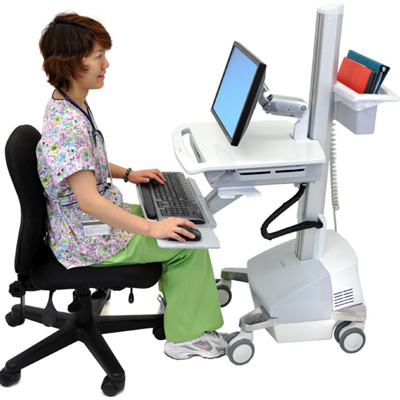

  • Designed for users 5'0" to 6'1" (152 to 185 cm) tall and for prolonged sitting or standing applications. Unlike competitive offerings, shorter users can work comfortably and productively in a seated position

  • LCD height adjustment range of at least 25" (63.5 cm) is standard on all LCD carts

  • Patented CF lift-and-pivot motion technology minimizes forces required to adjust cart position: Casters and height adjustment require just a touch

  • Actual cart weight is just 125 lbs (57 kg), making system relocation easy

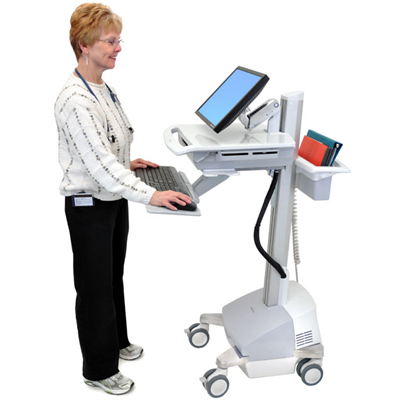

  • Arm adjusts screen down low to the worksurface for people wearing bifocals or using a tablet PC

Safe:

  • Dependable fifth-generation power system with easy to replace batteries. For patient and caregiver safety the power system is certified to UL/EN/IEC 60601-1 and CAN/CSA C22.2 No.601.1 M90, as well as NFPA leakage current limits; FULL cart-level certification is in progress

  • Power System User Interface integrated conveniently on the worksurface (includes visual and audible battery status indicator)

  • Power system complies with EMI limits of FCC Part 15 Class A

  • Surfaces are treated with Agion Antimicrobial for product protection; handles are smooth and continuous for improved cleanability

  • Environmentally clean: RoHS, REACH, WEEE and EU (94/62/EC) packaging compliant

  • Durable, easy-to-clean exterior composed of aluminum, high-grade plastic and zinc-plated steel promotes infection control

  • One-piece worksurface with no seams; easy-to-clean design promotes infection control

  • Lockable, ventilated enclosed storage for open laptop. Keys and locks are heavy-duty

  • Front-locking casters

  • Designed to meet guidelines established by the American National Standards Institute for computer use

Service:

  • Includes FREE StyleLink with enterprise capabilities - Install, access and manage your StyleView power systems from a remote location across WAN, LAN, or VPN. StyleLink’s three-part software package maximizes your IT tech-support time by giving you real-time centralized control over carts across campus, the city, country or the world

  • Covered by Global Service Program - 24/7 coverage

All the Details Covered:

  • Four amber LEDs provide light over keyboard tray; includes 15-minute auto shut-off

  • Button for LED lights and Ethernet ready-on is located conveniently on worksurface

  • Easy access to components for field replacement and serviceability: keyboard LEDs, PC boards (including the user interface). Easier, faster upkeep and service means less down time

  • Pre-routed cables provide quicker integration with equipment

  • TAA (Trade Agreements Act) compliant

  • Universal mounting slot for accessories and equipment

  • A unique cable management system conceals and organizes cords, making cleaning easy

  • Ships fully assembled and is easily accessible from container

  • Four (4) ultra-smooth gliding casters for extremely easy push/pull mobility; two locking casters ensure lock-in-place stability

Compatibility and Dimensions:

  • Open-architecture design accommodates most laptops - even widescreen and allows for future hardware upgrades

  • Storage compartment for closed notebook, thin client or CPU: 15.75"W x 14.75"D x 3.75"H (40 x 37.5 x 9.5 cm); larger computers can mount to rear of cart with Universal CPU Holder accessory (ordered separately)

  • Compact Wheel-to-Wheel Base Dimensions: 15.5" x 17" (394 x 432 mm)

  • Worksurface Dimensions: 19.75" W x 19.6" D (502 x 498 mm)

  • Mounting Standards: VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)

  • Power System:
    SV42-42221 = 120V/60Hz, 66Ah;
    SV42-42223, SV42-42225, SV42-42227 = 230V/50Hz, 66Ah;
    SV42-42229 = 220V/50Hz, 66Ah;
    SV42-42233 = 100V/50Hz, 66Ah

  • Grounded Plug & Outlet:
    SV42-42221 = NEMA 5-15P Hospital Grade;
    SV42-42223 = European CEE 7;
    SV42-42225 = UK BS 1363;
    SV42-42227 = AS/NZS 3112;
    SV42-42229 = GB2009-1, GB1002-1;
    SV42-42233 = JIS 8303

Shipping Dimensions:

24" W x 32" D x 56" H (61 x 81 x 142 cm)

Shipping Weight:

162 lbs (73.5 kg); actual cart weight = 129 lbs (58.5 kg)

Warranty:

Five (5) years









Benefits of Ergotron SV42-42221:

    1.  Effortlessly maneuver the cart to the point of need - StyleView quickly responds to caregivers’ touch and enables nurses to focus on their patients.



    2.  Truly ergonomic design accommodates the largest range of nurses and other caregivers; designed for sitting or standing with single-motion fluid adjustment - helps promote caregiver wellness and productivity.



    3.  StyleView’s small footprint, with ultra-smooth gliding casters, travels easily across crowded carpet or hard surface floors and is perfect for space constrained areas.



    4.  Open-architecture design accommodates multiple configurations: closed notebooks with monitor, CPU and monitor, thin clients, tablets, all-in-one computers and future hardware upgrades.



    5.  Surfaces are treated with Agion Antimicrobial for product protection.



    6.  LCD and keyboard pan side-to-side for closer access while interacting with clients; arm also reaches low for people wearing bifocals or using a tablet PC.



    7.  Dependable fifth-generation power system with easy to replace batteries. For patient and caregiver safety the power system is certified to UL/EN/IEC 60601-1 and CAN/CSA C22.2 No.601.1 M90, as well as NFPA leakage current limits; FULL cart-level certification is in progress.



    8.  Push-button Ethernet ready-on function embedded in worksurface: Awaken enclosed computer from energy-saving hibernation mode with the touch of an external button - facilitates easy compliance with EnergyStar 4.0 guidelines.







Literature (Please open the following documents for more technical information)

Description

File Type

Ergotron SV42-42221 StyleView EMR Cart with LCD Monitor Arm- Product Sheet

- pdf

Ergotron SV42-42221 StyleView EMR LCD Powered Cart - Dimensional Illustrations

- pdf
