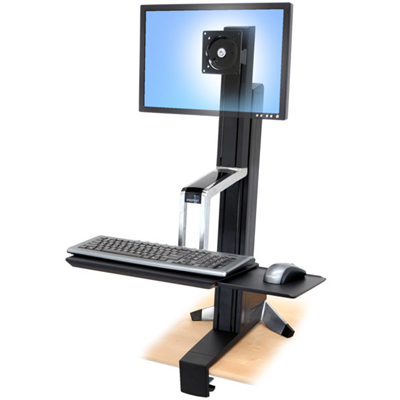

Ergotron 33-342-200 WorkFit-S Sit-Stand Workstation for Single Monitor, LD, with Surface Mount Base

Max height from desktop to top of monitor is approximately 40". Desk clamp attaches to surface edge 0.4" to 2.4" (1 to 6 cm) thick.

click image to enlarge

This product has the following options available: Option 1 - Grommet Mount Option 2 - Worksurface Option 3 - Keyboard Tray Option 4 - Tablet/Document Holder Option 5 - Floor Mat Option 6 - Notebook Tray Option 7 - CPU Holder Option 8 - Power Strip Option 9 - Cable Management Option 10 - Wrist Rest Option 11 - Mouse Holder Option 12 - Mouse Pad

Our Price:	$379.00
Shipping:	$50.95 *
* applies to Contiguous United States

Quantity:

+ Have a question? Click here.
+ International orders
+ Warranty and returns information

Description Accessories Specifications

Description

Transform any surface into a personalized height-adjustable desk. Get affordable ergonomics.

Change from a sitting to a standing position whenever you want. Ergotron 33-342-200 sit-stand workstation moves your keyboard and display in one simple motion, making computing comfortable for prolonged periods.

Technical Drawing

Technical Drawing for Ergotron 33-342-200 Single LD Workstation

Technical Specifications


LCD Size	Capacity	Lift	Tilt	Pan	Rotation	VESA
Up to 24"	6-16 lbs 2.7-7.3 kg	23" 58 cm	30°	-	360° P/L	MIS-D

Product Information

Part Number:	33-342-200
Description:	WorkFit-S Sit-Stand Workstation for Single LCD Monitor, LD, with Surface Mount Base (black and polished aluminum)
Includes:	Height-adjustment column Desk clamp LCD pivot Keyboard tray with left/right mouse tray
Notebook Tray:	Can be configured to hold a laptop instead of an LCD display: also order the LX Notebook Tray (50-193-200)
Weight Capacity:	Maximum load on height-adjustment assembly = 24 lbs (11 kg). LCD pivot capacity = 6–16 lbs (2.3–7.3 kg)
Lift Range:	LCD and keyboard adjust 18" (46 cm) in tandem; LCD adjusts 5" (13 cm) independently; maximum LCD height adjustment = 23" (58 cm)
Desk Thickness:	Desk Clamp attaches to surface edge .47" to 2.4" (1.2 to 6 cm) thick
Keyboard Tray:	Ergonomic back-tilt keyboard tray ensures wrists remain in a neutral position during data entry - avoid repetitive-stress injuries while increasing comfort and productivity. Keyboard tray includes mouse tray that installs on left or right.
Exterior:	Durable, easy-to-clean exterior composed of aluminum, high-grade plastic and powder coated painted steel.
Mounting Standards:	VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
CF Technology:	Patented Constant Force (CF) lift-and-pivot motion technology.
Note:	Because mounting surface materials can vary widely, it is imperative that you make sure mounting surface is strong enough to handle mounted product and equipment. Computer systems mounted on a WorkFit-S may require extra long power and video cables in order to span between standing and sitting heights.
Shipping Dimensions:	8"H x 23"W x 44"D (20 x 58 x 115 cm)
Shipping Weight:	38.5 lbs (17.5 kg)
Warranty:	Five (5) years

Benefits

For Computer Users

Counterbalanced adjustment points allow instantaneous, tool-free re-positioning while you work.
Easily and simultaneously lift keyboard and LCD screen to proper height for unsurpassed ergonomic comfort.
Patented Constant Force lift technology provides fluid, one-touch adjustments of the keyboard and monitor positions for personalized computing.

For IT and Facilities Staff

IT deployment friendly - convert most work areas into a productive and complete computer workstation in minutes.
Modify existing office spaces or cubes by simply clamping a WorkFit-S on an existing worksurface, without the cost of expensive professional installers.
Safe and neat routing of cables.
Flexible, open-architecture design is scalable for future computer equipment.

For Company Cost Savings

Provide standing work platforms for employees without having to buy expensive height-adjustable chairs.
Studies in office ergonomics show productivity increases 12%–18% following an ergonomic intervention where employees are provided with well-designed ergonomic furniture.

Literature (Please open the following documents for more technical information)

Product Sheet - Ergotron 33-342-200 WorkFit-S Single LD Monitor Workstation	- pdf
Installation Manual - Ergotron 33342200 Single LD LCD Height Adjustable Workstation	- pdf
Dimensional Illustrations - WorkFit-S Single LD LED Display Sit-Stand Desk Mount	- pdf
Tips and Tricks - 33-342-200 WorkFit-S Sit-Stand Height Adjustable Desk Mount	- pdf
WorkFit Flyer - Ergotron 33342200 WorkFit-S Single LD LCD Monitor Workstation	- pdf

Ergotron Logo

Model	33-342-200
Manufacturer	Ergotron
Part Number	33-342-200
UPC	698833012644

Weight Capacity	Maximum load on height-adjustment assembly = 24 lbs (11 kg). LCD pivot capacity = 6–16 lbs (2.3–7.3 kg)
Monitor Size	Up to 24"
Lift	(58 cm) 23 in
Tilt	30 degree
Mounting Pattern	VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
Shipping Weight	38.5 lbs (17.5 kg)
Shipping Dimensions	8"H x 23"W x 44"D (20 x 58 x 115 cm)
Warranty	Five (5) years
Color	Black and polished aluminum
Rotation	(P/L) 360 degree
Desktop Thickness Range	Desk Clamp attaches to surface edge .47" to 2.4" (1.2 to 6 cm) thick
Mounting Options	Desk Mounts
Monitor Arm Types	Sit-Stand Workstation
