Premier Mounts AM50 Articulating LED TV VESA Swingout Wall Mount up to 37" Displays

Be the first to review this product
Product ID: 16216
Options
List Price: $175.00
Our Price: $122.50
You Save: $52.50
Shipping: $15.44 *
Usually ships in 2 to 3 business days
* applies to Contiguous United States
Add to Cart





Related Products:

Part Number

Description

AM50

Silver Articulating TV VESA Swingout Wall Mount Arm up to 37" Displays

AM50-B

Black Articulating VESA Swingout Wall Mount Arm up to 37" Flat Panel Display





General Information



Image of Warranty and Returns





Nationwide Delivery Image









Premier AM-50 or AM-50-B Articulating VESA Swingout Wall Mount Arm

up to 37 inch Displays



Premier AM-50 Articulating VESA Swingout Wall Mount Arm up to 37 inch Displays

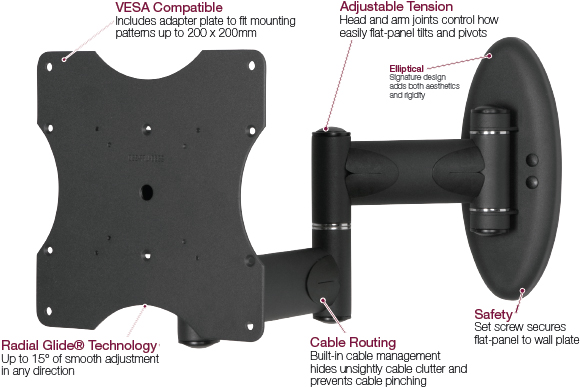

Features of Premier AM 50 or AM 50 B Articulating Arm:

    1.  Extends from 3.7"-16.9" from the wall.



    2.  Quick, three-step installation.



    3.  Smooth movement featuring Radial Glide Technology.



    4.  Cable routing inside arms.

    5.  Elliptical design adds rigidity and aesthetics.



    6.  OSHPD & DSA Approved (OPA-1684-07)

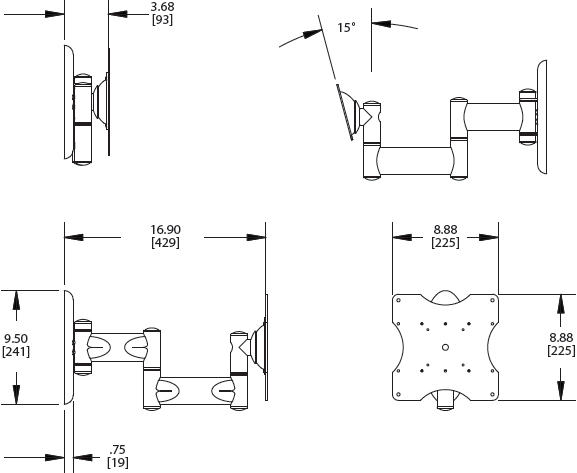

Technical Drawings for Premier AM50 or AM50-B Articulating VESA Swingout

Wall Mount Arm



Technical Drawings for Premier AM50 Flat Panel VESA Articulating Swingout Arm







Specifications:

Color:

Silver or Black

Ship Weight:

11 lbs

Display Range:

10" - 37"

Weight Capacity:

50 lbs (22 kg)

Depth/Extension:

16.89" (429 mm)

Tilt:

+/-15°

Pivot:

+/-15°

Swing:

+/-90°

Rotation:

360°

Mounting Patterns:

75 x 75mm, 100 x 100mm, 200 x 100mm, 200 x 200mm









Frequently Asked Questions:

What if I don't know my mounting pattern?
Check the mount locator tool on www.mounts.com to see a list of compatible mounts or select a universal mount, which fits a broader range of mounting points.



My flat panel could fit more than one mount. How do I choose?
Installation requirements, aesthetics, flat-panel weight and range of motion should assist in whittling down your decision for you.



What is OSHPD?
OSHPD stands for the Office of Statewide Health Planning and Development. Testing and certification from this government-run organization is focused on seismic testing of products. Mathematical calculations and physical shake tests are required for approval.







Literature (Please open the following documents for more technical information)

Description

File Type

Premier AM50 VESA Articulating Swingout Wall Mount - Technical Specification

- pdf

Premier AM50 Articulating VESA Swingout Wall Mount Arm - Installation Manual

- pdf
