Premier AM175 Articulating Swing out Wall Mount Arm up to 63" Flat Panel Display

Be the first to review this product
Product ID: 16224
Recommended Accessories
List Price: $368.00
Our Price: $257.60
You Save: $110.40
Shipping: $48.95 *
Usually ships in 2 to 3 business days
* applies to Contiguous United States
Add to Cart





Accessories for Premier AM175 Articulating Swing out Arm



Premier GB-INWAVP or GB-INWAVPB In-Wall A/V and Power GearBox

Premier GB-INWAVP In-Wall A/V and Power GearBox







General Information



Image of Warranty and Returns





Nationwide Delivery Image

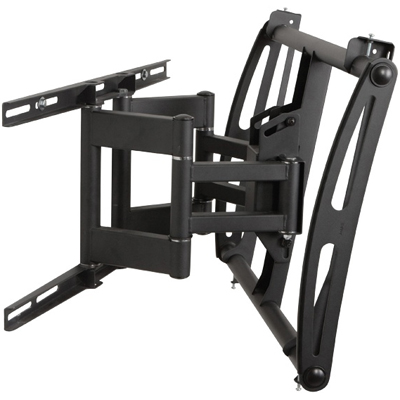

Premier AM-175 Articulating Swingout Wall Mount Arm up to 63" Flat panel Display



Premier AM-175 Articulating Swingout Wall Mount Arm up to 63" Flat panel Display









Features of Premier AM 175 Articulating Arm:

    1.  Scissor-style mount extends straight from wall.



    2.  Extends from 3.5"-16".



    3.  Lightweight tubular design makes installation easy.



    4.  Features patented Griplate System.

    5.  Included adapters reach extra-wide mounting patterns.



    6.  Combine with INW-AM325 In-wall box for a "zero profile" installation.









Technical Drawings for Premier AM175 Articulating Swingout Wall Mount Arm



Technical Drawings for Premier AM175 Articulating Swingout Wall Mount Arm







Specifications:

Ship Weight:

48 lbs

Display Range:

37" - 63"

Weight Capacity:

175 lbs (79 kg)

Depth/Extension:

15.99" (406 mm)

Tilt:

10°

Pivot:

+/-45°

Swing:

+/-45°

Mounting Patterns:

200 x 200mm (min) - 700 x 500mm (Max)









Frequently Asked Questions:

What if I don't know my mounting pattern?
Check the mount locator tool on www.mounts.com to see a list of compatible mounts or select a universal mount, which fits a broader range of mounting points.



My flat panel could fit more than one mount. How do I choose?
Installation requirements, aesthetics, flat-panel weight and range of motion should assist in whittling down your decision for you.



What's the difference between pivot and swivel?
Pivot is the left-to-right motion of the flat panel without moving the mounting arms. Swivel is the left-to-right articulation of the flat panel by moving the arm(s) from side to side.







Literature (Please open the following documents for more technical information)

Description

File Type

Premier AM-175 Articulating Swingout Wall Mount Arm - Data Sheet

- pdf

Premier AM 175 Articulating Swingout Wall Mount Arm - Installation Manual

- pdf
