Premier AM300 or AM300-B Articulating Swing Out Wall Mount LED Arm up to 68" Displays

Be the first to review this product
Product ID: 16225
Options
List Price: $625.00
Our Price: $437.50
You Save: $187.50
Shipping: $60.95 *
Usually ships in 2 to 3 business days
* applies to Contiguous United States
Add to Cart





Related Products:

Part Number

Description

AM300

Silver Articulating Swingout Wall Mount Arm up to 68" Flat Panel Displays

AM300-B

Black Articulating Swingout Wall Mount Arm up to 68" Flat Panel Displays





Accessories for Premier AM300 or AM300-B Articulating Swingout Wall Mount



Premier GB-INWAVP or GB-INWAVPB In-Wall A/V and Power GearBox

Premier GB-INWAVP In-Wall A/V and Power GearBox







General Information



Image of Warranty and Returns





Nationwide Delivery Image









Premier AM-300 or AM-300-B Articulating Swingout Wall Mount Arm

up to 68" Flat Panel Displays

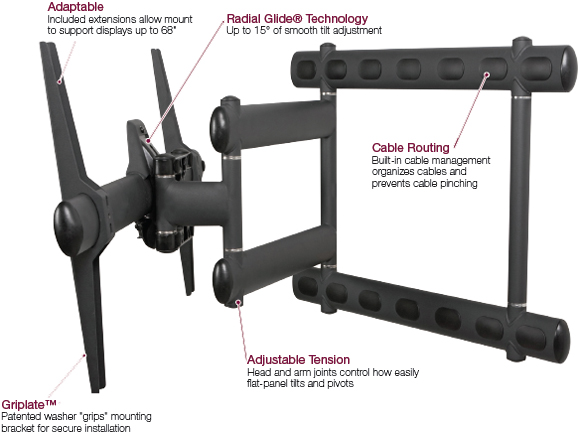

Premier AM-300 Articulating Swingout Wall Mount Arm up to 68" Flat panel Display









Features of Premier AM 300 or AM 300 B Articulating Arm:

    1.  Extends from 4"-26" from the wall.



    2.  May be installed to swing from left (shown) or right.



    3.  Smooth movement featuring Radial Glide Technology.



    4.  Built-in cable management.

    5.  Features patented Griplate System.



    6.  Elliptical design adds rigidity and aesthetics.

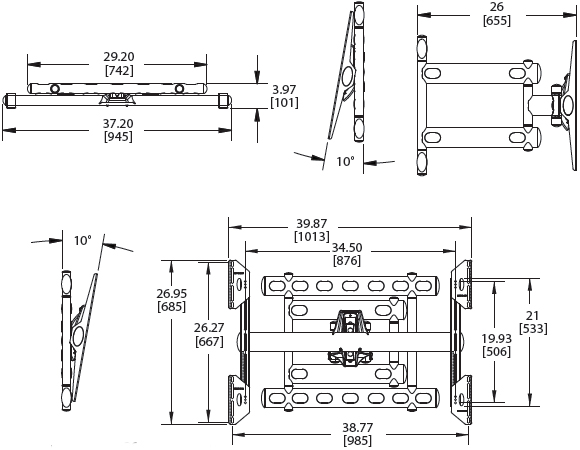

Technical Drawings for Premier AM300 or AM300B Articulating Swingout Arm



Technical Drawings for Premier AM300 Articulating Swingout Wall Mount Arm







Specifications:

Ship Weight:

60 lbs

Display Range:

37" - 68"

Weight Capacity:

300 lbs (136 kg)

Depth/Extension:

25.79" (655 mm)

Tilt:

+/-10°

Pivot:

+/-45°

Swing:

+/-90°

Mounting Patterns:

225 x 225mm (min) - 985 x 665mm (Max)









Frequently Asked Questions:

What if I don't know my mounting pattern?
Check the mount locator tool on www.mounts.com to see a list of compatible mounts or select a universal mount, which fits a broader range of mounting points.



My flat panel could fit more than one mount. How do I choose?
Installation requirements, aesthetics, flat-panel weight and range of motion should assist in whittling down your decision for you.







Literature (Please open the following documents for more technical information)

Description

File Type

Premier AM-300 Articulating Swingout Wall Mount Arm - Data Sheet

- pdf

Premier AM 300 Articulating Swingout Wall Mount Arm - Installation Manual

- pdf
