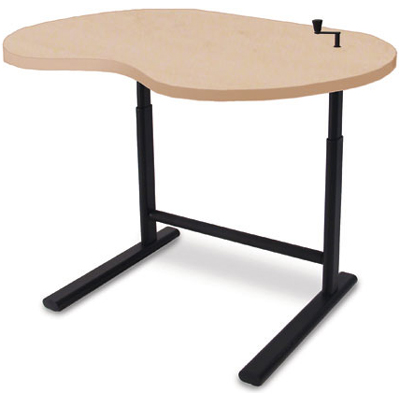

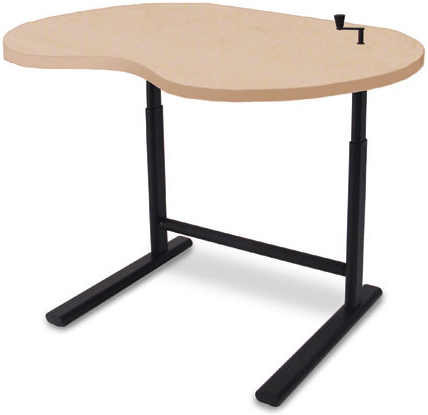

SIS Move 1610 or 1611 or 1616 Single Surface Crank Kidney Organic Adjustable Table and Ergonomic Desk
23” - 35.5” seated height range. Removable crank adjustment.
click image to enlarge
|
SIS Move 1610 or 1611 or 1616 Crank Organic Single Surface Height Adjustable Workcenter
|
|
General Information
|
|
|
|
|
|
SIS Move 1610 or 1611 or 1616 Crank Kidney Height Adjustable Single Surface Ergonomic Table Desk
SIS MOVE Workstation Description:
Ideal for touch down and small workstation areas meant to support multiple operators each hour, day or week. Move makes sit-to-stand performance even more affordable. Choose among several corner and rectilinear shapes and sizes that support different workers, equipment or office space needs. Move tables ship flat packed to reduce freight costs and are easy to assemble.
SIS MOVE Crank Single Surface Desk Description:
The move crank tables are designed to meet a user seated adjustability needs at an economical price range. The durable steel frame and feet are manufactured in 14 gauge oval tube with welded construction. Each upright leg encapsulates an individual worm gear mechanism that is transversed by a high performance self-lubricating bicycle chain for operation. The crank handle is top mounted by the user to maintain a neutral wrist position during raising or lowering. The only cross member is cantilevered to the rear of the frame and covered with a rubber material for additional use as a foot rest. All tables are cycle tested and static load tested to meet or exceed the required ANSI-Bifma standards.
|
|
|
|
MOVE Crank Table Specification Guide:
|
|
Adjustment:
|
Crank
|
|
Height Range:
|
Single Surface: 23" - 35.5"
|
|
Weight Load:
|
400 lb static weight load
220 lb operational load on CRANK
|
|
Leg Style:
|
Cantilevered 2 leg (crank)
|
|
Upgrades:
|
Casters, leg mounted CPU holder, computer shelf and voice data receptacles
|
|
Assembly:
|
5mm allen wrench
|
|
|
|
|
Option 1: Choose your Surface Dimensions (Actual Size):
|
|
Model 1610 - 33" W x 24" D x 23" - 35.5" H, Weight - 56 lbs Surface Dimensions
|
|
Model 1611 - 39" W x 24" D x 23" - 35.5" H, Weight - 60 lbs Surface Dimensions
|
|
Model 1616 - 58" W x 24" D x 23" - 35.5" H, Weight - 80 lbs Surface Dimensions
|
|
|
|
|
Option 2: Crank Handle:
|
|
On Top-Right Side
(The handle is removable and inserts in a hole of the right side of the table top)
Crank Operation: Low profile corrugated steel channel spans horizontally under the surface and houses a crank controlled self-lubricating chain for smooth adjustment.
|
|
|
|
|
Option 3: Choose your Base Frame Color:
|
|
12 Charcoal
|
18 Aluminum
|
|
|
|
|
Option 4: Choose your Laminate Top Color:
Important Note (Disclaimer): Color representation may vary by individual computer monitor from the actual final laminate product or edge treatment color. For maximum fidelity, please order a sample to ensure proper color match. Custom laminate finishes from other manufacturers available. Additional charges may apply. Please contact CustomerService@Ergodirect.com for price quotation.
|
|
SL10
Kensington Maple
|
SL11
Wild Cherry
|
SL12
River Cherry
|
SL13
New Age Oak
|
SL14
White Nebula
|
|
SL15
Fashion Gray
|
SL16
White Tigris
|
SL17
Silicon EV
|
SL18
Nickel EV
|
SL19
Tungsten EV
|
|
SL20
Natural Tigris
|
SL21
Shadow
|
SL22
Desert Zephyr
|
SL23
Canyon Zephyr
|
SL24
North Sea
|
|
|
SL25
Carbon ev
|
SL26
Twilight Zephyr
|
SL27
Morro Zephyr
|
|
|
|
|
|
Option 5: Edge Treatments:
|
|
ED11
Charcoal
|
ED12
Light Gray
|
ED13
Birch
|
ED14
Graphite
|
ED15
North Sea
|
|
|
ED16
Fusion Maple
|
ED17
Storm
|
|
|
|
|
|
|
Option 6: Casters:
|
|
The following caster is available:
|
|
|
|
|
|
Option 7: Wire Management:
|
|
Universal vertical spine keeps cords and wires held neatly in place, weighted floor base. Universal twist ties are black with silver ends; includes 5 per package. Available in black only.
|
Model
|
Description
|
|
6630002
|
Cyclical slinky channel (10" W x 10" D x 60" H)
|
|
6630001
|
Slinky wire kit: 3 rails, 12 clips
|
|
4960
|
Wire twist tie (Weight: 1 lb)
|
|
Model 4960
|
Model 663002
|
|
|
|
Literature (Please open the following documents for more technical information)
|
|
|
|
|
|
|
|
|
| Model |
1610 or 1611 or 1616 |
| Manufacturer |
SIS |
| Part Number |
1610 or 1611 or 1616 |
| Desk Type |
Crank Desks |
| Desktop Shape |
Kidney Shaped Top |
