Ideal for touch down and small workstation areas meant to support multiple operators each hour, day or week. Move makes sit-to-stand performance even more affordable. Choose among several corner and rectilinear shapes and sizes that support different workers, equipment or office space needs. Move tables ship flat packed to reduce freight costs and are easy to assemble.
SIS MOVE Spring WorkcenterDescription:

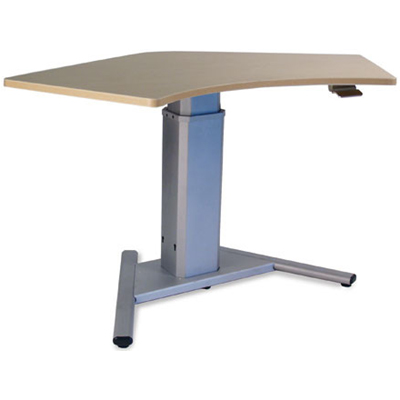

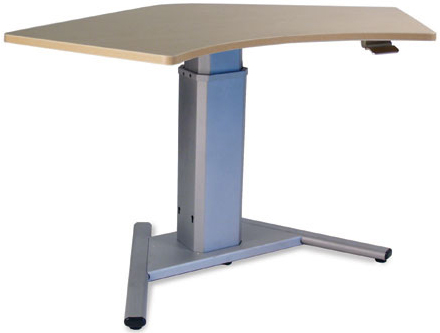

The single octagonal column Move spring table is created with durable steel with welded construction. Ease of movement during the transition from sit to stand range is enhanced and stabilized with eight roller bearings along the central shaft. The immediate response version is driven by two leaf springs creating linearity at all positions along the travel whether raising or lowering.
All tables are cycle tested and static load tested to meet or exceed the required ANSI-Bifma standards.
MOVESpring Table Specification Guide:
Single Surface: 26" - 45"
400 lb static weight load
30 lb equipment load on Spring
Single column V-base
Casters, leg mounted CPU holder, computer shelf and voice data receptacles
Model 1626 - 36" W (A) x 38" W (C) x 24" D (B) x 26" - 45" H, Weight - 90 lbs Surface Dimension
Model 1627 - 42" W (A) x 49" W (C) x 24" D (B) x 26" - 45" H, Weight - 94 lbs Surface Dimension
Option 2:Spring Operation:
Spring Operation: Gas spring to perform a braking function and lock out operation if the table weight is overloaded. The same mechanism also works as the dampener to provide soft starts and stops anywhere along the column or at full top or bottom position.
Option 3:Choose yourBase Frame Color:
Option 4:Choose yourLaminate Top Color:
Important Note (Disclaimer): Color representation may vary by individual computer monitor from the actual final laminate product or edge treatment color. For maximum fidelity, please order a sample to ensure proper color match. Custom laminate finishes from other manufacturers available. Additional charges may apply. Please contact CustomerService@Ergodirect.com for price quotation.
New Age Oak
Option 5:Edge Treatments:
The following caster is available:
Black 3" Non Locking Casters for Spring and Electric Tables (set of 6) Weight - 125 lb/set
Option 7:CPU Holder:
CPU Holder mounts to 3 locations on move column, maximum load weight 30 lbs (Spring and electric only).
CPU Holder (10" W x 12.75" D), Weight - 6 lbs
Option 8:Wire Management:
Universal vertical spine keeps cords and wires held neatly in place, weighted floor base. Universal twist ties are black with silver ends; includes 5 per package. Available in black only.
Cyclical slinky channel (10" W x 10" D x 60" H)
Slinky wire kit: 3 rails, 12 clips
Wire twist tie (Weight: 1 lb)
Literature(Please open the following documents for more technical information)
