SIS Move 1623 or 1624 Spring Kidney Organic V-Base Height Adjustable Ergonomic Desk
SIS MOVE Height Adjustable Workstation Description:
Ideal for touch down and small workstation areas meant to support multiple operators each hour, day or week. Move makes sit-to-stand performance even more affordable. Choose among several corner and rectilinear shapes and sizes that support different workers, equipment or office space needs. Move tables ship flat packed to reduce freight costs and are easy to assemble.
SIS MOVE Spring Workcenter Description:

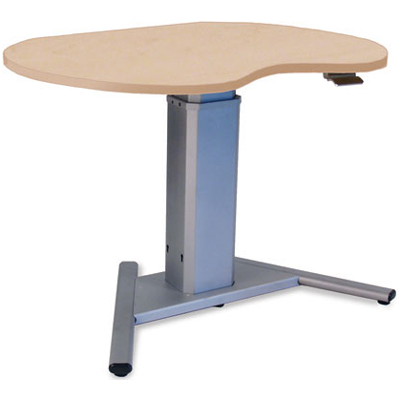

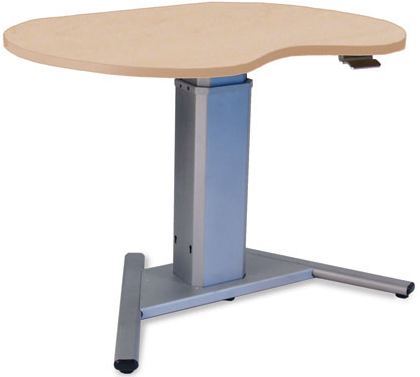

The single octagonal column Move spring table is created with durable steel with welded construction. Ease of movement during the transition from sit to stand range is enhanced and stabilized with eight roller bearings along the central shaft. The immediate response version is driven by two leaf springs creating linearity at all positions along the travel whether raising or lowering.
All tables are cycle tested and static load tested to meet or exceed the required ANSI-Bifma standards.
|
|
|
|
MOVE Spring Table Specification Guide:
|
|
Adjustment:
|
Spring
|
|
Height Range:
|
Single Surface: 26" - 45"
|
|
Weight Load:
|
400 lb static weight load
30 lb equipment load on Spring
|
|
Leg Style:
|
Single column V-base
|
|
Upgrades:
|
Casters, leg mounted CPU holder, computer shelf and voice data receptacles
|
|
Assembly:
|
5mm allen wrench
|
|
|
|
|
Option 1: Choose your Surface Dimensions (Actual Size):
|
|
Model 1623 - 39" W x 26" D x 26" - 45" H, Weight - 90 lbs Surface Dimension
|
|
Model 1624 - 45" W x 28" D x 26" - 45" H, Weight - 95 lbs Surface Dimension
|
|
|
|
|
Option 2: Spring Operation:
|
|
Spring Operation: Gas spring to perform a braking function and lock out operation if the table weight is overloaded. The same mechanism also works as the dampener to provide soft starts and stops anywhere along the column or at full top or bottom position.
|
|
|
|
|
Option 3: Choose your Base Frame Color:
|
|
12 Charcoal
|
18 Aluminum
|
|
|
|
|
Option 4: Choose your Laminate Top Color:
Important Note (Disclaimer): Color representation may vary by individual computer monitor from the actual final laminate product or edge treatment color. For maximum fidelity, please order a sample to ensure proper color match. Custom laminate finishes from other manufacturers available. Additional charges may apply. Please contact CustomerService@Ergodirect.com for price quotation.
|
|
SL10
Kensington Maple
|
SL11
Wild Cherry
|
SL12
River Cherry
|
SL13
New Age Oak
|
SL14
White Nebula
|
|
SL15
Fashion Gray
|
SL16
White Tigris
|
SL17
Silicon EV
|
SL18
Nickel EV
|
SL19
Tungsten EV
|
|
SL20
Natural Tigris
|
SL21
Shadow
|
SL22
Desert Zephyr
|
SL23
Canyon Zephyr
|
SL24
North Sea
|
|
|
SL25
Carbon ev
|
SL26
Twilight Zephyr
|
SL27
Morro Zephyr
|
|
|
|
|
|
Option 5: Edge Treatments:
|
|
ED11
Charcoal
|
ED12
Light Gray
|
ED13
Birch
|
ED14
Graphite
|
ED15
North Sea
|
|
|
ED16
Fusion Maple
|
ED17
Storm
|
|
|
|
|
|
|
Option 6: Casters:
|
|
The following caster is available:
|
Model
|
Description
|
|
8998
|
Black 3" Non Locking Casters for Spring and Electric Tables (set of 6) Weight - 125 lb/set
|
Model 8998
|
|
|
|
|
|
Option 7: CPU Holder:
|
|
CPU Holder mounts to 3 locations on move column, maximum load weight 30 lbs (Spring and electric only).
|
Model
|
Description
|
|
3800
|
CPU Holder (10" W x 12.75" D), Weight - 6 lbs
|
Model 3800
|
|
|
|
|
|
Option 8: Wire Management:
|
|
Universal vertical spine keeps cords and wires held neatly in place, weighted floor base. Universal twist ties are black with silver ends; includes 5 per package. Available in black only.
|
Model
|
Description
|
|
6630002
|
Cyclical slinky channel (10" W x 10" D x 60" H)
|
|
6630001
|
Slinky wire kit: 3 rails, 12 clips
|
|
4960
|
Wire twist tie (Weight: 1 lb)
|
|
Model 4960
|
Model 663002
|
|
|
|
Literature (Please open the following documents for more technical information)
|
|
|
|
|
|
|
|
|
