We are sorry but item below has been discontinued.

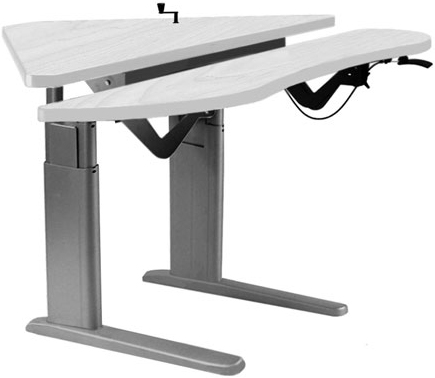

SIS Xtreme Crank Corner Duplex Bilevel Surface Height Adjustable Ergonomic Table

24.25" - 52.25" sit-to-stand height range. 18.5" - 57.5" keyboard height range. 12” keyboard depth. Available in 3mm PVC edging only.
Be the first to review this product
Product ID: 16259
Recommended Accessories
List Price: $2,283.00
Our Price: $2,039.13
You Save: $243.87
Shipping: $0.00 * See delivery options below
Usually ships in 4 to 6 weeks
* applies to Contiguous United States

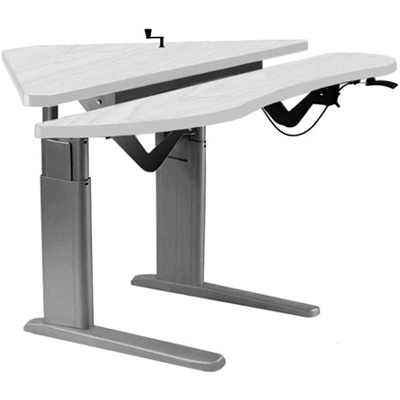

SIS Xtreme 8852 or 8855 or 8854 or 8853 Crank Corner Duplex Bilevel Surface Height Adjustable Table



General Information





SIS Xtreme 8852 or 8855 or 8854 or 8853 Crank Corner Bi-level Surface Height Adjustable Ergonomic Desk



SIS Xtreme Crank Corner Bi-level Surface Height Adjustable Ergonomic Desk





SIS Xtreme Height Adjustable Workstation Description:

Xtreme collection of crank and electric tables is available in all sizes including cornerflex configurations. Conversion from crank to electric of installed models is available through unique “Beam Buyback Program.” All tables are life tested to ANSI BIFMA standards utilizing the prescribed weight load. The crank version permits a 5th percentile female worker to adjust the tables from a seated position with a minimum sustained force. Sit to stand collection of crank and electric tables available in all sizes.



Generation IV xtreme workstations are available with single or dual surface tops when fitted with spring adjustable keyboard units. Workstation designs include rectilinear models from 30” to 72”, 42” and 48” corners, 72” corner combi’s and full oversized cornerflex units.



Generation IV computer support furniture adjusts to serve everyone. They meet or exceed all existing domestic and international standards for safety, durability and ergonomics.



Generation IV xtreme is distinctive in its exceptional range of motion. Adjusting quickly and easily from a sitting to standing position, it is the ideal computer solution for all office applications and especially those demanding advanced ergonomics and extensive flexibility.



  • Available as full tables or frames that can be integrated with new or existing work surfaces.

  • High durability and vertical horizontal integrity are assured through the use of steel constructed frames.

  • Easy-glide casters are available for quick table re-arrangement or casual task groupings.

  • Perforated privacy and modesty panels can be added for open space office concepts.



Spring adjustable keyboard mechanisms convert single surfaces to a duplex, dual surface workstation. The keyboard platform adjusts ± 6” with a simple squeeze on the paddle and tilts ± 15˚.



Unique support “beam” and leg design can be easily reconfigured to promote extreme flexibility. For example, a 72” workstation can be easily converted to a 42” corner table simply by changing the beam and tabletop. Add an additional leg to the extra beam to create another workstation.



Electric motor smoothly raises and lowers the surface from 24.5” to 51.5” at the rate of 3.5 inches per second.



Generation IV xtreme workstations can accommodate users of varying sizes including petite, medium and tall, and is available in electric or manual crank models. Each xtreme workstation has these features and more:



  • Perfect balance is maintained even when fully loaded up to 200 lbs. of computer equipment.

  • Tapered foot reduces obstruction.

  • Crank handle is conveniently located to minimize interference with adjacent walls or other work surfaces.

  • Standard sizes fit into common panel environment schemes: 24” and 30” depths and 36”, 48”, 60” and 72” widths fit most work environments.

  • Custom sizes available.

  • Wire grommets available in the back of each workstation - you can choose the location.

  • Combines well with generation IV basix to create a total office environment for private offices and open spaces.



SIS Xtreme Crank Corner Bilevel Surface Table Description:

Bilevel Xtreme corner crank table adjusts from sit to stand by surface accessed crank handle on monitor surface and paddle on keyboard surface. Keyboard adjusts 6" above and 5 3/4" below monitor and angles. Includes horizontal wire management.





Xtreme Duplex Operation:

All duplex tables have been designed with a front surface width that comfortably supports an extended keyboard and mouse (or other pointing device). The spring height adjustable keyboard mechanism attaches to the VDT/FPD surface and positions for easy operator use via cable release paddle and tilt knob.



SIS Xtreme Duplex Operation





Wire Management:

All Xtreme tables also come standard with integrated wire trough for horizontal wire management.



SIS Xtreme Wire Management

Standard through





Xtreme Crank Corner Bilevel Surface Table Specification:

Adjustment:

Crank

Height Range:

Bilevel Surface Crank: 24.25" - 52.25"

Maximum Weight Load:

175 lbs load duplex surfaces

Leg Style:

Cantilevered leg

Upgrades:

Programmable switch, crank to electric beam conversion, custom horizontal wire channel (with/without power distribution), casters

Assembly:

4 & 5mm Allen wrench (supplied)

Phillips screw driver



Option 1: Choose your Surface Dimensions (Actual Size):

SIS Xtreme Duplex Corner Bilevel Surface Diagram

Model 8852 - 41.5" W x 24" D x 24.25" - 52.25" H, Weight - 172 lbs Surface Dimensions

Width: 41.5" corner (41.5"(A), 24.75"(C))

Depth: 24" return (24"(B), 41.5"(D))



Keyboard Dimensions:

Height: +6"/-5.75"

Depth: 12"

Tilt: +9º/- 15º



Model 8855 - 47.5" W x 24" D x 24.25" - 52.25" H, Weight - 169 lbs Surface Dimensions

Width: 47.5" corner (47.5"(A), 33.25"(C))

Depth: 24" return (24"(B), 47.5"(D))



Keyboard Dimensions:

Height: +6"/-5.75"

Depth: 12"

Tilt: +9º/- 15º



Model 8854 - 41.5" W x 30" D x 24.25" - 52.25" H, Weight - 174 lbs Surface Dimensions

Width: 41.5" corner (41.5"(A), 16.25"(C))

Depth: 30" return (30"(B), 41.5"(D))



Keyboard Dimensions:

Height: +6"/-5.75"

Depth: 12"

Tilt: +9º/- 15º



Model 8853 - 47.5" W x 30" D x 24.25" - 52.25" H, Weight - 176 lbs Surface Dimensions

Width: 47.5" corner (47.5"(A), 30"(C))

Depth: 30" return (33.5"(B), 47.5"(D))



Keyboard Dimensions:

Height: +6"/-5.75"

Depth: 12"

Tilt: +9º/- 15º





Option 2: Crank Handle:



SIS Xtreme Crank Handle

On Top-Right Side of Monitor Surface



Crank Handle: Crank handle permits smooth easy adjustments at 3.25 revolutions per inch. Crank handle is conveniently located to minimize interference with adjacent walls or other work surfaces.

One crank height control worm gear mechanism (in right leg upright) and 7mm hex head fitting for crank handles. Crank handles are positioned on the right at a location where the rotation of the handle and user’s hand are free from obstructions (adjacent surface, panels or walls). Four turns per inch adjustment ratio.





Option 3: Choose your Base Frame Color:



Base Frame Color - 12 Charcoal

12 Charcoal





Base Frame Color - 18 Aluminum

18 Aluminum





Option 4: Choose your Laminate Top Color:



Laminate Top color - SL10 Kensignton Maple

SL10

Kensington Maple



Laminate Top Color - SL11 Wild Cherry

SL11

Wild Cherry



Laminate Top Color - SL12 River Cherry

SL12

River Cherry



Laminate Top Color - Sl13 New Age Oak

SL13

New Age Oak



Laminate Top Color - SL14 White Nebula

SL14

White Nebula



Laminate Top Color - Sl15 Fashion Gray

SL15

Fashion Gray



Laminate Top Color - SL16 White Tigris

SL16

White Tigris



Laminate Top Color - SL17 Silicon EV

SL17

Silicon EV



Laminate Top Color - SL18 Nickel EV

SL18

Nickel EV



Laminate Top Color - SL19 Tungsten EV

SL19

Tungsten EV



Laminate Top Color - SL20 Natural Tigris

SL20

Natural Tigris



Laminate Top Color - SL21 Shadow

SL21

Shadow



Laminate Top Color - SL22 Desert Zephyr

SL22

Desert Zephyr



Laminate Top Color - SL23 canyon Zephyr

SL23

Canyon Zephyr



Laminate Top Color - SL24 North Sea

SL24

North Sea





Laminate Top Color - SL25 carbon EV

SL25

Carbon ev



Laminate Top Color - SL26 Twilight Zephyr

SL26

Twilight Zephyr



Laminate Top Color - Sl27 Morro Zephyr

SL27

Morro Zephyr





Option 5: Edge Treatments:



Edge Color - ED11 Charcoal

ED11

Charcoal





Edge Color - ED12 Light Grey

ED12

Light Gray





Edge Color - ED13 Birch

ED13

Birch





Edge Color - ED14 Graphite

ED14

Graphite





Edge Color - ED15 North Sea

ED15

North Sea









Edge Color - ED16 Fusion Maple

ED16

Fusion Maple



Edge Color - ED17 Storm

ED17

Storm







Option 6: Casters:



The following caster is available:



  • 8027: Xtreme 3" Locking Casters (set of four) two tone grey.

SIS Xtreme 3" Locking Casters



Literature (Please open the following documents for more technical information)

Description

File Type

SIS Xtreme Laminate, Edge and Frame Color Options

- pdf



SIS Logo



Hyperlink of all SIS products





Model 8852 or 8855 or 8854 or 8853
Manufacturer SIS
Part Number 8852 or 8855 or 8854 or 8853
Desk Type Crank
Desktop Shape Corner
