We are sorry but item below has been discontinued.

Chief KITMSTU522 Medium Thinstall Flat Panel Fixed Mounting Kit

This Kit includes one Thinstall MSTU Fixed Mount and one PAC522 Flat Panel Pre-Wire In-Wall Box
Be the first to review this product
Product ID: 16268
List Price: $219.00
Our Price: $144.00
You Save: $75.00
Shipping: $10.00 *
Usually ships in 1 to 2 business days
* applies to Contiguous United States





Chief KITMSTU522 Thinstall Flat Panel Fixed Mounting Kit for 26-47" Display



General Information



Image of Warranty and Returns





Nationwide Delivery Image

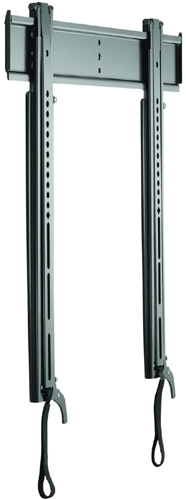

Chief KITMSTU522 Thin stall Flat Panel Fixed Mounting Kit for 26" to 47" Displays



Chief KITMSTU522 Thin stall Flat Panel Fixed Mounting Kit for 26" to 47" Displays









Features of Chief KITMSTU522:

    1.  Kit includes Thinstall MSTU Fixed Mount and PAC522 Flat Panel Pre-Wire In-Wall Box.



    2.  Ultra-thin depth, less than the width of a penny.



    3.  GlideLock provides tool-less latching for faster installation.



    4.  Provides lateral shift for increased flexibility.



    5.  Features a cable stand and bottom pullout for cable access.



    6.  In-wall box provides an organized, recessed space for routing excess cables and for attaching

         surge protectors/power conditioners.



    7.  NOTE: Check with flat panel manufacturer to ensure your particular TV can be installed 0.4"

         from wall.

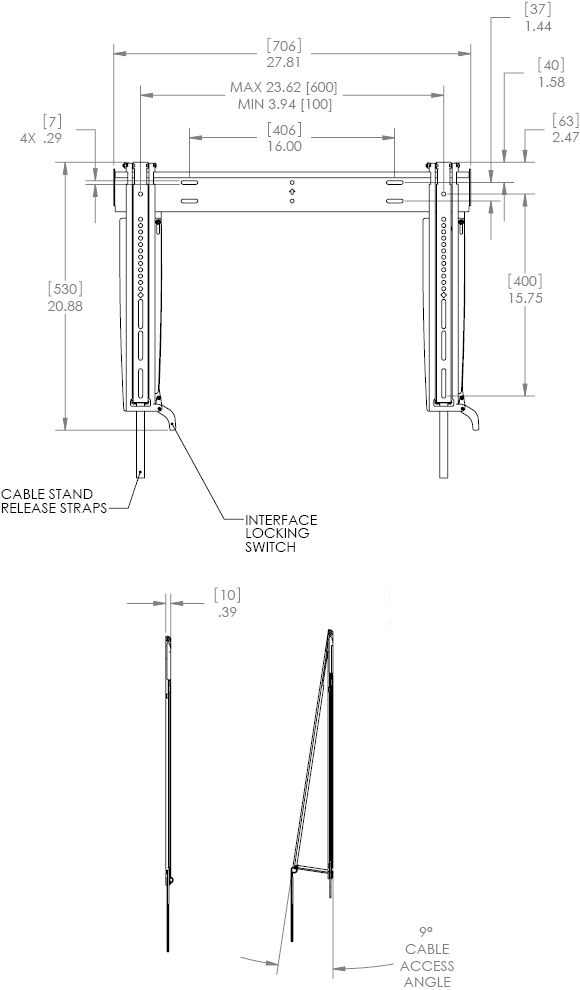

Technical Drawing for Chief MSTU Thinstall Fixed Wall Mount for 26"-47" Displays



Technical Drawing for Chief MSTU Thinstall Tilt Wall Mount for 26"-47" Displays





Technical Drawing for Chief PAC522 Flat Panel Pre-Wire In-Wall Box



Technical Drawing for Chief PAC522 Flat Panel Pre-Wire In-Wall Box









Description of Chief KITMSTU522 Thinstall:

Simplify ordering and installation with this preconfigured flat panel mounting kit. Kit includes: (1) MSTU and (1) PAC522.







Specifications:

Depth from Wall:

0.39" (10 mm)

Hold Pattern:

100 x 100 mm to 600 x 400 mm

Weight Capacity:

125 lbs (56.7 kg)

Maximum Screen Thickness:

5" (127 mm)

Color:

Black







Literature (Please open the following documents for more technical information)

Description

File Type

Chief MSTU Thinstall Flat Panel Fixed Wall Mount for 26" to 47" Displays - Installation

- pdf

Chief MSTU Thinstall Universal Flat Panel Fixed Wall Mount - Technical Drawing

- pdf

Chief PAC522 Flat Panel Pre-Wire In-Wall Box - Installation Assembly

- pdf

Chief PAC-522 Flat Panel Pre-Wire In-Wall Box - Technical Drawing

- pdf
