Chief PAC522 Flat Panel Pre-Wire In-Wall Box

Be the first to review this product
Product ID: 16276
List Price: $61.00
Our Price: $38.40
You Save: $22.60
Shipping: $0.00 *  - Free Ground Shipping
Usually ships in 1 to 2 business days
* applies to Contiguous United States

Chief PAC522 Flat Panel Pre-Wire In-Wall Box PAC 522



Chief PAC522 Flat Panel Pre-Wire In-Wall Box







Features of Chief PAC-522:

    1. Can be used with new construction.



    2.  Installs horizontally between 16” centers or vertically on a single stud.



  3.  Includes knockouts for metal retrofit, single gang junction boxes.



4.  UL Listed.



    5.  See the PAC501, MAC501 or FAC501 for In-Wall Swing Arm Accessories.

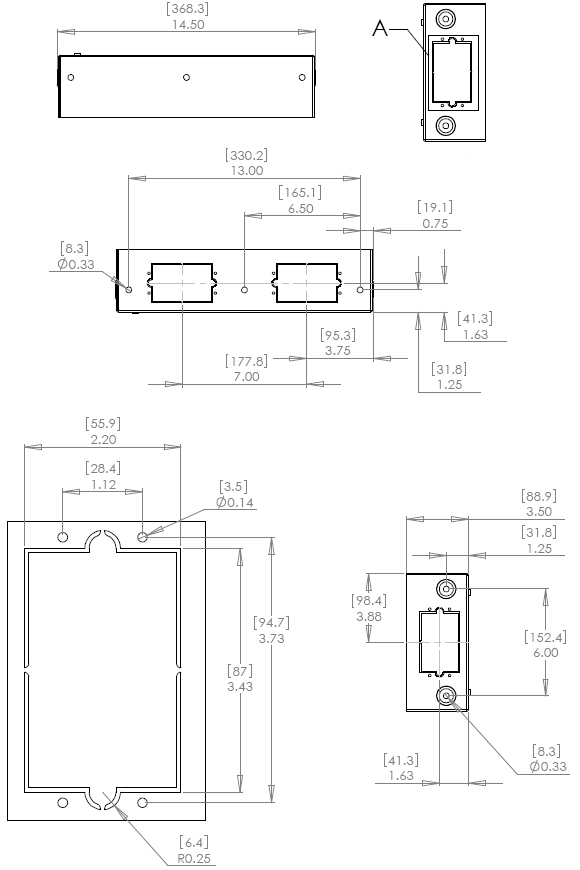

Technical Drawing for Chief PAC522 Flat Panel Pre-Wire In-Wall Box

Technical Drawing for Chief PAC522 Flat Panel Pre-Wire In-Wall Box







Description of Chief PAC522:

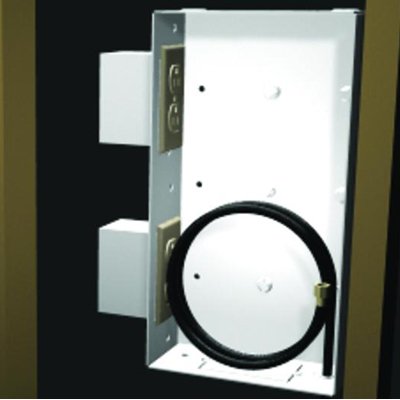

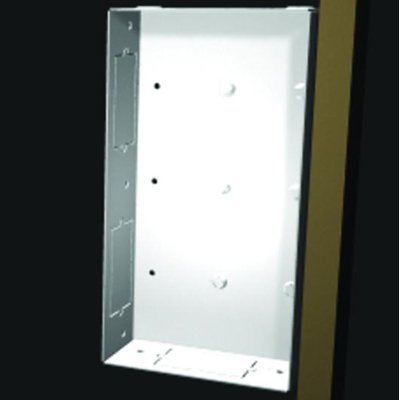

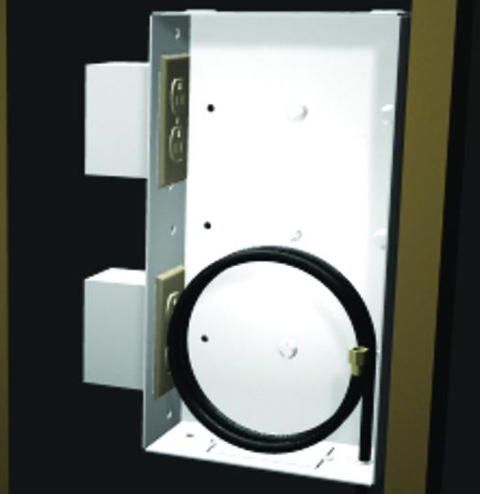

The PAC522 simplifies plasma TV installation by providing an organized, recessed space for routing excess cables and for attaching surge protectors/power conditioners.



  • Compatible with the PST, PRO, PLP, MSR, MTR, MWH, MWR, PWR, PNR, PDR

  • Chief also offers the PAC521P in-wall box with built-in power conditioner.



Specifications:

Box Cutout Dimensions (H x W x D):

7.5" x 14.5" x 3.5" (191 x 368 x 89 mm)

Color:

White




Model PAC522
Manufacturer Chief Mounts
Part Number PAC522
UPC 841872123066
Color White
Overall Dimensions (H x W x D) 7.8" x 14.5" x 3.5" (197 x 368 x 89mm)
Shipping Weight 7.00 lbs

Be the first to review this product

Chief PAC522 Flat Panel Pre-Wire In-Wall Box
