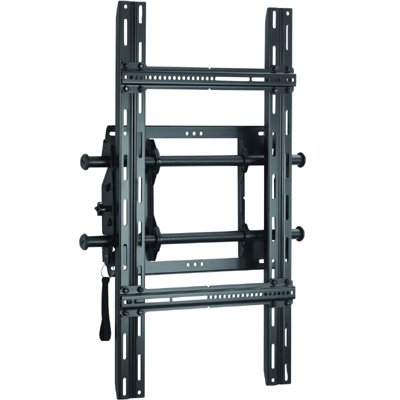

Chief LTAPU Large FUSION Portrait Tilt Video Wall Mount (37-63")

Be the first to review this product
Product ID: 16326
List Price: $259.00
Our Price: $189.60
You Save: $69.40
Shipping: $13.00 *
Usually ships in 1 to 2 business days
* applies to Contiguous United States





Chief LTAPU FUSION Flat Panel Portrait Tilt Video Wall Mount (37"-63")



General Information



Image of Warranty and Returns





Nationwide Delivery Image

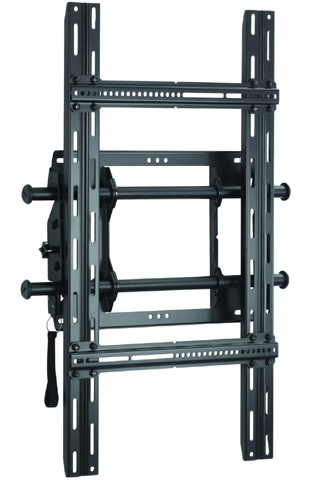

Chief LTAPU FUSION Flat Panel Portrait Tilt Video Wall Mount (37"-63" Displays)



Chief LTAPU FUSION Flat Panel Portrait Tilt Video Wall Mount (37"-63" Displays)









Features of Chief LTAPU:

    1.  Portrait installation enables vertical positioning of the flat panel display.



    2.  Centris low-profile tilt uses the center of gravity to balance the screen while maintaining a low

         profile.



    3.  Centerless Shift provides of post-installation lateral shift for limitless centering.



    4.  Centerless Shift provides up to 11.5" (292 mm) of post-installation lateral shift - 5.75" (146

         mm) left/right of uprights - for limitless centering.



    5.  Built-in cable stand provides easy access under the screen.



    6.  A full line of accessories can be installed with the mount and the entire unit can be adjusted

         together.



    7.  Provides integrated security, just add a padlock.









Technical Drawing for Chief LTAPU FUSION Portrait Tilt Video Wall Mount



Technical Drawing for Chief LTAPU FUSION Portrait Tilt Video Wall Mount







Description of Chief LTAPU:

This installer-inspired tilt mount solves top flat panel installation problems, offering perfect TV positioning and flexible adjustments with a portrait installation for large flat panel screens.



  • Portrait installation, ideal for digital signage applications

  • Provides low profile, fingertip tilt





Specifications:

Depth from Wall:

2.56" (63 mm)

Tilt:

0 - 10.5 degree (varies with screen height)

Max Lateral Shift:

5.25" (133 mm)

Mounts on Studs:

16" on center studs

Mounting Pattern:

200 x 200 mm to 800 x 525 mm

Dimensions (H x W x D):

13.5" x 22.44" x 2.75" (343 x 570 x 70 mm)

Weight Capacity:

200 lbs (90.7 kg)

Color:

Black





Literature (Please open the following documents for more technical information)

Description

File Type

Chief LTAPU FUSION Portrait Tilt Video Wall Mount - Installation Assembly

reader-14.jpg - pdf

Chief LTAPU FUSION Flat Panel Tilt Video Wall Mount - Technical Drawing

reader-14.jpg - pdf











Chief Logo



Hyperlink of all Chief products



Model LTAPU
Manufacturer Chief Mounts
Part Number LTAPU
Mounting Options Wall
