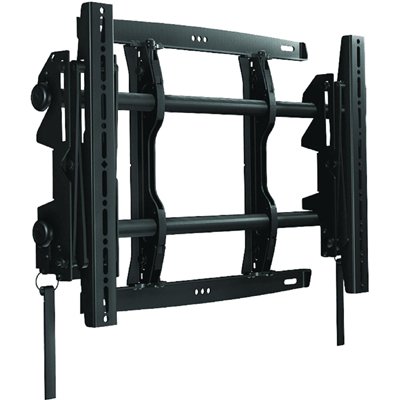

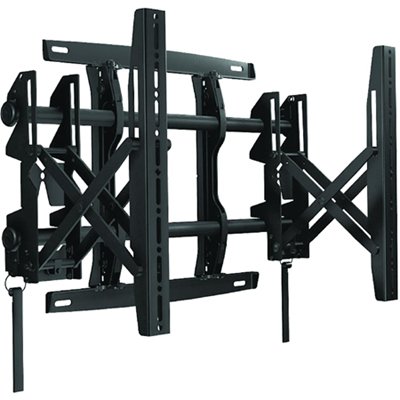

Chief MSMVU Medium FUSION Micro-Adjustable Pull-Out Wall Mount

Be the first to review this product
Product ID: 16338
List Price: $539.00
Our Price: $384.80
You Save: $154.20
Shipping: $25.00 *
Usually ships in 1 to 2 business days
* applies to Contiguous United States
Add to Cart

Description

Chief MSMVU mount is great for video wall applications, offering easy installation and maintenance for multiple screens.



Technical Drawing

Technical Drawing for Chief MSMVU FUSION Pull-Out Video Wall Mount



Specifications

Certifications

UL Listed

Color

Black

Lateral Shift

14.5" (368 mm)

Manual Height Adjustment

1"

Maximum Extension

10.7" (272 mm)

Minimum Depth

3.7" (94.mm)

Mounting Pattern Compatibility (Universal Versions)

100 x 100mm - 540 x 400mm

Orientation

Landscape

Overall Dimensions (H x W x D)

16.5" x 25.5" x 3.7" (419 x 648 x 94mm)

Plumb Adjustment

2.5 degrees

Post-Installation Leveling (Roll)

Yes

Shipping Weight

27.70 lbs

Solution Type

Universal

Typical Screen Sizes

26 - 47"

Wall Stud Compatibility (inches)

16"

Weight Capacity

125 lbs (56.7kg)



Features

  • ControlZone Leveling provides post-installation fine tuning of height and leveling for a seamless installation
  • Centerless Shift provides post-installation lateral shift to easily slide screens apart or together for easy maintenance and perfect alignment
  • ClickConnect offers an audible click when the screen safely engages with the mount
  • Allows fine-tuning plumb adjustment to ensure screens are perfectly vertical for a seamless install, can be used to compensate for walls that are not perfectly flat
  • Built-in cable stand provides easy access under the screen
  • Provides integrated security, just add a padlock
  • Great for single display recessed applications and 2 X 2 video walls
Model MSMVU
Manufacturer Chief Mounts
Part Number MSMVU
UPC 841872143385
Mounting Options Wall
Color Black
Lateral Shift 14.5" (368 mm)
Manual Height Adjustment 1"
Maximum Extension 10.7" (272 mm)
Minimum Depth 3.7" (94 mm)
Mounting Pattern 100 x 100mm - 540 x 400mm
Overall Dimensions (H x W x D) 16.5" x 25.5" x 3.7" (419 x 648 x 94mm)
Plumb Adjustment 2.5 degrees
Shipping Weight 27.70 lbs
Monitor Size 26 - 47"
Wall Stud 16"
Weight Capacity 125 lbs (56.7kg)
