Chief LTMU Large FUSION Micro-Adjustable Tilt Wall Mount

Be the first to review this product
Product ID: 16340
List Price: $309.00
Our Price: $230.40
You Save: $78.60
Shipping: $15.00 *
Usually ships in 1 to 2 business days
* applies to Contiguous United States





Chief LTMU FUSION Micro Adjustable Tilt Video Wall Mount (37"-63" Display)



General Information



Image of Warranty and Returns





Nationwide Delivery Image

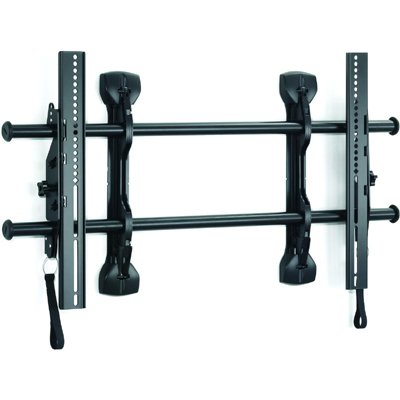

Chief LTMU FUSION Flat Panel Micro Adjustable Tilt Video Wall Mount (37"-63")



Chief LTMU FUSION Flat Panel Micro Adjustable Tilt Video Wall Mount (37"-63")









Features of Chief LTMU:

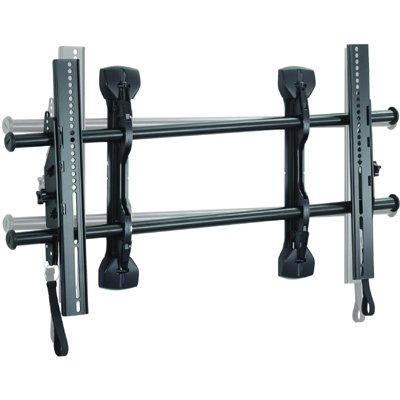

    1.  ControlZone Leveling: Industry first feature allows post-installation fine tuning of height and

         leveling, up to 0.5" (13 mm) adjustment up or down.

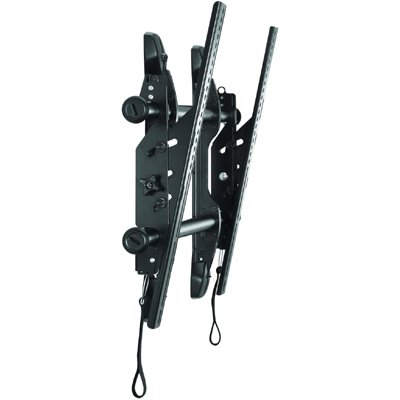

    2.  Centris Low Profile Tilt: Centris fingertip tilt technology uses the center of gravity to balance

         the screen while maintaining a low profile under 2" deep. Screen angle stays set in place until

         readjusted.

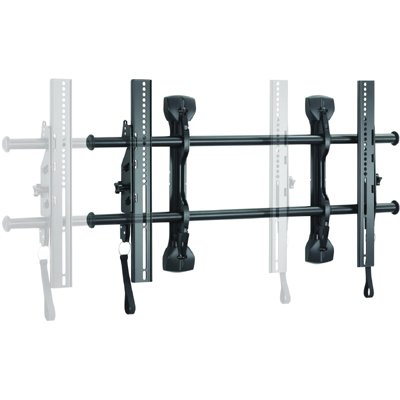

    3.  CenterLess Shift: Provides up to 17.5" of post installation lateral shift - 8.75" left/right of

         uprights - for limitless centering capabilities.



    4.  ClickConnet: Hear an audible click when the screen safely engages with the mount. A built-in

         cable stand provides easy access under the screen.



    5.  Built-in cable stand provides easy access under the screen.

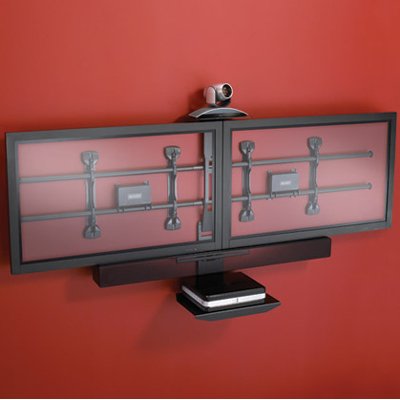

    6.  A full line of accessories can be installed with the mount and the entire unit can be adjusted

         together.



    7.  Provides integrated security, just add a padlock.



    8.  Ships with a custom hardware kit.









Technical Drawing for Chief LTMU FUSION Adjustable Tilt Video Wall Mount



Technical Drawing for Chief LTMU FUSION Adjustable Tilt Video Wall Mount







Description of Chief LTMU:

This installer-inspired tilt mount solves top flat panel installation problems, offering perfect TV positioning and post-installation fine tuning for larger flat panel screens.



  • Provides low profile, fingertip tilt.

  • Easy accessory attachment.





Specifications:

Depth from Wall:

1.99" (51 mm)

Tilt:

- 12 degree

Max Lateral Shift:

17.5" (445 mm)

Height adjustment:

+/-0.5"

Mounts on Studs:

16", 20", 24"

Dimensions (H x W x D):

16.5" x 34.44" x 1.99" (419 x 875 x 51 mm)

Max Mounting Pattern:

Height - 19.9" (506 mm), Width - 35.25" (895 mm)

Weight Capacity:

200 lbs (90.7 kg)

Color:

Black







Frequently Asked Questions:

Q: What size padlock can I use to add security?

A: Use a padlock with maximum diameter of 0.35" (8.9 mm).





Literature (Please open the following documents for more technical information)

Description

File Type

Chief LTMU FUSION Micro Adjustable Tilt Video Wall Mount - Installation Assembly

reader-14.jpg - pdf

Chief LTMU Flat Panel Tilt Video Wall Mount 37"-63" Displays - Technical Drawing

reader-14.jpg - pdf

Chief LTMU FUSION Micro Adjustable Tilt Video Wall Mount - Catalog Page

reader-14.jpg - pdf

Chief FUSION Fixed and Tilt Mounting System Brochure

reader-14.jpg - pdf

Chief Quick Reference Guide

reader-14.jpg - pdf











Chief Logo



Hyperlink of all Chief products



Model LTMU
Manufacturer Chief Mounts
Part Number LTMU
UPC 841872114576
Mounting Options Wall
