Chief XTMU FUSION Micro-Adjustable Tilt Wall Mount (55-82")

Be the first to review this product
Product ID: 16341
List Price: $369.00
Our Price: $272.00
You Save: $97.00
Shipping: $20.00 *
Usually ships in 1 to 2 business days
* applies to Contiguous United States





Chief XTMU FUSION Micro Adjustable Tilt Video Wall Mount (55"-75" Display)



General Information



Image of Warranty and Returns





Nationwide Delivery Image

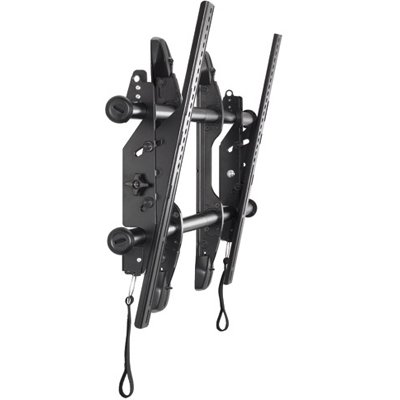

Chief XTMU FUSION Flat Panel Micro Adjustable Tilt Video Wall Mount (55"-75")

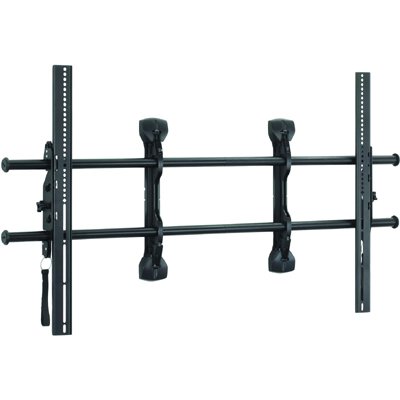

Chief XTMU FUSION Flat Panel Micro Adjustable Tilt Video Wall Mount (55"-75")

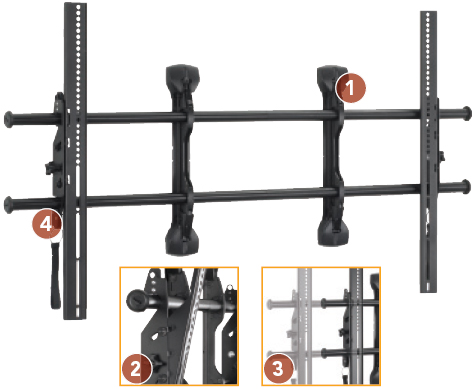

Features of Chief XTMU:

    1.  ControlZone Leveling: Industry first feature allows post-installation fine tuning of height and

         leveling, up to 0.5" (13 mm) adjustment up or down.



    2.  Centris Low Profile Tilt: Centris fingertip tilt technology uses the center of gravity to balance

         the screen while maintaining a low profile under 2" deep. Screen angle stays set in place until

         readjusted.



    3.  CenterLess Shift: Provides up to 23.5" of post installation lateral shift - 11.75" left/right of

         uprights - for limitless centering capabilities.



    4.  ClickConnet: Hear an audible click when the screen safely engages with the mount. A built-in

         cable stand provides easy access under the screen.



    5.  Built-in cable stand provides easy access under the screen.



    6.  A full line of accessories can be installed with the mount and entire unit can be adjusted

         together.



    7.  Ships with a custom hardware kit.

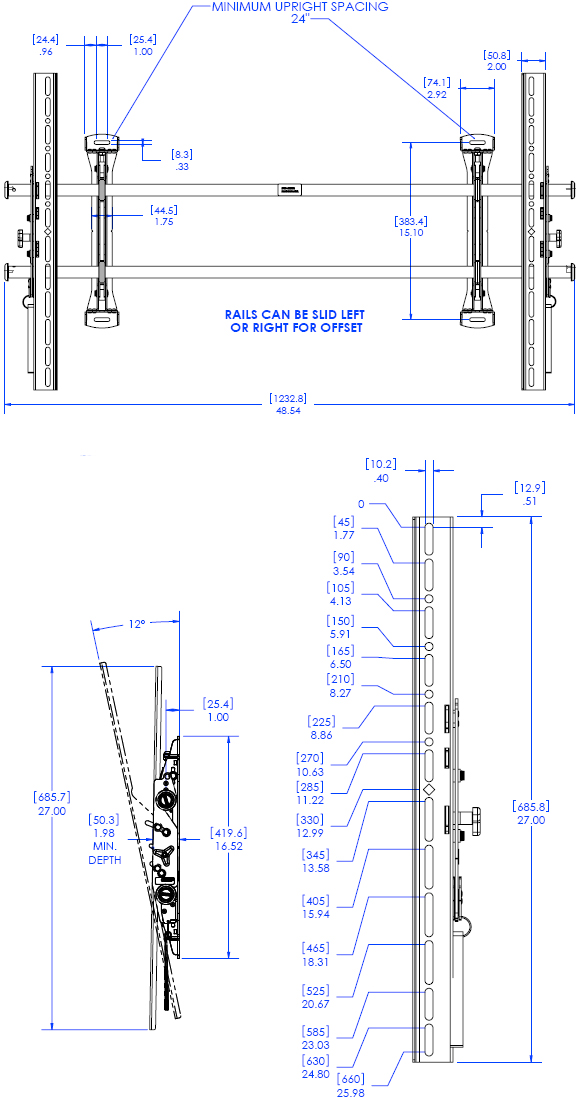

Technical Drawing for Chief XTMU FUSION Adjustable Tilt Video Wall Mount



Technical Drawing for Chief XTMU FUSION Adjustable Tilt Video Wall Mount







Description of Chief XTMU:

This installer-inspired tilt mount solves top flat panel installation problems, offering perfect TV positioning and flexible adjustments for extra large flat panel screens.



  • UL listed.





Specifications:

Tilt:

- 12 degree

Depth from Wall:

1.98" (50 mm)

Max Lateral Shift:

23.5" (597 mm)

Height Adjustment:

+/-0.5"

Mounts on Studs:

24" or 32" on center

Dimensions (H x W x D):

16.5" x 48.44" x 1.99" (42 x 123 x 5 cm)

Max Mounting Pattern:

Height - 26" (660 mm), Width - 49.2" (125 cm)

Min Wall Stud Spacing:

24" (must span 3 studs on 16" on center wall)

Weight Capacity:

250 lbs (113 kg)

Color:

Black





Literature (Please open the following documents for more technical information)

Description

File Type

Chief XTMU FUSION Micro Adjustable Tilt Video Wall Mount - Installation Assembly

reader-14.jpg - pdf

Chief XTMU Flat Panel Tilt Video Wall Mount 26"-47" Displays - Technical Drawing

reader-14.jpg - pdf

Chief XTMU FUSION Micro Adjustable Tilt Video Wall Mount - Catalog Page

reader-14.jpg - pdf

Chief FUSION Fixed and Tilt Mounting System Brochure

reader-14.jpg - pdf

Chief Quick Reference Guide

reader-14.jpg - pdf











Chief Logo



Hyperlink of all Chief products



Model XTMU
Manufacturer Chief Mounts
Part Number XTMU
UPC 841872116808
Mounting Options Wall
