Chief XSMU FUSION Micro-Adjustable Fixed Wall Mount (55-82")

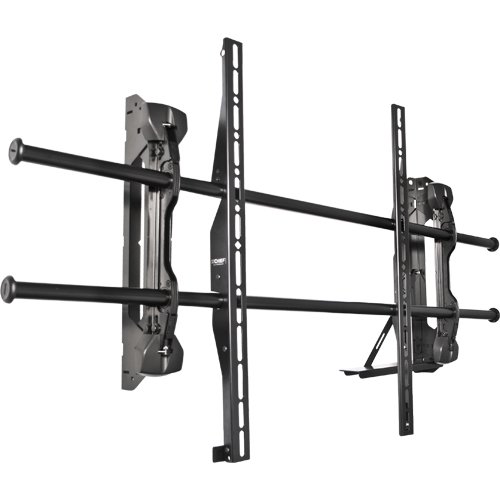

Chief XSMU FUSION Micro-Adjustable Fixed Wall Mount (55-82") click image to enlarge
List Price: $289.00
Our Price: $205.60
You Save: $83.40
Shipping: $0.00 *  - Free Ground Shipping
* applies to Contiguous United States





Chief XSMU FUSION Universal Micro Adjustable Fixed Video Wall Mount

for 55"-75" Displays



General Information



Image of Warranty and Returns





Nationwide Delivery Image

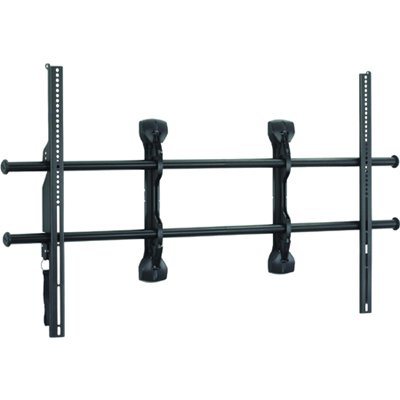

Chief XSMU FUSION Micro Adjustable Fixed Video Wall Mount for 55"-75" Displays



Chief XSMU FUSION Micro Adjustable Fixed Video Wall Mount for 55"-75" Displays









Features of Chief XSMU:

    1.  ControlZone Leveling: Industry first feature allows post-installation fine tuning of height and

         leveling, up to 0.5" (13 mm) adjustment up or down.



    2.  CenterLess Shift: Provides up to 23.5" of post installation lateral shift, 11.75" left/right of

         uprights.



    3.  ClickConnet: Hear an audible click when the screen safely engages with the mount. A built-in

         cable stand provides easy access under the screen.



    4.  Customizable Accessory System: A full line of supporting accessories can be integrated

         with the mount, extending the same adjustment benefits to the entire configuration.



    5.  Multiple Installation Options: Can be installed on 24" on-centers up to 48". For 16" on-

         centers, span 23 studs.



    6.  Built-in cable stand provides easy access under the screen.









Technical Drawing for Chief XSMU FUSION Adjustable Fixed Video Wall Mount



Technical Drawing for Chief XSMU FUSION Adjustable Fixed Video Wall Mount







Description of Chief XSMU:

This installer-inspired fixed mount solves top flat panel installation problems, offering perfect TV positioning and flexible adjustments for extra large flat panel screens.







Specifications:

Depth from Wall:

1.96" (50 mm)

Max Lateral Shift:

23.5" (597 mm)

Height Adjustment:

+/-0.5"

Mounts on Studs:

24" or 32" on center

Dimensions (H x W x D):

16.5" x 48.44" x 1.96" (41.9 x 123 x 5 cm)

Max Mounting Pattern:

Height - 26" (660 mm), Width - 48.2" (122.5 cm)

Min Wall Stud Spacing:

24" (must span 3 studs on 16" on center wall)

Weight Capacity:

250 lbs (113 kg)

Color:

Black







Literature (Please open the following documents for more technical information)

Description

File Type

Chief XSMU FUSION Micro Adjustable Tilt Video Wall Mount - Installation Assembly

reader-14.jpg - pdf

Chief XSMU Flat Panel Tilt Video Wall Mount 26"-47" Displays - Technical Drawing

reader-14.jpg - pdf

Chief XSMU FUSION Micro Adjustable Tilt Video Wall Mount - Catalog Page

reader-14.jpg - pdf

Chief FUSION Fixed and Tilt Mounting System Brochure

reader-14.jpg - pdf

Chief Quick Reference Guide

reader-14.jpg - pdf











Chief Logo



Hyperlink of all Chief products



Model XSMU
Manufacturer Chief Mounts
Part Number XSMU
UPC 841872117256
Mounting Options Wall
