Innovative 9136-S-12 Articulating Flat Panel Mount - 12" Pole

The useable Pole length is 12" but 13.6" is before mount. Monitor weight up to 45 lbs each.
Be the first to review this product
Product ID: 16360
Recommended Accessories
Our Price: $9,999.00  SPECIAL ORDER - call or email for lowest price
Shipping: $0.00 *
Usually ships in 5 to 7 business days
* applies to Contiguous United States



Click on the buttons (1.Vertical Control, 2.Pivot the LCD, 3.Swing the LCD, 4.Tilt Motion) to the right side of the image below to view different movements or Click on the arm to see the complete movement

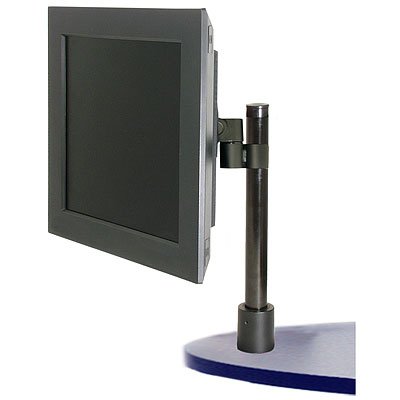

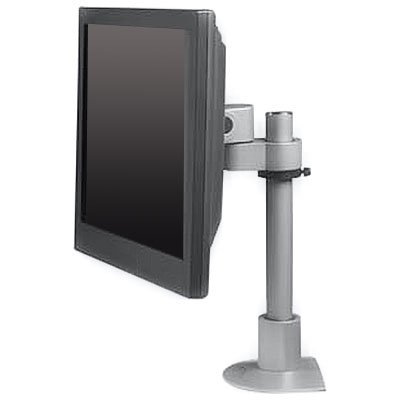

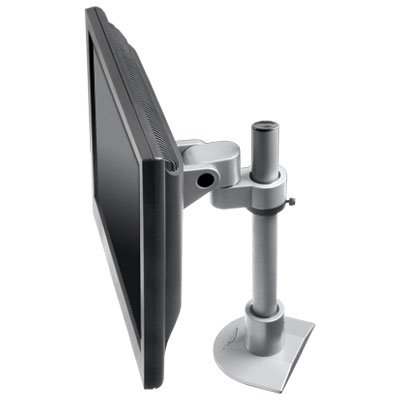

Innovative 9136-S-12-NM Articulating 12" Flat Panel LCD LED Pole Mount

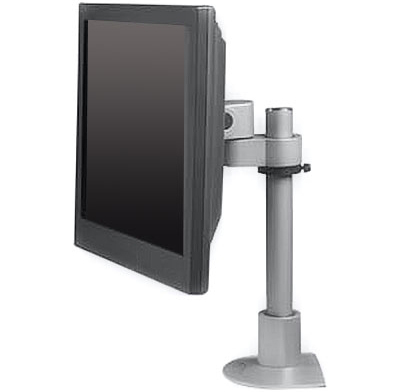

Innovative 9136-S-12-NM Articulating 12' Flat Panel LCD Pole Mount









Features of Innovative 9136-S-12:

    1. 12" standard pole, custom pole lengths are available.



    2. Enables pivot, tilt and rotation of monitor.



    3. Monitor tilter mechanism can tilt over 200 degrees.



    4. Adjustable tension at joints - ideal for touch screen applications.



    5. Ideal for slatwall mounting, can be combined with all Innovative mount options (sold separately).



    6. VESA-monitor compatible - 75 mm and 100 mm VESA adapters included. Please call for non-

      VESA options.



    7. Optional upgrade to quick install/release monitor bracket. Consult your sales rep for details.

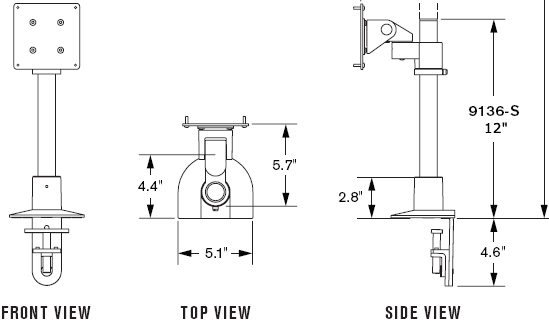

Technical Drawing for Innovative 9136-S-12-NM Articulating 12" LCD LED Pole Mount



Technical Drawing for Innovative 9136-S-12-NM Articulating 12" LCD Pole Mount









Description of Innovative 9136-S-12-NM:

Save desk space by elevating the monitor above the work surface with this handy mount. Allows pivot and tilt of the monitor. Position at any height along the included 12" pole.







Specifications:

Pole Size:

Useable Pole length is 12" but 13.6" is before mount

Monitor Tilt:

200 degrees

Monitor Pivot:

Landscape to portrait

Monitor Compatibility:

VESA 75 mm and 100 mm

Mounting Options:

FlexMount, Slatwall, Wall and Thru-Desk

Monitor Weight:

Up to 45 lbs per monitor



Innovative Returns Policy
All returns must be labeled with a valid Return Authorization (R/A) number, which can be obtain by contacting Ergodirect.com, on the outside of packaging.  Restocking fee of 20% will be applied on all returns.  Products must be in brand new, saleable condition, and never installed. Defective items may be returned within limits of the Warranty.  Non-defective Custom-configured Items are not returnable.  All return must be made within 30 days of receipt.
Model 9136-S-12-FM
Manufacturer Innovative LCD Arms
Part Number 9136-S-12-FM
Mounting Options Desk
Mounting Options Wall
Mounting Options Slatwall
Mounting Options All-in-one
Monitor Arm Types 1 Monitor
