We are sorry but item below has been discontinued. Above are some similar products we can offer instead.

Chief MTAU Medium FUSION Tilt Video Wall Mount (26-47")

Be the first to review this product
Product ID: 16371
List Price: $165.00
Our Price: $106.40
You Save: $58.60
Shipping: $8.00 *
Usually ships in 1 to 2 business days
* applies to Contiguous United States

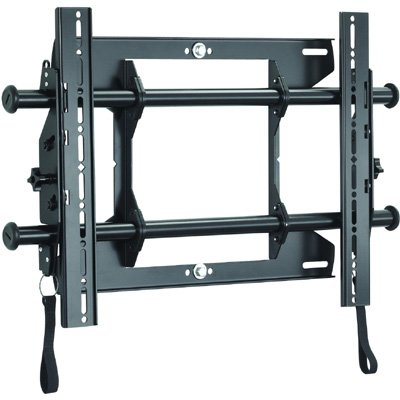

Chief MTAU FUSION Flat Panel Tilt Video Wall Mount (26"-47" Displays)



General Information



Image of Warranty and Returns





Nationwide Delivery Image









Chief MTAU FUSION Universal Flat Panel Tilt Video Wall Mount (26"-47" Displays)



Chief MTAU FUSION Universal Flat Panel Tilt Video Wall Mount 26"-47" Displays









Features of Chief MTAU:

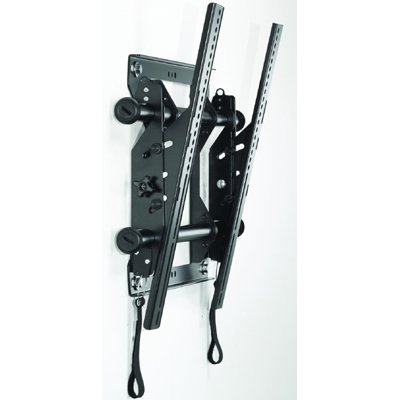

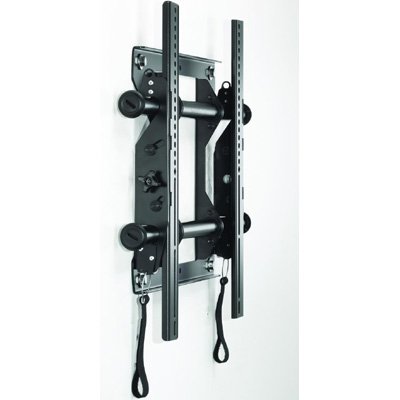

    1.  Centris Low Profile Tilt: Centris fingertip tilt technology uses the center of gravity to balance

       the screen while maintaining a low profile under 2" deep. Screen angle stays set in place

       until readjusted.



    2.  ClickConnet: Hear an audible click when the screen safely engages with the mount. A built-in

         cable stand provides easy access under the screen.



    3.  Customizable Accessory System: A full line of supporting accessories can be integrated

         with the mount, extending the same adjustment benefits to the entire configuration.

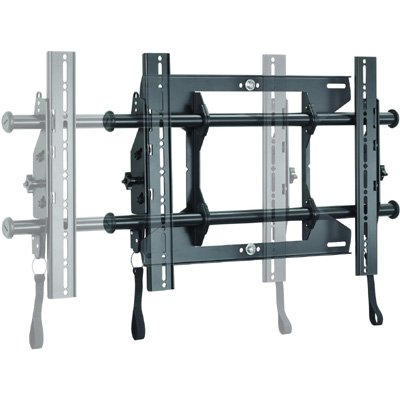

    4.  CenterLess Shift: Provides up to 14.5" of post installation lateral shift - 7.25" left/right of

         upgrades - for limitless centering capabilities.



    5.  Provides integrated security, just add a padlock.









Technical Drawing for Chief MTAU FUSION Flat Panel Tilt Video Wall Mount



Technical Drawing for Chief MTAU FUSION Flat Panel Tilt Video Wall Mount







Description of Chief MTAU:

This installer-inspired tilt mount solves top flat panel installation problems, offering perfect TV positioning and flexible adjustments for medium flat panel screens.







Specifications:

Tilt:

0 - 12 degree

Max Lateral Shift:

14.5" (368 mm)

Mounts on Studs:

Single stud or 16" centers

Dimensions (H x W x D):

13.5" x 25.44" x 1.99" (343 x 646 x 51 mm)

Max Mounting Pattern:

Height - 15.75" (400 mm), Width - 26.25" (667 mm)

Weight Capacity:

single stud - 75 lbs (34 kg), dual stud - 125 lbs (56.7 kg)

Color:

Black







Frequently Asked Questions:

Q: What size padlock can I use to add security?

A: Use a padlock with maximum diameter of 0.35" (8.9 mm).





Literature (Please open the following documents for more technical information)

Description

File Type

Chief MTAU FUSION Flat Panel Tilt Video Wall Mount - Installation Assembly

reader-14.jpg - pdf

Chief MTAU FUSION Tilt Video Wall Mount 26"-47" Displays - Technical Drawing

reader-14.jpg - pdf

Chief MTAU FUSION Universal Tilt Video Wall Mount - Catalog Page

reader-14.jpg - pdf

Chief FUSION Fixed and Tilt Mounting System Brochure

reader-14.jpg - pdf











Chief Logo



Hyperlink of all Chief products



Model MTAU
Manufacturer Chief Mounts
Part Number MTAU
Mounting Options Wall

Be the first to review this product

Chief MTAU Medium FUSION Tilt Video Wall Mount (26-47")
