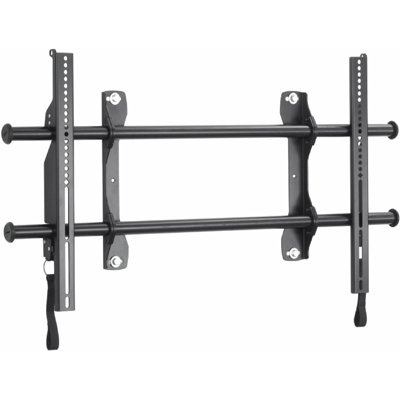

Chief LSAU Large FUSION Fixed Video Wall Mount (37-63")

Chief LSAU Large FUSION Fixed Video Wall Mount (37-63")
click image to enlarge
List Price: $185.00
Our Price: $123.20
You Save: $61.80
Shipping: $0.00 *  - Free Ground Shipping
* applies to Contiguous United States
Add to Cart





Chief LSAU FUSION Flat Panel Fixed Video Wall Mount (37"-63" Displays)



General Information



Image of Warranty and Returns





Nationwide Delivery Image









Chief LSAU FUSION Universal Flat Panel Fixed Video Wall Mount 37"-63" Display



Chief LSAU FUSION Universal Flat Panel Fixed Video Wall Mount 37"-63" Display









Features of Chief LSAU:

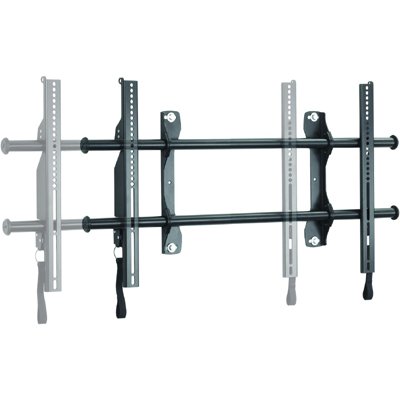

    1.  CenterLess Shift: Provides up to 17.5" of post installation lateral shift - 8.75" left/right of

         upgrades - for limitless centering capabilities.



    2.  ClickConnet: Hear an audible click when the screen safely engages with the mount. A built-in

         cable stand provides easy access under the screen.



    3.  Customizable Accessory System: A full line of supporting accessories can be integrated

         with the mount, extending the same adjustment benefits to the entire configuration.



    4.  Multiple Installation Options: Can be installed on 12" on centers up to 32".



    5.  Great solution for quickly installing multiple screens.



    6.  Provides integrated security, just add a padlock.









Technical Drawing for Chief LSAU FUSION Flat Panel Fixed Video Wall Mount



Technical Drawing for Chief LSAU FUSION Flat Panel Fixed Video Wall Mount







Description of Chief LSAU:

This installer-inspired fixed mount solves top flat panel installation problems, offering perfect TV positioning and flexible adjustments for larger flat panel screens.



  • Provides an ultra low profile mounting solution.

  • Easy accessory attachment.







Specifications:

Depth from Wall:

1.96" (50 mm)

Max Lateral Shift:

17.5" (445 mm)

Mounts on Studs:

16", 20" , 24"

Dimensions (H x W x D):

13.2" x 34.44" x 1.96" (335 x 875 x 50 mm)

Max Mounting Pattern:

Height - 19.9" (506 mm), Width - 34.6" (879 mm)

Weight Capacity:

200 lbs (90.7 kg)

Color:

Black







Frequently Asked Questions:

Q: What size padlock can I use to add security?

A: Use a padlock with maximum diameter of 0.35" (8.9 mm).







Literature (Please open the following documents for more technical information)

Description

File Type

Chief LSAU FUSION Flat Panel Fixed Video Wall Mount - Installation Assembly

reader-14.jpg - pdf

Chief LSAU FUSION Fixed Video Wall Mount 37"-63" Displays - Technical Drawing

reader-14.jpg - pdf

Chief LSAU FUSION Universal Fixed Video Wall Mount - Catalog Page

reader-14.jpg - pdf

Chief FUSION Fixed and Tilt Mounting System Brochure

reader-14.jpg - pdf











Chief Logo



Hyperlink of all Chief products



Model LSAU
Manufacturer Chief Mounts
Part Number LSAU
Mounting Options Wall
