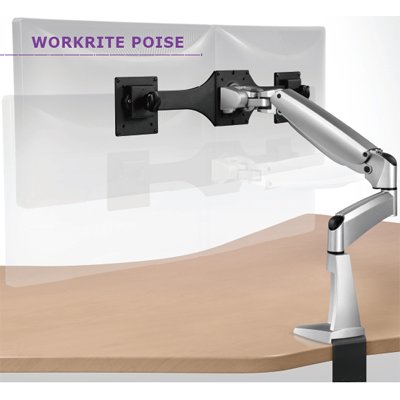

Workrite PA4000-B or PA4000-S Poise Twin Flat Panel Monitor Arm

Be the first to review this product
Product ID: 16389
Highlights
  • Height adjustable twin monitor arm
  • 7-18.5 lbs weight range - Mounts 2 monitors in the weight range 7-18.5 lbs each
  • 12" height range - Provides height adjustability of 12"
  • 24 1/4" monitor width - Width of each monitor (not screen size, which is diagonal) cannot exceed 24 1/4"
  • Design - Parallel linkage keeps monitors parallel while adjusting for height
  • Please see, if you want to mount a single monitor
Options
List Price: $615.00
Our Price: $369.00
You Save: $246.00
Shipping: FREE SHIPPING *
Usually ships in 3 to 5 business days
* applies to Contiguous United States





Related Products:

Part Number

Description

PA4000-S

Silver Workrite Poise Twin Flat Panel LCD Display Monitor LED Arms

PA4000-B

Graphite Workrite Poise Twin Flat Panel Display LCD Monitor LED Arms

Workrite PA4000 Poise Twin Flat Panel LCD Display Monitor LED Arms Change the way you see your work

Workrite PA4000 Poise Twin Flat Panel LCD Display Monitor LED Arms









Workrite PA-4000 Information:

    1.  Parallelogram Design - For ease of Adjustment: The Workrite Poise monitor arm features a parallel linkage design with adjustable pneumatic counter balance that floats the monitor above the work surface.



    2.  Ergonomic User Flexibility: The Workrite Poise monitor arm adds a range of adjustment to meet users need for visual acuity and individual user preference that is unmatched in the industry.



  • 360° rotation at the mounting base and first extension allows folded storage as shallow as 4"

  • 180° rotation at the monitor connection for positioning and collaboration

  • 12" vertical height range to meet individual users height requirements

  • Monitor rotates from portrait to landscape with rotary stops to prevent cable damage

  • Monitor tilt of 180° (70° back and 90° forward) to support touch screen application and special needs for users with disabilities and reclined usage

    3.  Dual Screen Support: The Poise Twin has all the features of the Poise PA1000 plus additional support for two monitors from 7 lbs. up to 18½ lbs. each



  • Can be installed for either landscape or portrait orientation both vertically or horizontally

  • Actual (not diagonal) monitor width not to exceed 20½" each

  • Twin mounting plate orients monitors slightly inward towards viewer

    4.  Convenience Features: The Workrite Poise has several thoughtful features built in. Graphic indicators are molded into the arm to assist in adjustment long after the assembly instructions have gone away. The cable management system from the base to the monitor neatly organizes cables out of sight. Optional features include multiple mounting options as well as extension and quick mount monitor bracket to enhance usability of the arm.



    5.  When adjustability, durability and visual comfort are key: With a 360° rotation, monitor can be changed quickly from landscape to portrait orientation. Poise will support monitor arms from eight to 22 lbs, including most common monitors from 17” to 24”.

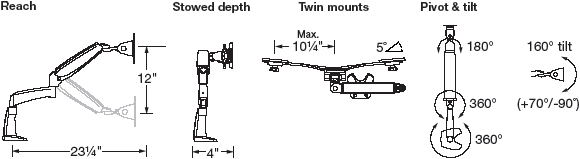

Technical Drawing for Workrite PA4000 Poise Twin Flat Panel Display LCD  Monitor LED Arms



Technical Drawing for Workrite PA4000 Poise Twin Flat Panel Display LCD Monitor LED Arms







Description of Workrite PA 4000:

A simple touch with your fingertip will easily change the position of the Workrite Poise while the monitor remains perfectly parallel.

The Workrite Poise monitor arm features a parallel linkage design with adjustable pneumatic counter balance that floats the monitor above the work surface. A simple touch with your fingertip will easily change the position of the Workrite Poise while the monitor remains perfectly parallel.



The Workrite Poise has a range of adjustment to meet users' need for visual acuity and individual user preference that is unmatched in the industry as well as several thoughtful features built in. Graphic indicators are molded into the arm to assist in adjustment long after installation. The cable management system neatly organizes cables out of sight. Optional features include multiple mounting options and quick release monitor bracket for installation flexibility.









Features of Workrite PA4000 Poise:

    1.  160° tilt range (+70°/- 90°), 360° pivot at base and arm connections, 180° pivot at monitor mounting.



    2.  4" stored depth.



    3.  Parallel linkage design keeps monitor perfectly parallel when adjusting vertically.



    4.  Adjustable pneumatic counter balance.



    5.  Clamp mount version includes two piece C-clamp and separate grommet clamp (shown) for surfaces of ¾" - 2¹/8" thickness.



    6.  For customized control, including touch-screen use, tension is adjustable at all pivot points.



    7.  Integral cable management neatly stores cables .



    8.  For security, monitor attached with 4 screws.



    9.  VESA monitor mount for 75mm and 100mm standard.



  10.  Optional VESA bracket for VESA 100 mm × 200 mm mounting for all single monitor applications.



  11.  Additional support for two monitors from 7 lbs. up to 18.5 lbs. each.



  12.  Can be installed for either landscape or portrait orientation both vertically or horizontally.



  13.  Actual (not diagonal) monitor width not to exceed 20.5" each.



  14.  Twin mounting plate orients monitors slightly inward towards viewer.



  15.  80% recyclable at end of life.



  16.  10 year warranty.





Literature (Please open the following documents for more technical information)

Description

File Type

Workrite PA4000 Poise Heavy Duty Flat Panel Display LCD Monitor Arm- Cut Sheet

reader-14.jpg - pdf











Workrite Logo



Hyperlink of all Workrite Products



Model PA4000-B, PA4000-S
Manufacturer Workrite Ergonomics
Part Number PA4000-B OR PA4000-S
Mounting Options Desk
Monitor Arm Types 2 Monitors
Number of Monitors 2 Monitors
