We are sorry but item below has been discontinued.

Ergotron SV32-81124 StyleView Patient Healthcare Delivery PHD Laptop Cart with 4 Drawers Powered

Be the first to review this product
Product ID: 16396
Recommended Accessories
Our Price: $4,189.30
Shipping: $199.95 *
Usually ships in 2 to 3 business days
* applies to Contiguous United States





Accessories for Ergotron SV32-81124 StyleView PHD Laptop Cart

Ergotron 97-540-053 Large Utility Shelf grey 97540053

Ergotron 97-540-053 Large

Utility shelf

Ergotron 97-507-216 Utility Shelf for Carts White

Ergotron 97-507-216 Utility

Shelf for Carts

Ergotron 60-587-207 T-Slot Bracket Kit 60587207

Ergotron 60-587-207 T-Slot

 Bracket Kit





General Information



Image of Warranty and Returns

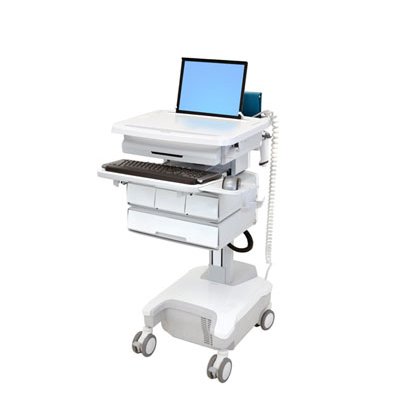

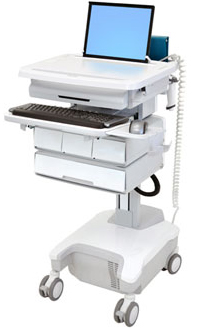

Ergotron SV32-81124 StyleView Patient healthcare Delivery PHD Laptop Cart with 4 Drawers and Powered (white/grey)



Ergotron SV32-81124 StyleView Patient healthcare Delivery PHD Laptop Cart with 4 Drawers and Powered (white/grey)







Description of Ergotron SV32-81124:

Order part number that coincides with regional power system requirements:

North America = SV32-81124, Europe = SV32-82124, UK/IE = SV32-83124, HK/MY/SG = SV32-83124, AU/NZ = SV32-84124, China = SV32-85124 and Japan = SV32-86124.

Patient Healthcare Delivery (PHD): Auto-locking drawer system enables simple and efficient non-controlled medication management at the point-of-care.

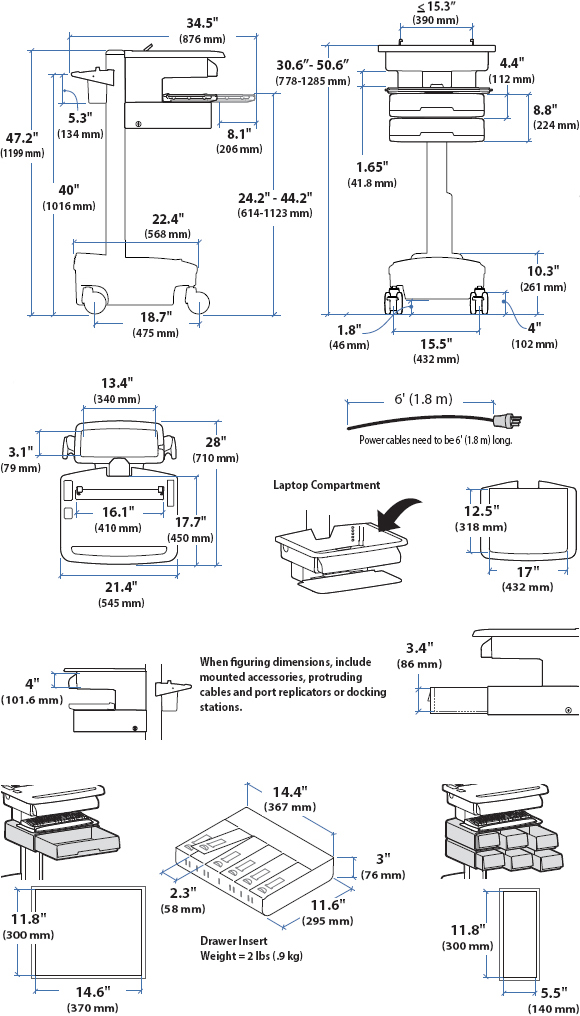

Technical Drawing for Ergotron SV32-81124 StyleView Patient healthcare Delivery PHD Notebook Cart with 4 Drawers and Powered (white/grey)



Technical Drawing for Ergotron SV32-81124 StyleView Patient healthcare Delivery PHD Notebook Cart with 4 Drawers and Powered (white/grey)









Technical Specifications:








     LCD Size

 Wt. Capacity

     Lift

Tilt

Pan

Rotation

VESA

up to 17"

up to 23 lbs
10.4 kg

20"
51 cm

- -

-

-







Product Information:

Part Number:

North America = SV32-81124, Europe = SV32-82124, UK/IE = SV32-83124, HK/MY/SG = SV32-83124, AU/NZ = SV32-84124, China = SV32-85124 and Japan = SV32-86124

Description:

StyleView PHD Laptop Cart, 4 Drawers, Powered (white/grey)

Included:

  • Auto-locking drawer system (ADS)

  • One large drawer and three small drawers

  • Cassette insert with six compartments

  • Two battery 66 Ah power system

  • 10 foot (3 m) coiled cord

  • Hospital grade AC outlets

  • Power system user interface

  • StyleLink software

  • Worksurface

  • Secure laptop compartment

  • Ethernet ready-on function and four-port USB hub

  • Scanner holder bracket

  • Mouse holder

  • Wrist rest

  • Back-tilt keyboard tray

  • Left/right mouse tray

  • Front and rear handles

  • Storage basket

  • Cable storage

  • Four casters (two locking)

Laptop Holder Internal Dimensions:

17"W x 12.5"D x 3.75"H (43 x 32 x 9.5 cm)

Total Maximum Load of Height Adjustment Assembly:

23 lbs (10.4 kg).

This is the sum of the following components: Capacity of worksurface, keyboard tray and auto lock drawer ≤ 10 lbs (4.5 kg), capacity of CPU compartment ≤ 13 lbs (5.9 kg)

Laptop and Worksurface:

Laptop and worksurface adjust 20" (51 cm) in tandem

True Ergonomics:

  • Ergonomic back-tilt keyboard tray with left or right mouse tray ensures wrists remain in a neutral position during data entry - avoid repetitive-stress injuries while increasing comfort and productivity

  • Designed for users 5'0" to 6' 1" (152 to 185 cm) tall and for prolonged sitting or standing applications. Unlike competitive offerings, users as short as 5’0” (152 cm) can easily work comfortably and productively in a seated position

  • Patented CF lift-and-pivot motion technology minimizes forces required to adjust cart position: Height adjustment and keyboard placement require just a touch

  • Four ultra-smooth gliding casters for extremely easy push/pull mobility, two locking casters ensure lock-in-place stability

Safe:

  • Auto-locking drawer system (ADS): Each drawer is individually controlled with 5-digit master or user PIN, manual key-lock option included, drawer auto-locks after 4 seconds, programmable alarm sounds after 20 seconds; securely stores PINs for up to 100 users

  • StyleLink Software enables drawer access PINs to be programmed remotely or directly, two points of possible console access for PIN updates/adds include Unit Clerk or IT, full cart open/close event log and reporting capabilities

  • Dependable fifth-generation power system with easy to replace batteries. For patient and caregiver safety the full cart and power system are certified to UL/EN/IEC 60601-1 and CAN/CSA C22.2 No.601.1 M90, as well as NFPA leakage current limits

  • Power System User Interface integrated conveniently on the worksurface (includes visual and audible battery status indicator)

  • Power system complies with EMI limits of FCC Part 15 Class A

  • Surfaces are treated with Agion Antimicrobial for product protection, handles are smooth and continuous for improved cleanability

  • Environmentally clean: RoHS, REACH, WEEE and EU (94/62/EC) packaging compliant

  • Durable, easy-to-clean exterior composed of aluminum, high-grade plastic and zinc-plated steel promotes infection control

  • One-piece worksurface with no seams, easy-to-clean design promotes infection control

  • Lockable, ventilated enclosed storage for notebook. Keys and locks are heavy-duty

  • Front-locking casters

  • Designed to meet guidelines established by the American National Standards Institute for computer use

Service:

  • Includes FREE StyleLink with enterprise capabilities - Install, access and manage your StyleView power systems and drawers from a remote location across WAN, LAN, or VPN. StyleLink’s three-part software package maximizes your IT tech-support time by giving you real-time centralized control over carts across campus, the city, country, or the world

  • Covered by Global Service Program - 24/7 coverage

All the Details Covered:

  • Four amber LEDs provide light over keyboard tray or drawers; includes 15 minute auto shut-off

  • Button for LED lights and Ethernet ready-on is now located conveniently on worksurface

  • Easy access to components for field replacement and serviceability: Fan, keyboard LEDs, PC boards (including the user interface). Easier, faster upkeep and service means less down time

  • Laptop screen holders: Prevents the laptop screen from vibrating for less damage to hinges over time

  • Pre-routed cables provide quicker integration with equipment

  • TAA (Trade Agreements Act) compliant

  • Universal mounting slot for accessories and equipment

  • A unique cable management system conceals and organizes cords, making cleaning easy

  • Ships fully assembled and is easily accessible from container

  • One-piece worksurface, no seams, easy to clean design promotes infection control

  • Rear basket keeps task-related items where they can be quickly accessed

  • Barcode scanner holder provides easy access to hand-held scanner

Compatibility and Dimensions:

  • Open-architecture design accommodates most notebook computers and future hardware upgrades

  • Laptop holder internal dimensions: 17"W x 12.5"D x 3.75"H (43 x 32 x 9.5 cm)

  • Compact Wheel-to-Wheel Base Dimensions: 15.5" x 18.7" (39 x 48 cm)

  • Work surface Dimensions: 20.9"W x 16.4"D (53 x 42 cm)

  • VAC:
    SV32-81124 = 120V/60 Hz;
    SV32-82124, SV32-83124, SV32-84124 = 230V/50 Hz;
    SV32-85124 = 220V/50Hz;
    SV32-86124 = 100V/50Hz

  • Grounded Plug & Outlet:
    SV32-81124 = NEMA 5-15P Hospital Grade;
    SV32-82124 = European CEE 7;
    SV32-83124 = UK BS 1363;
    SV32-84124 = AS/NZS 3112;
    SV32-85124 = GB2009-1, GB1002-1;
    SV32-86124 = JIS 8303

  • 66 Ah Power System with two (2) 33 Ah, 12 V DC, Sealed Lead Acid (SLA), Absorbed Glass Mat (AGM), valve-regulated batteries with supporting electronics

Shipping Dimensions:

23" x 30" x 55" (58 x 76 x 140 cm)

Shipping Weight:

194 lbs (88 kg), actual cart weight = 161 lbs (73 kg)

Warranty:

Five(5) years for cart, two (2) years on all power supply components by Ergotron; battery carries limited one- (1-) year performance warranty with use of StyleLink software and six- (6-) month warranty against manufacturer’s defects









Benefits of Ergotron SV32-81124:

    1.  Auto-locking drawer system: Simple and efficient non-controlled medication management at

         the point-of-care reduces opportunities for errors; security system stores PINs for up to 100

         users.

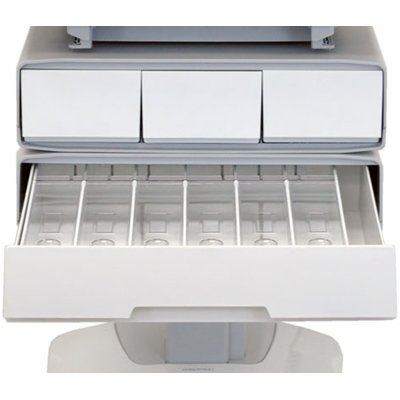

    2.  Large drawer includes cassette insert with six storage compartments, combined with three

         small drawers, the system supports nine patients.



    3.  Truly ergonomic design accommodates the largest range of caregivers; Designed for sitting or

         standing with single-motion fluid adjustment - helps promote caregiver wellness and

         productivity.



    4.  StyleView’s small footprint, with ultra-smooth gliding casters, travels across crowded carpeted

         or hard floors with ease - perfect for space constrained areas.



    5.  Surfaces are treated with Agion Antimicrobial for product protection.



    6.  Open-architecture design accommodates most laptops - even widescreen - easing future

         hardware deployments and upgrades.



    7.  Dependable fifth-generation power system with easy to replace batteries. For patient and

         caregiver safety the power system and cart are both certified to UL/EN/IEC 60601-1 and

         CAN/CSA C22.2 No.601.1 M90, as well as NFPA leakage current limits.



    8.  Push-button Ethernet ready-on function embedded in worksurface: Awaken enclosed computer

         from energy-saving hibernation mode with the touch of an external button - facilitates easy

         compliance with EnergyStar 4.0 guidelines.



    9.  Enterprise Management: FREE StyleLink Software secures access to drawers and allows

         remote monitoring/configuration with established Microsoft tools.



  10.  Passes Ergotron’s 10,000-cycle motion test, which ensures a minimum of five years trouble-

         free sit-to-stand height adjustment.







Literature (Please open the following documents for more technical information)

Description

File Type

Ergotron SV32-81124 StyleView PHD Notebook Cart - Dimensional Illustrations

reader-14.jpg - pdf
