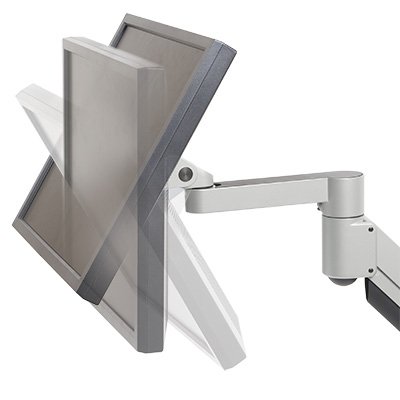

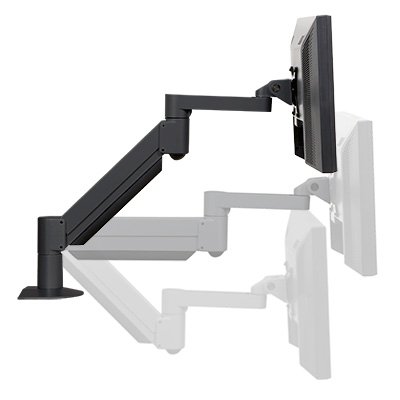

Click on the functions (Height Adjustment, Tilt LCD, Rotate at Forearm, Rotate at LCD, Rotate at Mount, Pivot LCD and Cable Management ) to the left side of the image below to see the arm movements

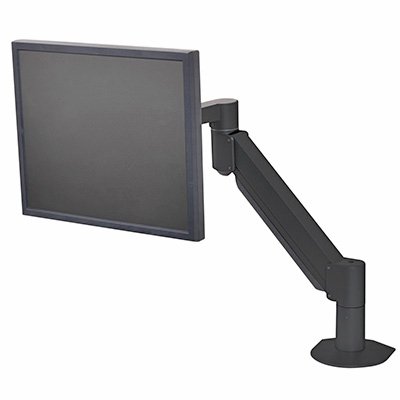

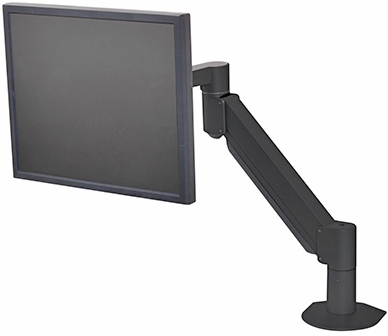

Innovative 7500-HD Flat Panel Radial LCD Monitor Arm with HD Tilter (27 inch Reach) up to 44 Lbs
Description of Innovative 7500-HD:
This is the HD version of the award-winning 7500 Radial Arm. Effortlessly position your monitor exactly where you want it, and add flexibility to your work style. Suspend your flat panel above the desk surface and reclaim your valuable space.
7500-HD features Innovative's patented HD tilter, a spring-assisted pivot for your monitor which makes monitor adjustment remarkably easy, even with large screens. Other features include cable management to route cables inside the arm.

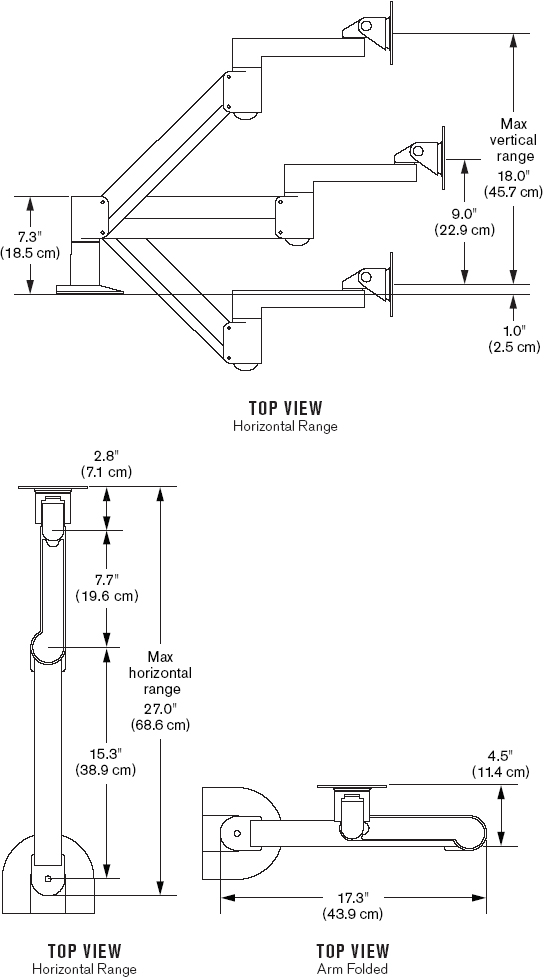

Technical Drawing for Innovative 7500-HD Flat Panel LCD Monitor Arm with HD Tilter
Features of Innovative 7500-HD:
Includes our spring-assisted HD tilter for smooth monitor pivoting.
Monitors are rendered weightless by the arm.
18" of vertical range.
27" of horizontal range.
Folds up to occupy just 3'' of space.
Monitor tilter mechanism can tilt over 200 degrees.

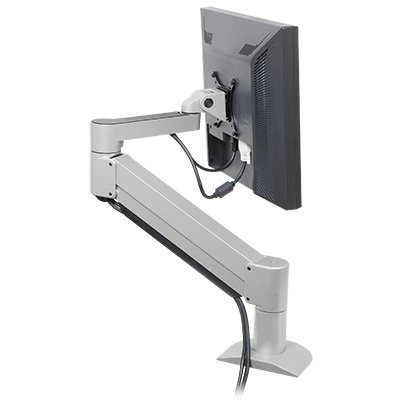

Cable management keeps cables tucked beneath arm.
Select from numerous mounting options.
VESA-monitor compatible - 75mm & 100mm VESA adapters included. Please call for non-VESA options.
Capabilities of Innovative 7500-HD:
18" (45.7 cm), +/- 9" (22.9 cm) from horizontal
27" (68.6 cm)
360 degrees at three joints
Landscape to portrait
VESA 75 mm and 100 mm
Cables are concealed in arm
FLXEmount, Slatwall, Wall, Through-Desk
