We are sorry but item below has been discontinued.

Innovative 9169-D-2 ArcView Two-Tier Dual Monitor Beams & Poles

Beam Width of 25.6" with max distance of 20.5" between end mounting points for up to 35 lbs each monitor.
Be the first to review this product
Product ID: 16455
Recommended Accessories
List Price: $885.00
Our Price: $619.50
You Save: $265.50
Shipping: $55.95 *
Usually ships in 5 to 7 business days
* applies to Contiguous United States

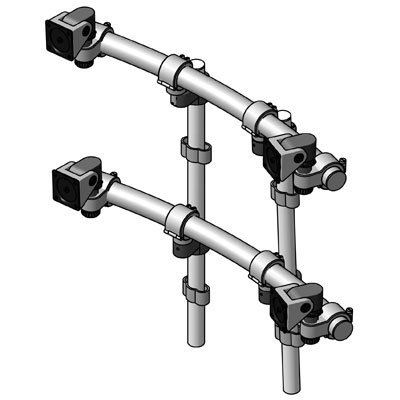

Innovative 9169-D-2 ArcView Two Tier Dual Monitor Beams and Mounting Poles



Innovative 9169-D-2 ArcView Two Tier Dual Monitor Beams and Mounting Poles





Description of Innovative 9169-D-2:

Suspend 4 flat panels 2 over 2 with the ArcView Two Tier Dual Flat Panel Mounting System. Save valuable work space and reduce desktop clutter. Independently adjust pivot and tilt of each monitor. Height may be set in 1" increments.

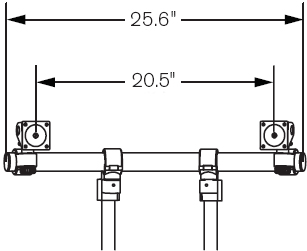

Technical Drawing for Innovative 9169-2-2P ArcView Dual Monitor Beam with two 12" Mounting Poles



Technical Drawing for Innovative 9169-2-2P ArcView Dual Monitor Beam with two 12" Mounting Poles

This drawing is the same for 9169-D-2 but two tier







Features of Innovative 9169-D-2:



  • Suspend 4 monitors above the desk, 2 over 2.

  • Includes cable management.

  • Quick and simple set-up - position monitors at any point along the ArcView beams.

  • Compatible with all VESA-standard monitors. 75mm and 100mm VESA adapters included.

  • Adjust monitor height in 1" increments.

  • Optional upgrade to quick install/release monitor bracket. Consult your sales rep for details.

  • Supports monitors up to 35 lbs each.





Capabilities of Innovative 9169-D-2:



Beam Width:

25.6"

Max Distance between End Mounting Points:

20.5"

Monitor Weight:

35 lbs max per Monitor

VESA Compatibility:

Compatible with all VESA-standard monitors. 75mm and 100mm VESA adapters included.







Innovative Returns Policy:

All returns must be labeled with a valid Return Authorization (R/A) number, which can be obtained by contacting Ergodirect.com, on the outside of packaging. Restocking fee of 20% will be applied on all returns. Products must be in brand new, saleable condition, and never installed. Defective items may be returned within limits of the Warranty. Non-defective Custom-configured Items are not returnable. All return must be made within 30 days of receipt.

Model 9169-D-2
Manufacturer Innovative LCD Arms
Part Number 9169-D-2
Mounting Options Desk
Mounting Options Wall
Mounting Options Slatwall
Mounting Options Pole
Mounting Options All-in-one
Monitor Arm Types 4 Monitors
