We are sorry but item below has been discontinued.

Ergotron 60-617 TM Cantilever Tilting Wall Mount VHD Very Heavy Duty for 23" to 42" LCD LED Flat Panel Black

Be the first to review this product
Product ID: 16500
Recommended Accessories
Our Price: $208.79
Shipping: $19.95 *
Usually ships in 2 to 3 business days
* applies to Contiguous United States



Accessories for Ergotron 60-617 TM Cantilever Wall Mount VHD



Ergotron 28-513-100 Neo Flex Keyboard Wall Mount Monitor Arm 28513100

Ergotron 28-513-100 Neo Flex Keyboard Mount
Ergotron 80-105-064 Universal CPU Holder
Ergotron 80-105-064 Universal CPU Holder
Ergotron 97-468-202 Vertical Universal CPU Holder Silver 97468202
Ergotron 97-468-202 Vertical Universal CPU Holder

Ergotron 80-063-200 Small CPU Holder black 80063200

Ergotron 80-063-200 Vertical Small CPU Holder











Ergotron 97-563-057 Cable Management Kit grey

Ergotron 97-563-057 Cable Management Kit




General Information



Image of Warranty and Returns

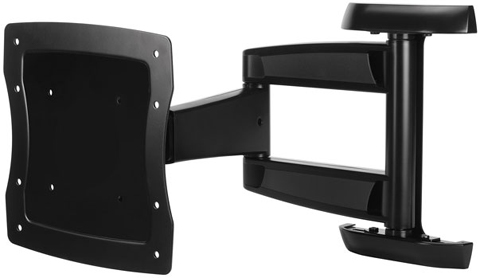

Ergotron 60-617 TM Cantilever Tilting Wall Mount VHD Very Heavy Duty for 23" to 42" Flat Panel Displays Black



Ergotron 60-617 TM Cantilever Tilting Wall Mount VHD Very Heavy Duty for 23" to 42" Flat Panel Displays Black









Description of Ergotron 60-617:

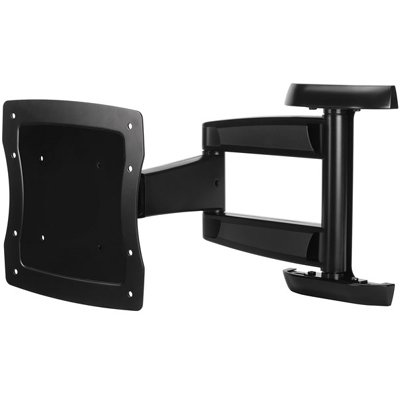

This low-profile cantilever mount fits most 23"-42" flat panels up to 100 lbs (45.4 kg) and is well-suited for those applications where seamless integration counts most.









Technical Specifications:



LCD size

Capacity

Lift

Tilt

Pan

Rotation

VESA

LCD Size

Capacity

Lift

Tilt

Pan

Rotation

VESA

23"-42"

up to 100 lbs

45 kg

-

20°

180°

-

MIS-D/E/F









Product Information:



Part Number:

60-617

Description:

TM Cantilever Wall Mount, VHD, Very Heavy Duty (black)

Includes:

  • Monitor plate

  • Four (4) wing adaptors

  • Two (2) wall rails

  • Two (2) wall rail covers

  • Cantilever arm

  • Three (3) cable covers

  • Complete installation hardware

  • A template for simple and accurate mounting is also included

VESA Monitor Attachment:

100 x 100 mm, 200 x 100 mm, 100 x 200 mm, 200 x 200 mm, 300 x 200 mm, 300 x 300 mm, 400 x 200 mm, 400 x 300 mm or 400 x 400 mm

Minimum Profile:

2.36" (60 mm)

Maximum Extension:

21.57" (548 mm)

Adaptor:

If adaptor is used, add 0.31" (8 mm) to minimum profile and maximum extension

Note:

  • UL certified and listed to UL Standard 1678. This product has been tested to hold four times its maximum load capacity per UL standard (do NOT exceed listed weight capacity in actual use)

  • Full compliance with RoHS directive is in progress

Shipping Dimensions:

16.9" x 23" x 11.9" (430 x 585 x 303 mm)

Shipping Weight:

17.5 lbs (8 kg)

Warranty:

Five (5) years









Benefits of Ergotron 60-617:



  • Tilt range up to 20º to reduce glare

  • Extends up to 21.5" (55 cm) from wall.

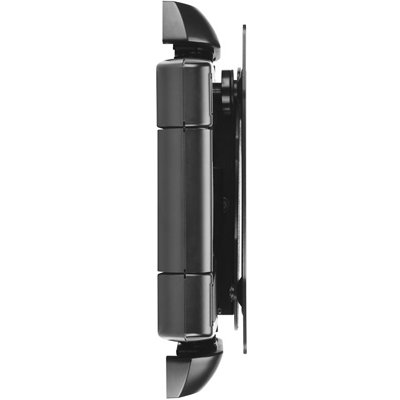

  • Arms completely nest for a discreet 2.4" (6 cm) mounting profile.

  • Tilt and pan for maximum viewing flexibility.

  • Includes adapter for greater panel compatibility.

  • Rack and pinion tilt mechanism for effortless adjustment.

  • Integrated cable management with quick-snap covers guide wires.

  • Lift and Lock allows you to easily attach your flat panel to the mount.

  • Sliding on-wall adjustment: 2" (5 cm) lateral; 1.4" (3.5 cm) vertical.

  • Locking system secures panel to mount.

  • Built-in screen leveling.

  • Steel tube construction for maximum strength and durability.

  • Wall plate covers conceal mounting hardware.

  • Includes complete hardware Kit and adaptor.







Literature (Please open the following documents for more technical information)




Ergotron 60-617 TM Cantilever Tilting Wall Mount VHD - Installation Manual

- pdf

Ergotron 60-617 TM Cantilever Tilting Wall Mount VHD - Market Flyer

- pdf







Ergotron Logo

Hyperlink of all Ergotron products



Model 60-617
Manufacturer Ergotron
Part Number 60-617

Be the first to review this product

Ergotron 60-617 TM Cantilever Tilting Wall Mount VHD Very Heavy Duty for 23" to 42" LCD LED Flat Panel Black
