Ergotron 60-622 Neo-Flex Ceiling Mount Dual Large TV LCD LED Displays Back to Back

Be the first to review this product
Product ID: 16504
Recommended Accessories
Our Price: $541.17
Shipping: $45.95 *
Usually ships in 2 to 3 business days
* applies to Contiguous United States



Accessories for Ergotron 60-622 Neo-Flex Double Ceiling Mount



Ergotron 97-591 Neo-Flex Ceiling Mount Shelf Black

Ergotron 97-591 Neo-Flex Ceiling Mount Shelf
Ergotron 97-592 (24") or 97-593 (18") or 97-594 (12") Neo-Flex Extension Pipe for Neo-Flex Ceiling Mounts Black
Ergotron 97-592 (24") or 97-593 (18") or 97-594 (12") Neo-Flex Extension Pipe
Ergotron 97-595 Neo-Flex Unistrut Pole Adaptor for Neo-Flex Ceiling Mounts Black
Ergotron 97-595 Neo-Flex Unistrut Pole Adaptor

Ergotron 97-596 Neo-Flex Female Pole Adaptor for Neo-Flex Ceiling Mounts Black

Ergotron 97-596 Neo-Flex Female Pole Adaptor



General Information



Image of Warranty and Returns

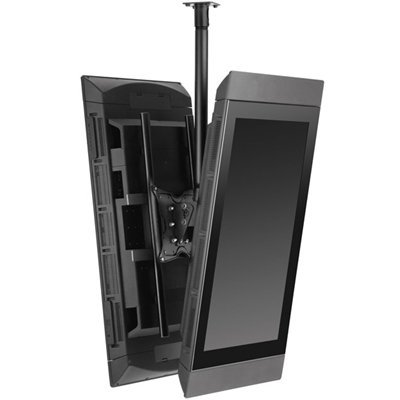

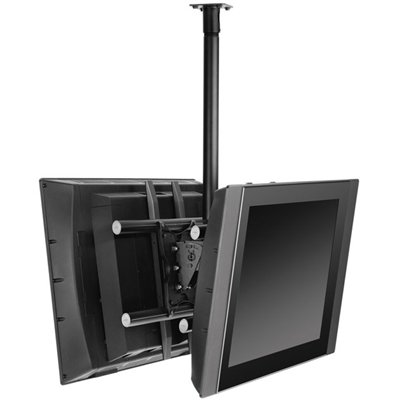

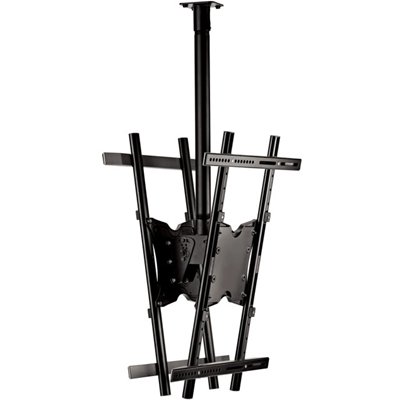

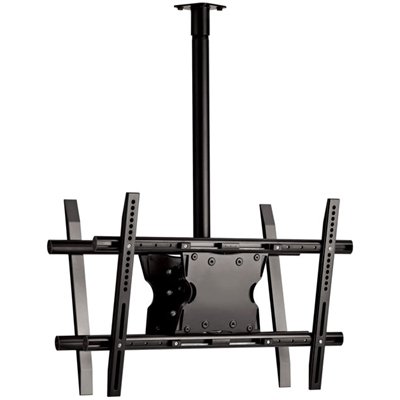

Ergotron 60-622 Neo-Flex Double Ceiling Mount Large TV LCD LED Displays Back to Back



Ergotron 60-622 Neo-Flex Double Ceiling Mount for Two Large Displays back to Back Black









Description of Ergotron 60-622:



A sturdy double flat panel ceiling mount with universal adapters, that allows flat panels TV, LCD, LED or digital signage to be seen from multiple locations.









Technical Specifications:



LCD size

Capacity

Lift

Tilt

Pan

Rotation

VESA

LCD Size

Capacity

Lift

Tilt

Pan

Rotation

VESA

37"-70"

up to 400 lbs

180 kg

-

30°

-

-

MIS-D/E/F









Product Information:



Part Number:

60-622

Description:

Neo-Flex Ceiling Mount Dual Large TV, LCD, LED Displays back to back (black)

Includes:

  • Ceiling plate

  • Straight pipe

  • Two (2) Tilt hangers

  • Two (2) Adaptor plates

  • Two (2) Universal adaptors

  • Four (4) extension rails

  • Complete installation

  • Grade 5 hardware kit

Weight Capacity:

400 lbs (182 kg) total maximum load; 200 lbs (91 kg) maximum per display

Universal Monitor Attachment:

Mounting holes must fit within spacing range below
Horizontal = 100 mm (min.) to 800 mm (max.)
Vertical = 100 mm (min.) to 400 mm (max.)

Note:

  • UL certified and listed to UL Standard 1678. This product has been tested to hold four times its maximum load capacity per UL standard (do NOT exceed listed weight capacity in actual use)

  • Full compliance with RoHS directive is in progress

Shipping Dimensions:

37.2" x 22.5" x 9" (945 x 572 x 229 mm)

Shipping Weight:

44 lbs (20 kg)

Warranty:

Three (3) years









Benefits of Ergotron 60-622:



  • Supports two displays for back to back mounting.

  • Install displays in either portrait or landscape orientation.

  • Includes universal adapter for greater panel compatibility.

  • Tension adjustment for variable tilt or locking pin mechanism for precise positioning in 5º increments.

  • Integrated cable management routes cables through NPT pipe and ceiling plate.

  • Lift and Lock for quick installation.

  • Includes 24" (61 cm) of 1.5" NPT pipe.

  • Threaded bottom pipe for additional accessories.

  • Anti-theft security feature.







Literature (Please open the following documents for more technical information)




Ergotron 60-622 Neo-Flex Double Ceiling Mount for Two Large Displays - Installation Manual

- pdf

Ergotron 60-622 Neo-Flex Double Ceiling Mount for Two Large Displays - Market Flyer

- pdf







Ergotron Logo

Hyperlink of all Ergotron products



Model 60-622
Manufacturer Ergotron
Part Number 60-622
