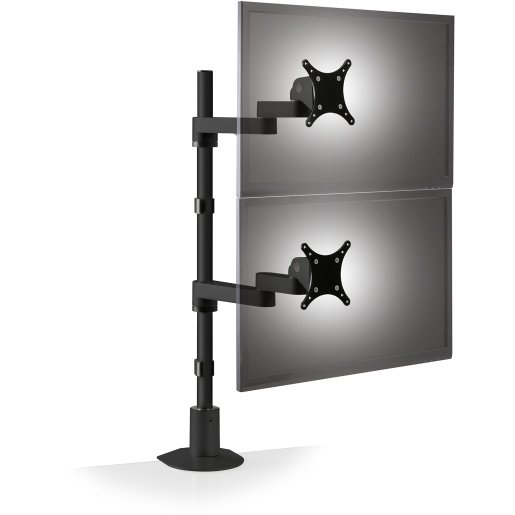

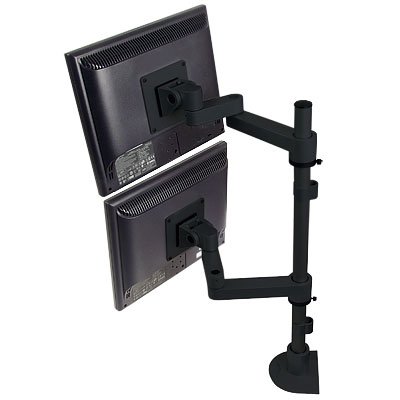

Description of Innovative 9112-D-30-NM:
Mount 2 flat panels, one over another. Each monitor may be positioned independent of the other. Foldable arms adjust vertically up and down the 30" pole, with outer diameter of 1 3/16". The arms can fold to fit in about 3" of space, extend out 14" and carry monitors weighing up to 40 lbs each.
Various pole lengths and extensions are available or can be designed to fit any application you may be looking for. Unique cable management allows cables to be tucked under forearm extensions.

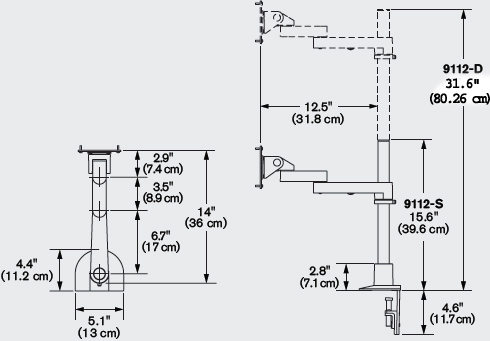

Technical Drawing for Innovative 9112-D-30-NM Articulating LCD Pole Mount Arms with 30" Pole and 14" Horizontal Reach
Features of Innovative 9112-D-30:
30" standard pole, custom pole lengths are available.
Rotates 360 degrees at three joints.
Monitor tilter mechanism can tilt over 200 degrees.
Adjustable tension at joints - ideal for touch-screen applications.
Accessory products are available for holding keyboards or notebook computers.
Ideal for slatwall mounting; can be combined with all Innovative mount options (sold separately).
VESA-monitor compatible - 75mm & 100mm VESA adapters included. Please call for non-VESA options.
Optional upgrade to quick install/release monitor bracket. Consult your sales rep for details.
Specifications of Innovative 9112-D-30-NM:
14" from back of pole
Useable pole length 30"
Monitor Tilt:200 degrees
Monitor Pivot:Landscape to portrait
VESA 75 mm and 100 mm
FLXEmount, Slatwall, Wall, Through-Desk
up to 40 lbs per monitor
Product Options/Accessories8312 Through Desk Mount $73.00 $51.10 8325 Large Wall Mount $74.00 $51.80 8111 FlexMount Mount $79.00 $55.30 8246 Slatwall Mount $85.00 $59.50 7VESA1x2 VESA Adapter Plate 100x200 mm $42.00 $29.40 7VESA2x2 VESA Adapter Plate 200x200 mm $106.00 $74.20 5501 Tablet PC/Laptop Holder
|Manufacturer||Innovative LCD Arms|
|Monitor Arm Types||2 Monitors|
|Number of Monitors||2 Monitors|
