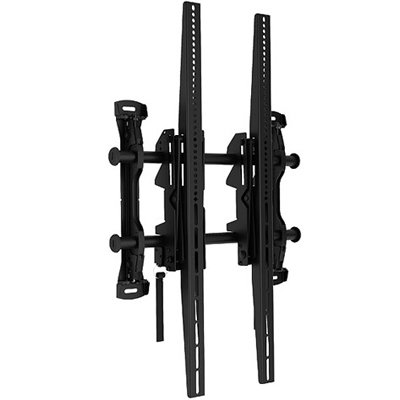

Chief LSMVPU FUSION Micro-Adjustable Portrait Pull-Out Mount

FUSION Portrait Pull-Out Wall Mount for 37" to 63" Displays
Be the first to review this product
Product ID: 16515
List Price: $642.00
Our Price: $471.20
You Save: $170.80
Shipping: $32.00 *
Usually ships in 1 to 2 business days
* applies to Contiguous United States
Add to Cart

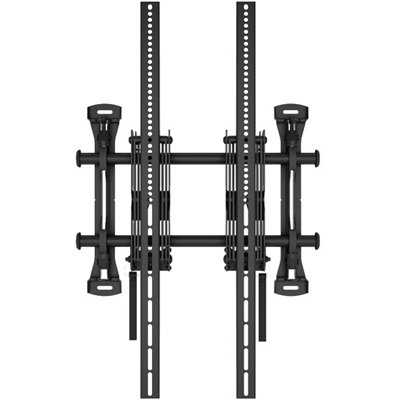

Chief LSMVPU FUSION Portrait Pull Out Wall Mount for 37" to 63" Displays

Description

Chief LSMVPU is great for portrait screen orientation in video wall applications, offering easy installation and maintenance for multiple screens.



Technical Drawing

Technical Drawing for Chief LSMVPU FUSION Portrait Pull-Out Wall Mount (37" to 63" Displays)



Specifications

Color

Black

Lateral Shift

4" (102 mm)

Manual Height Adjustment

1"

Maximum Extension

10.7" (272 mm)

Minimum Depth

3.7" (94.mm)

Mounting Pattern Compatibility (Universal Versions)

200 x 200mm - 800 x 400mm

Orientation

Portrait

Overall Dimensions (H x W x D)

32.5" x 20.6" x 3.7" (826 x 523 x 94mm)

Plumb Adjustment

2.5 degrees

Post-Installation Leveling (Roll)

Yes

Shipping Weight

27.65 lbs

Solution Type

Universal

Typical Screen Sizes

37 - 63"

Wall Stud Compatibility (inches)

12 - 16"

Weight Capacity

150 lbs (68.kg)



Features

  • Allows portrait screen orientation in video walls and recessed applications
  • ControlZone Leveling provides post-installation fine tuning of height and leveling for a seamless installation
  • Centerless Shift provides post-installation lateral shift to easily slide screens apart or together for easy maintenance and perfect alignment
  • ClickConnect offers an audible click when the screen safely engages with the mount
  • Allows fine-tuning plumb adjustment to ensure screens are perfectly vertical for a seamless install, can be used to compensate for walls that are not perfectly flat
  • Built-in cable stand provides easy access under the screen
  • Provides integrated security, just add a padlock
  • Great for single display recessed applications and 2 X 2 video walls
Model LSMVPU
Manufacturer Chief Mounts
Part Number LSMVPU
Mounting Options Wall
Color Black
Lateral Shift 4" (102 mm)
Manual Height Adjustment 1"
Maximum Extension 10.7" (272 mm)
Minimum Depth 3.7" (94.mm)
Mounting Pattern 200 x 200mm - 800 x 400mm
Overall Dimensions (H x W x D) 32.5" x 20.6" x 3.7" (826 x 523 x 94mm)
Plumb Adjustment 2.5 degrees
Shipping Weight 27.65 lbs
Monitor Size 37 - 63"
Wall Stud 12 - 16"
Weight Capacity 150 lbs (68.kg)

Be the first to review this product
