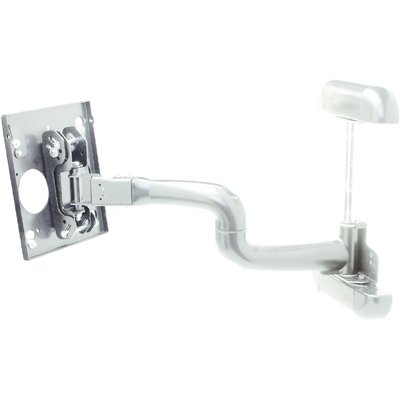

Chief MWHUB or MWHUS Medium Swing Arm Wall Mount - 25" Extension

Full Swing Wall Mount up to 42" Displays. The difference between MWR and MWH is that MWR provides 16” center stud mounting but MWH is single stud mounting only.
Be the first to review this product
Product ID: 16517
Recommended Accessories
List Price: $469.00
Our Price: $355.20
You Save: $113.80
Shipping: $0.00 *  - Free Ground Shipping
Usually ships in 1 to 2 business days
* applies to Contiguous United States



Related Products:



Part Number

Description

MWHUB

Black Flat Panel Swing Arm Wall Mount up to 42 inch Displays

MWHUS

Silver Flat Panel Swing Arm Wall Mount up to 42 inch Displays





Accessories for Chief MWHUB or MWHUS Swing Arm Wall Mount



Chief MAC400 - 90 degree Rotation Adapter for Medium Flat Panel Screens Black

Chief MAC400 Rotation Adapter 90 degree Black

Chief PAC150 Video Conferencing Camera Shelf

Chief PAC150 Video Conferencing Camera Shelf
Chief PAC124B or PAC124S Flat Panel Swing Arm 24 inch Stud Adapter Kit
Chief PAC124 Swing Arm 24" Stud Adapter Kit
Chief PAC715 Video Conferencing 9 inch Camera Shelf Black
Chief PAC715 Video Conferencing 9" Camera Shelf
Chief PACCC1 Center Channel Speaker Adapter for 30 to 50 inch Displays
Chief PACCC1 Center Channel Speaker Adapter


Chief PACLR1 Flat Panel Left or Right Speaker Adapter for 30 to 50 inch Displays
Chief PACLR1 Left or Right Speaker Adapter

Chief PACPC1 Flat Panel Power Filter Kit

Chief PACPC1 Flat Panel Power Filter Kit






General Information



Image of Warranty and Returns

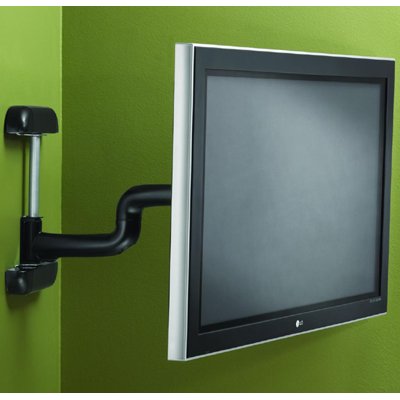

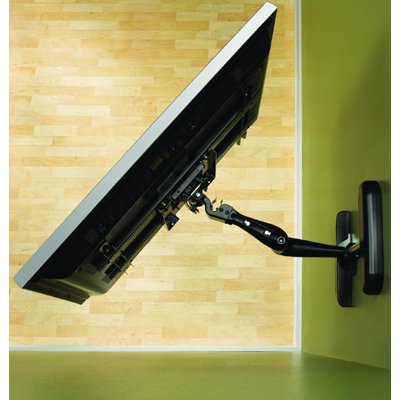

Chief MWHUB or MWHUS Flat Panel Swing Arm Wall Mount up to 42" Displays



Chief MWHUB or MWHUS Flat Panel Swing Arm Wall Mount up to 42" Displays









Features of Chief MWHUS:

  • Single stud mounting with up to 4.5 " lateral shift.

  • Extends 24.88 " (632 mm) from wall and remains low profile in the home position.

  • Chief exclusive ClickConnect mounting system provides simplified tooless latching with an audible click.

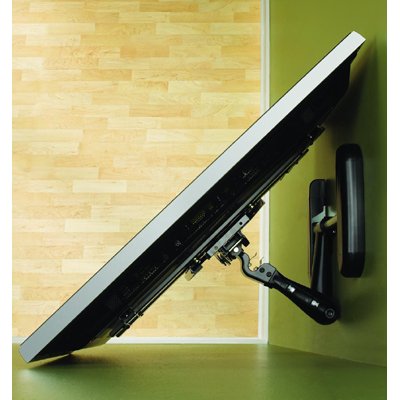

  • Centris Technology provides smooth, fingertip tilt adjustments.

  • Screen can be installed in portrait or landscape orientation (MAC400 accessory can be used to rotate without removing the screen).

  • Mounting guides provided for a hassle-free installation.

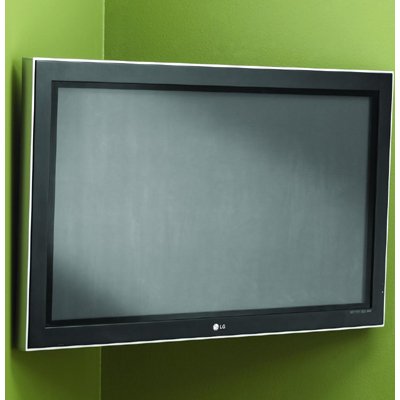

  • Provides positive latch in home position to keep screen tight to wall.

  • CableTrac System provides a fast and effective way to route cables.

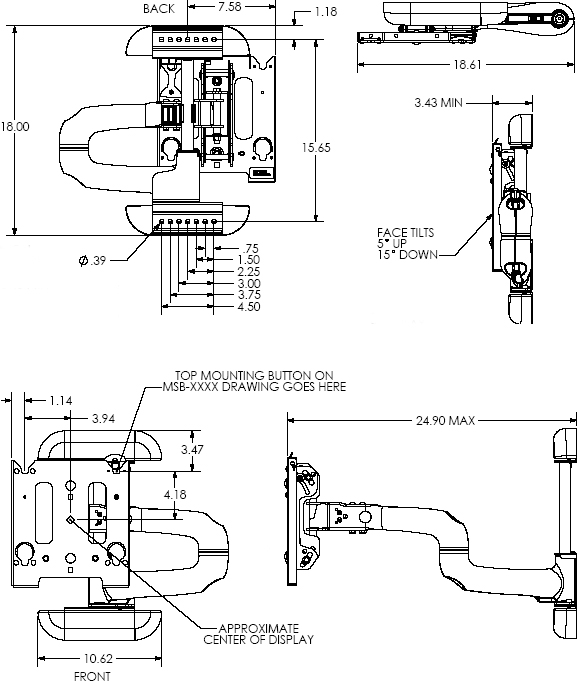

Technical Drawing for Chief MWHUS or MWHUB Flat Panel Swing Arm Wall Mount up to 42" Displays



Technical Drawing for Chief MWHUS or MWHUB Flat Panel Swing Arm Wall Mount up to 42" Displays









Description of Chief MWHUB:

This swing arm wall mount is great solution for flat panel display installations requiring more viewing flexibility.

  • Mounts to a single stud for a more discrete installation
  • See the MWR for 16" center stud mounting and increased weight capacity







Specifications of Chief MWHUS:



Depth from Wall:

3.43" (87 mm)

Extension:

24.88" (632 mm)

Tilt:

+5°, -15°

Roll:

+/-2.5°

Dimensions (H x W x D):

18" x 23.63" x 3.43" (457 x 600 x 87 mm)

Weight Capacity:

100 lbs (45.4 kg)

Integrated Lateral Shift:

2.25" left/right in 0.75" increments

Color:

Black or Silver









Frequently Asked Questions:



Q: What is the difference between the MWR and MWH?:
A: The MWR provides 16” center stud mounting. The MWH is single stud mounting only
.



Q: Is the MWR available as a universal and custom solution?:
A: Yes. Simply order the MWRV and get a VESA universal solution that encompasses 100 x 100, 200 x 100, 200 x 200, 300 x 200 and 400 x 200 mm patterns. See ordering steps to order a custom solution.





Literature (Please open the following documents for more technical information)




Chief MWHUB or MWHUS Flat Panel Swing Arm Wall Mount - Installation Assembly

- pdf

Chief MWHUS or MWHUB Flat Panel Swing Arm Wall Mount - Technical Drawing

- pdf

Chief MSBU Interface Bracket - Technical Drawing

- pdf

Chief MSBU or PSBU Universal Interface Bracket - Installation

- pdf
