Chief MWCU Flat Panel Tilt Wall Mount with CPU Storage for 26" to 55" LCD LED Displays

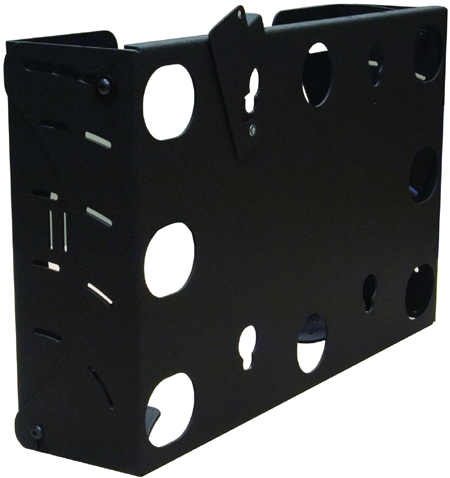

Chief MWCU Flat Panel Tilt Wall Mount with CPU Storage for 26" to 55" Displays

Features of Chief MWCU:

• Complete solution designed to easily integrate a media player into a flat panel installation.

• Provides lockable tilt at 0, 5, 10 and 15 degrees.

• Integrated lateral shift up .75" left or right of 16" center stud system.

• 200 mm Q-Latch installation..

• Screen can be installed in portrait or landscape orientation ( PAC400 or MAC400 accessory can be used to rotate without removing the screen).

Technical Drawing for Chief MWCU Tilt Wall Mount with CPU Storage for 26" to 55" Flat Panel Displays

Description of Chief MWCU:

Provides an all-in-one tilt wall mount solution for both a medium-sized flat panel display and CPU or receiver.

• An ideal solution for digital signage applications

Specifications of Chief MWCU:

Frequently Asked Questions:

Q: Does the MWC require an additional interface bracket?
A: No. Simply order the MWCV and it includes a VESA universal interface or the MWCxxxx flat panel specific model and a custom interface bracket is included.

Literature (Please open the following documents for more technical information)

Chief MWCU Tilt Wall Mount with CPU Storage for 26"-55" Display - Installation Assembly

- pdf

Chief MWCU Tilt Wall Mount with CPU Storage for 26" to 55" Displays - Technical Drawing

- pdf

Chief MSBU Interface Bracket - Technical Drawing

- pdf

Chief MSBU or PSBU Universal Interface Bracket - Installation

- pdf
