We are sorry but item below has been discontinued.

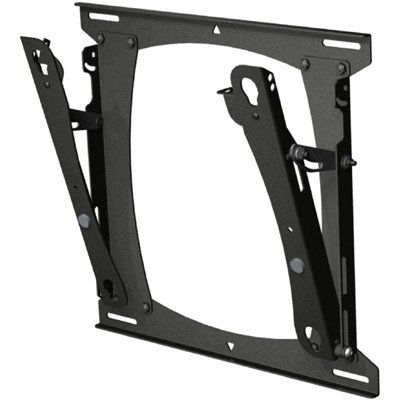

Chief PRO16 Flat Panel Portrait Lockable Tilt Wall Mount for 37" to 65" TV LCD LED Displays

Required additional PSBUB universal interface bracket and purchase separately. The difference between PRO and PLP is that PRO provides rock solid, lock-down tilt adjustment, while the PLP provides fingertip tilt adjustment and expanded cable access.
Be the first to review this product
Product ID: 16528
Recommended Accessories
Our Price: $119.20
Shipping: $11.95 *
Usually ships in 1 to 2 business days
* applies to Contiguous United States





Accessories for Chief PRO16 Portrait Lockable Tilt Wall Mount





Chief PSBUB or PSBUS Universal Interface Bracket for Large Flat Panel Displays

Chief PSBU Interface Bracket for Large Displays

Chief PAC400 - 90 degree Rotation Adapter Plate Black

Chief PAC400 Rotation Adapter 90 degree Black





General Information



Image of Warranty and Returns

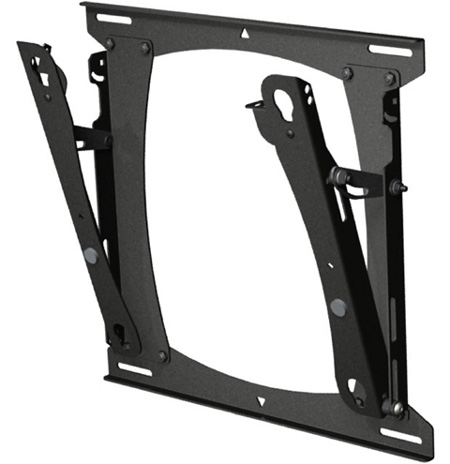

Chief PRO16 Portrait Lockable Tilt Wall Mount for 37" to 65" Flat Panel TV Displays



Chief PRO16 Portrait Lockable Tilt Wall Mount for 37" to 65" Flat Panel Displays









Features of Chief PRO16:

  • Ultra low-profile design.

  • Rock-solid, lockable tilt from 0 - 15°.

  • Q-Latch Mounting System simplifies installation and provides integrated security.

  • Expanded wall plate opening provides cable access and reduces risk of outlet interference.

  • Rapid Level System provides hands-free leveling of mount on wall.

  • Screen can be installed in portrait or landscape orientation ( PAC400 accessory can be used to rotate without removing the screen).

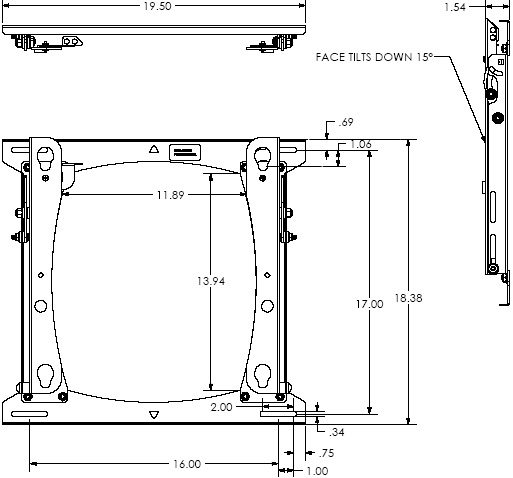

Technical Drawing for Chief PRO16 Portrait Lockable Tilt Wall Mount for 37" to 65" Flat Panel Displays



Technical Drawing for Chief PRO16 Portrait Lockable Tilt Wall Mount for 37" to 65" Flat Panel Displays









Description of Chief PRO16:

A low-profile, rock-solid tilt wall mount for large flat panel TVs, plasma screens. Requires custom or universal PSB interface bracket purchased separately.
  • Great for digital signage and boardrooms
  • Perfect for portrait installations







Specifications of Chief PRO16:



Depth from Wall:

1.54" (39 mm)

NOTE: Depth does not include screen interface (typically 1" or less)

Lateral Shift:

up to 4" (102 mm) left/right of 16" centers

Tilt:

0-15 degree

Overall Dimensions (H x W x D):

18.38" x 19" x 1.54" (467 x 495 x 39 mm)

Mounts to Studs:

16", 20" and 24" on-center

Color:

Black

Weight Capacity:

200 lbs (90.7 kg)









Frequently Asked Questions:

Q: What is the difference between PRO and PLP tilt wall mounts?:
A: The PRO provides rock solid, lock-down tilt adjustment, while the PLP provides fingertip tilt adjustment and expanded cable access.

Q: Is the PRO available as a universal solution?:
A: Yes. Simply order a PROU to receive a universal interface bracket with the unit. The PRO can also be ordered as a custom mount. See ordering steps.

Q: Can I install my screen in portrait?:
A: Yes. For 50" + screens, the PRO will remain hidden behind screen in portrait mode. For screens under 50" refer to PRO16.





Literature (Please open the following documents for more technical information)




Chief PRO16 Portrait Lockable Tilt Wall Mount for 37"-65" Displays - Installation Assembly

- pdf

Chief PRO16 Flat Panel Portrait Lockable Tilt Wall Mount for Large Screens - Technical Drawing

- pdf

Chief PRO16 Lockable Low Profile Tilt Wall Mount for Large TVs, Plasma Screens - Catalog Page

- pdf

Chief PSBU Interface Bracket - Technical Drawing

- pdf

Chief PSBU or MSBU Universal Interface Bracket - Installation

- pdf
