Chief PXRUB Automated Swing Arm Wall Mount for 32" to 65" TVs LCD LED

Automated Swing Arm Wall Mount for 32" to 65" TVs

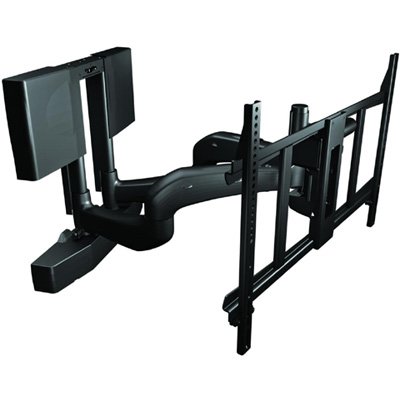

Chief PXRUB Automated Swing Arm Wall Mount for 32" to 65" TVs LCD LED
click image to enlarge
This product has the following options available:
List Price: $3,419.00
Our Price: $2,482.40
You Save: $936.60
Shipping: $0.00 *  - Free Ground Shipping
* applies to Contiguous United States





Accessories for Chief PXRUB Automated Swing Arm Wall Mount






Chief PAC502B In Wall Swing Arm Accessory Black

Chief PAC502B In Wall Swing Arm Accessory






General Information



Image of Warranty and Returns

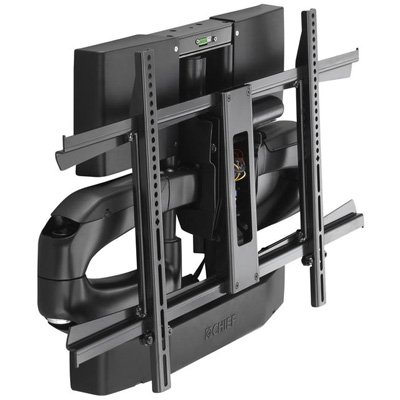

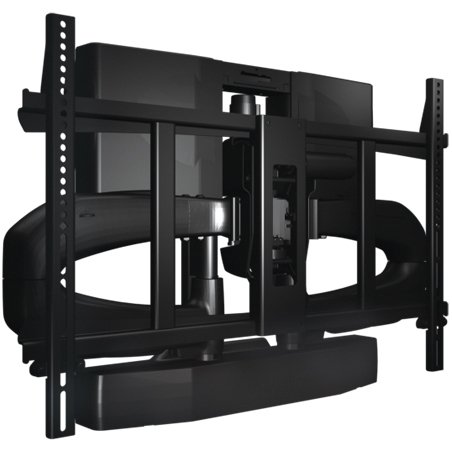

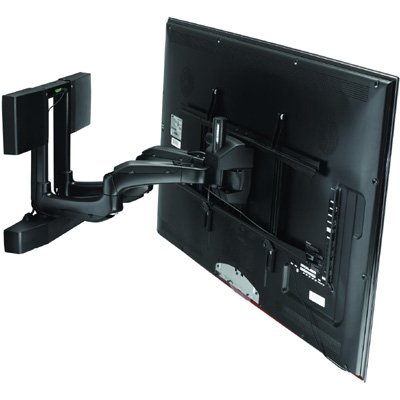

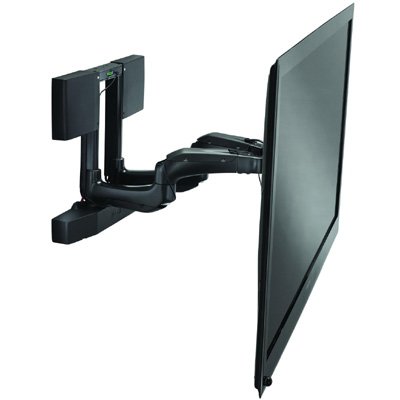

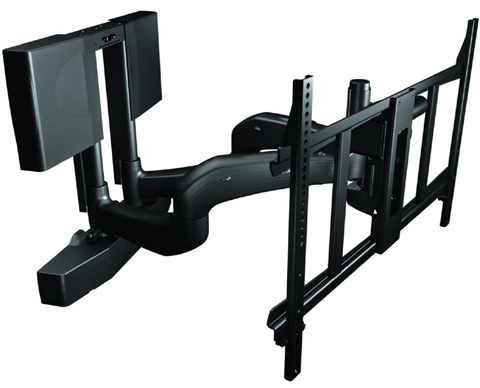

Chief PXRUB Automated Swing Arm Wall Mount for 32" to 65" TVs



Chief PXRUB Automated Swing Arm Wall Mount









Features of Chief PXRUB:

  • Low profile: collapses to 4.46" (113 mm), concealing the mount behind the screen.

  • Extends up to 27" (685 mm).

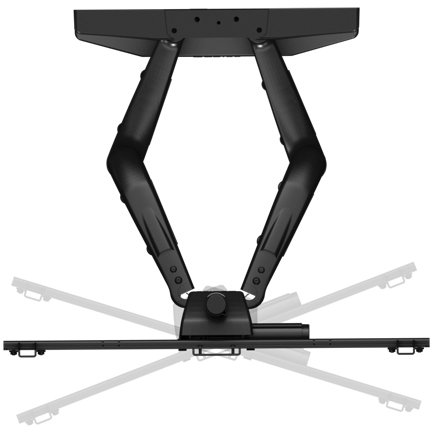

  • Smooth tilt & swivel: 45 degrees of swivel both left and right (90 degrees total) and up to 12 degrees of tilt for optimal viewing.

  • Integrated cable management system.

  • Programmable IR remote with 4 presets.

  • RS485 Serial Control.

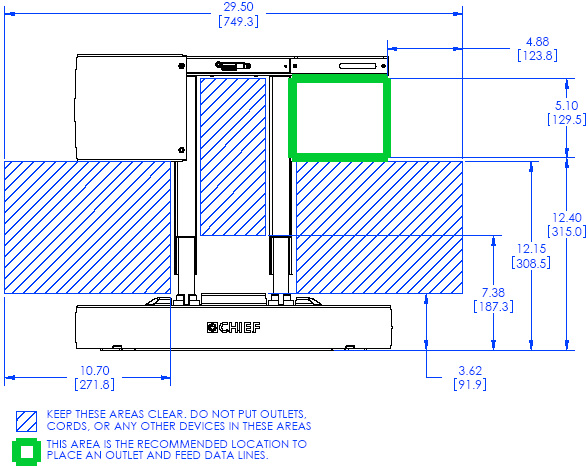

Technical Drawing for Chief PXRUB Automated Swing Arm Wall Mount for 32" to 65" TVs



Technical Drawing for Chief PXRUB Automated Swing Arm Wall Mount









Description of Chief PXRUB:
Fully automated swing arm mount with a low profile, smooth tilt and swivel and built-in cable management. Comes with a programmable IR remote with 4 presets.









Specifications of Chief PXRUB:



Depth from Wall:

4.5" (114 mm)

Extensions:

27" (685 mm)

Swivel:

L: 45 degrees, R: 45 degrees

Tilt:

U: 0 degrees, D: 12 degrees (varies by screen height)

Max Mounting Pattern:

H: 17.75 (450 mm), W: 27.6" (700 mm)

Weight Capacity:

150 lbs (68 kg)

Maxi Display Thickness:

4.25" (107.95 mm)

Compatibility:

Not compatible with Chief flat panel or third party accessories





Literature (Please open the following documents for more technical information)




Chief PXRUB Automated Swing Arm Wall Mount for 32"-65" Displays - Installation Assembly

- pdf
Chief PXRUB Automated Swing Arm Wall Mount for 32" to 65" Displays - Technical Drawing

- pdf









Chief Logo



Hyperlink of all Chief products



Model PXRUB
Manufacturer Chief Mounts
Part Number PXRUB
