Ergotron 97-583-009 Hinged Bow for WorkFit-S

Compatible with WorkFit-S Dual Workstation (33-341-200) and WorkFit-S LCD & Laptop Workstation (33-340-200). Can NOT be used with single-LCD versions of WorkFit-S.
Be the first to review this product
Product ID: 16540
List Price: $85.00
Our Price: $49.00
You Save: $36.00
Shipping: $9.95 *
Usually ships in 2 to 3 business days
* applies to Contiguous United States
Add to Cart

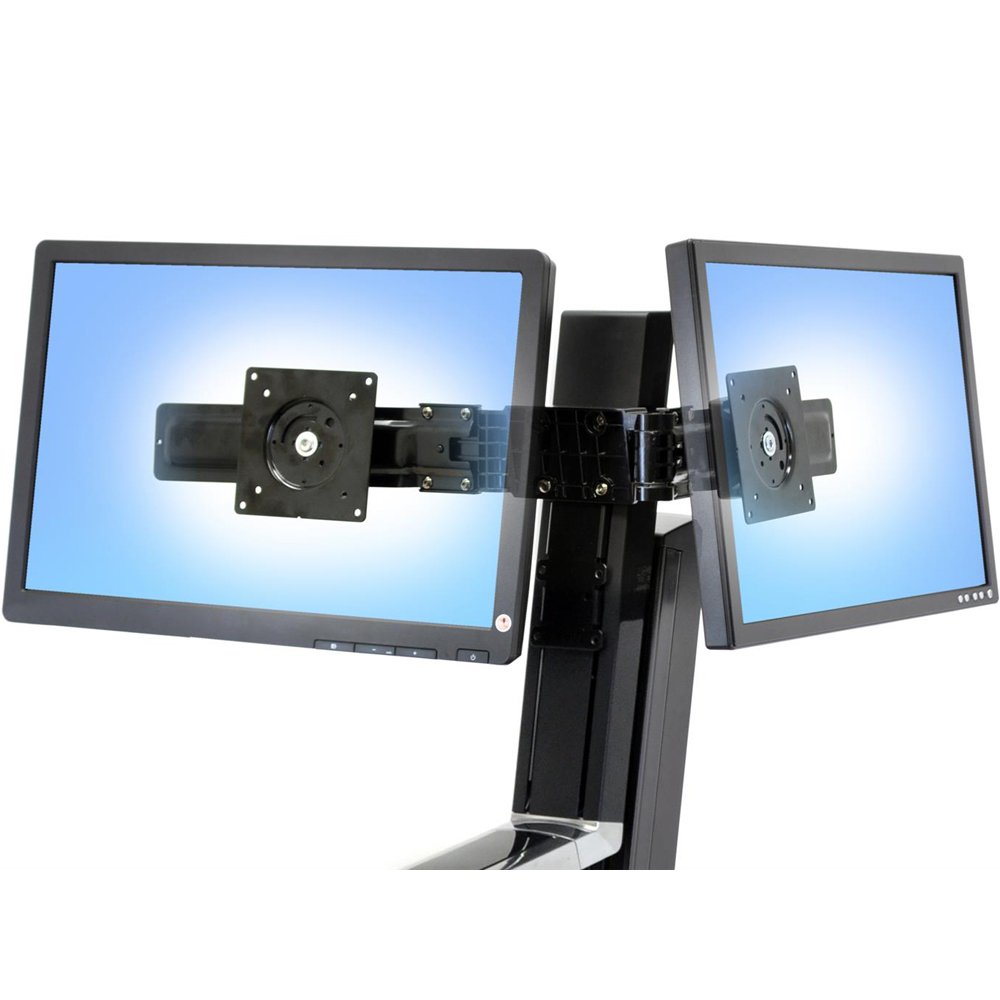

Animation for Ergotron 97-583-009 Hinged Display Bow

Description

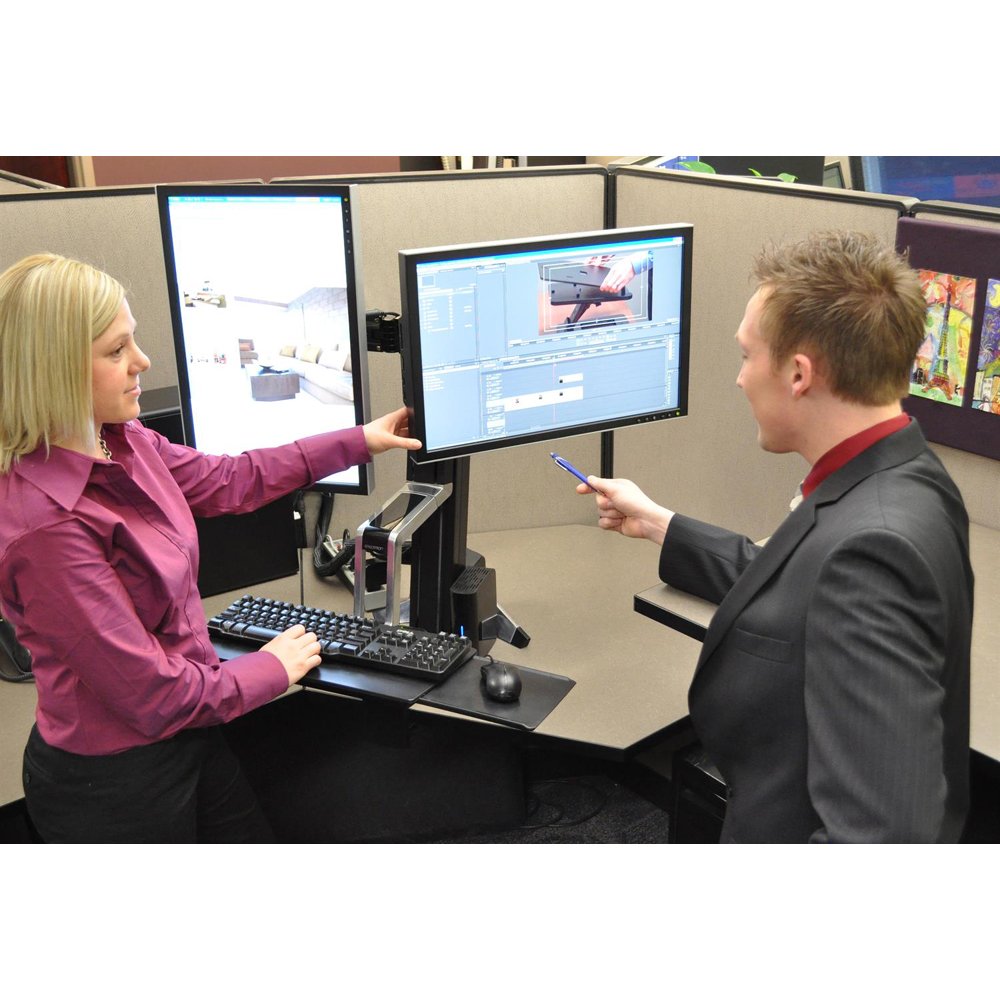

Ergotron 97-583-009 upgrades your WorkFit-S Dual or LCD/Laptop workstation with the ability to pivot one display back so others can easily see your screen. It also allows two 24-inch displays to be mounted on your WorkFit-S. Installs on either right or left side.

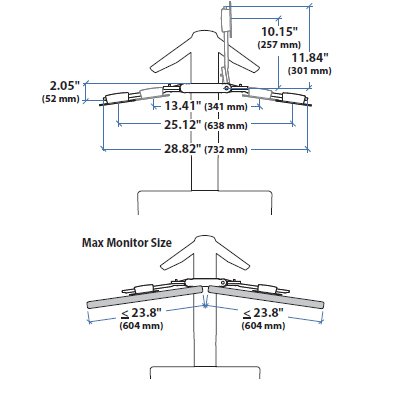

Technical Drawing

Technical Drawing for Ergotron Hinged Display Bow for WorkFit-S



Technical Specifications

LCD size

Capacity

Lift

Tilt

Pan

Rotation

VESA

LCD Size

Capacity

Lift

Tilt

Pan

Rotation

VESA

Up to 24" 12-28 lbs

5.4-12.7 kg

- - 180° 360° P/L MIS-D



Product Information

Part Number:

97-583-009

Description:

Hinged Display Bow for WorkFit-S Dual or LCD/Laptop Sit-Stand Workstation (black)

Includes:

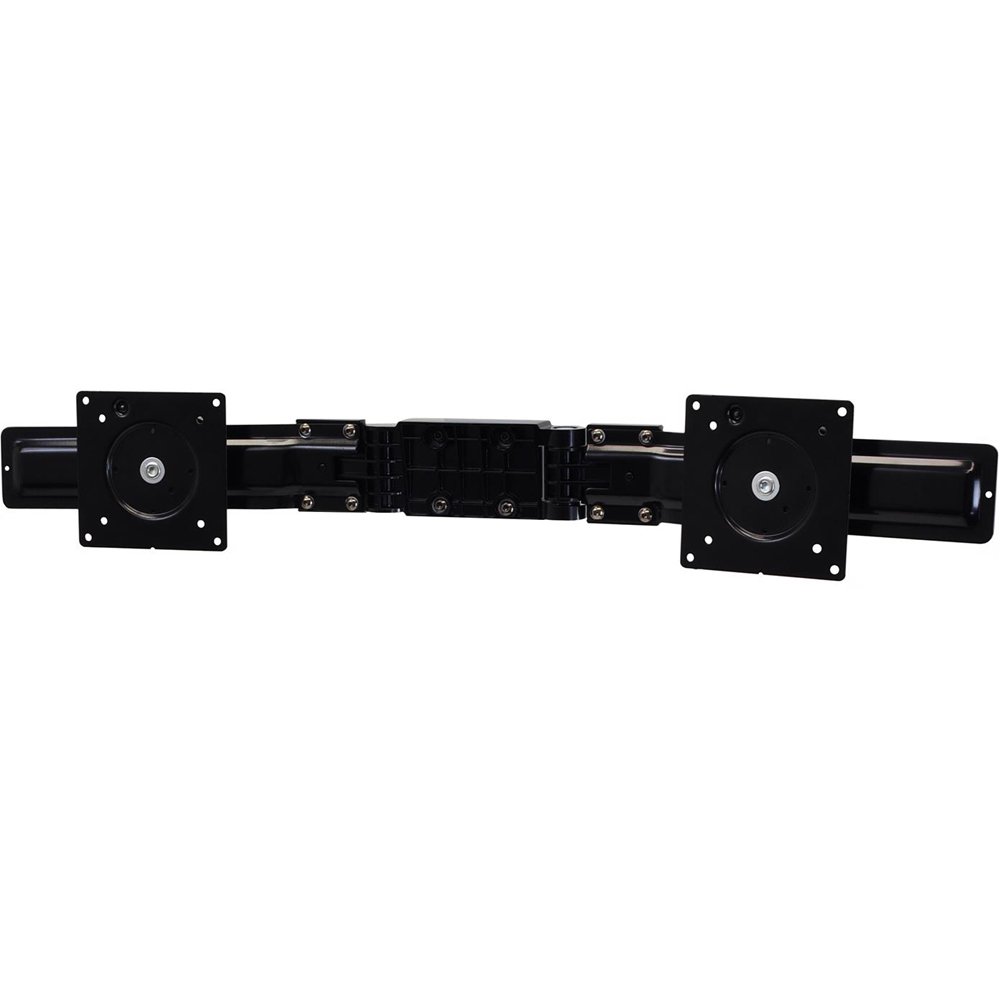

  • Center hinge and two outboard crossbar pieces
  • Mounting hardware

Compatible:

With WorkFit-S Dual Workstation (33-341-200) and WorkFit-S LCD & Laptop Workstation (33-340-200). Can NOT be used with single-LCD versions of WorkFit-S.

Weight Capacity:

LCD weight = 6–14 lbs (2.7–6.3 kg) each, 12–28 lbs (5.5–12.7 kg) combined.

Shipping Dimensions:

12.5" x 4" x 4" (320 x 100 x 100 mm)

Shipping Weight:

3.5 lbs (1.6 kg)

Warranty:

Five (5) years



Benefits

  • Provides a convenient side-to-side pivoting of one display for shared viewing of display.
  • Accommodate larger displays: makes WorkFit-s Dual Workstation compatible with 24" displays.
  • Robust design ensures many years of service.
  • Fit any work area: installs with hinge on either the right or left side to ensure a perfect fit.
  • Ease of installation: design feature prevents improper installation.
  • Conceal and organize cables: display cables can be neatly routed behind displays.

Frequently Asked Questions

Question: Can the Hinged Bow work with Ergotron WorkFit-S Single LD Workstation 33-342-200? Answer: The Hinged Bow will not work with Ergotron WorkFit-S Single LD Workstation as the LD model cannot handle the added weight of the second monitor. You need Ergotron WorkFit-S Single HD Workstation to be able to use the Hinged Bow.
Model 97-583-009
Manufacturer Ergotron
Part Number 97-583-009
UPC 698833016512
Color Black
Monitor Size Up to 24"
Weight Capacity LCD weight = 6–14 lbs (2.7–6.3 kg) each, 12–28 lbs (5.5–12.7 kg) combined
Pan 180 degree
Rotation (P/L) 360 degree
VESA MIS-D
Compatible Compatible with WorkFit-S Dual Workstation (33-341-200) and WorkFit-S LCD & Laptop Workstation (33-340-200)
Shipping Dimensions 12.5" x 4" x 4" (320 x 100 x 100 mm)
Shipping Weight 3.5 lbs (1.6 kg)
Warranty Five (5) years
