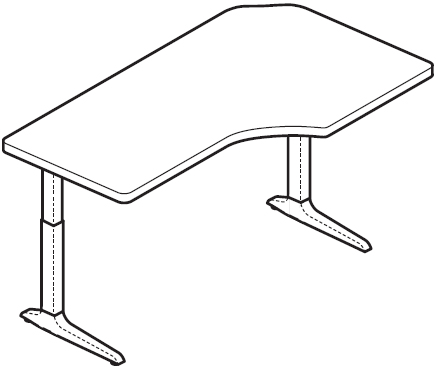

WorkRite Sierra HX Electric Offset Corner 2 Legs Left or Right Height Adjustable Workcenter

Description of Workrite Sierra HX Workcenter:

Raise the bar on workcenter comfort. The new Sierra HX is the most innovative adjustable height workcenter for the professional workplace. The standard crossbar has been eliminated to allow maximum leg clearance for worker comfort. Instead, a mount structure under the worksurface provides unmatched stability and plenty of room to attach a CPU holder and keyboard platform and lots of space to position your mobile pedestal.

Sierra HX features our beautiful Silhouette Collection of worksurfaces. These sleek tops are whisper thin at just ½", use GREENGUARD certified material, and are available in a variety of edge treatments.

Sierra HX Electric workcenters will lift your spirits along with your essential worktools. Quiet motors provide over 175 pounds of lifting force per leg, so no matter how heavy your workload, the Sierra Electric HX is there to support you.

Features of Workrite Sierra HX Table:

• Hidden crossbar design provides optimum knee clearance and under worksurface access.

• Electric control with 3 memory pre-sets.

• Height range: 22"-48" at 1.6" per second.

• Lifting capacity: 2 leg: 225 lbs, 3 leg: 300 lbs

• Available in 24 worksurface styles in over 60 laminate and thermofoil trim options.

• Available in Sierra silver or charcoal finish.

• Base only or full workcenter.

• Compatible with full line of tool bar and rally system accessories.
• Anti-crash feature - an extra sensitive motor that detect if the chair is placed under the table, it would stops and moves up 1/2 inch so the chair can be easily removed.

Environmental Considerations:

• LEED credit eligibility
• Materials and resources credit 4.2
• Recycled content: 20% (post-consumer + ½ pre-consumer) (2 points)
• Innovation in design, credit 1.1-1.4 (1-4 points)
• Implementation of comprehensive ergonomic program
• Standby power is 0.1W
• Values shown for LEED range are for laminate versions; all base-only models contain at least 25% LEED Recycled Content
• Silhouette worksurface made from GREENGUARD certified material

Option 1 and 2 : Choose your Desk Top Position and Surface Dimensions

Model SEHX603624 : 60" x 36" x 24" Surface Dimensions

Model SEHX366024 : 36" x 60" x 24" Surface Dimensions

Model SEHX604224 : 60" x 42" x 24" Surface Dimensions

Model SEHX426024 : 42" x 60" x 24" Surface Dimensions

Model SEHX723624 : 72" x 36" x 24" Surface Dimensions

Model SEHX367224 : 36" x 72" x 24" Surface Dimensions

Model SEHX724224 : 72" x 42" x 24" Surface Dimensions

Model SEHX427224 : 42" x 72" x 24" Surface Dimensions

Model SEHX604230 : 60" x 42" x 30" Surface Dimensions

Model SEHX426030 : 42" x 60" x 30" Surface Dimensions

Model SEHX724230 : 72" x 42" x 30" Surface Dimensions

Model SEHX427230 : 42" x 72" x 30" Surface Dimensions

Option 3 : Switch Position

Under Worksurface (U)

Option 4 : Choose your Base Frame Colors

Colors and patterns are representative only. Actual colors and patterns may vary slightly.

Sierra Silver (S)

Charcoal (C)

Option 5 : Choose your Laminate Top Colors

Classic Collection Laminates:

Colors and patterns are representative only. Actual colors and patterns may vary slightly.

Folkstone Gray

SG241

Opti Gray

SG213

Black

SE101

Ice Fishin

WF181

White Spectrum

AW785

Gateway To the Future AV100

Cavalcade South

AT650

Tropical Gateway

AV110

Summer Heat Wave AO360

IL Palio Papel

AV981

Coriander Fiber

AT981

Leave Likatre

WP120

Looks Likatre

WP110

Appears Likatre

WP115

Seems Likatre

WP125

Hardrock Maple

WM791

Pearwood

WX031

Shaker Cherry

WC521

Oiled Cherry

WC421

Jewel Mahagony

WY351

Black Ashwood

SZ101

Designer Collection Laminates:

Colors and patterns are representative only. Actual colors and patterns may vary slightly.

Spa White

S740T

Almond

ST655

Putty Gray

SG209

Taupe

ST606

Sage

SV720

Cubicle Papel

AG561

Gray Santos

AG291

Negotiating In Geneva PFA60

Beige Crepe

AT251

Opti gray Crepe

AG341

Vanilla Fiber

AW871

Wheat Fiber

AT991

Oatmeal Fiber

AT101

Thyme Fiber

AV721

Shipping Seattle Java PFA48

Pepper Fiber

AG581

Manila Linen

AT231

Gridlock In LA

PFA51

Travelin Light

AT680

Gold Pannin

AT710

Passin Through

AV250

Blue Sandstone

AB191

Caramel Crepe

AT111

Amber Raffia II

AO355

Brick by Brick

AR350

Anigre

WX041

Millwork Cherry

WC431

Honey Maple

WM951

Yorkshire Cherry

WC411

Moroccan Fresco

AT121

Silhouette Collection Laminates:

Colors and patterns are representative only. Actual colors and patterns may vary slightly.

Folkstone Gray with Black Core SG241

White Spectrum with Black Core AW785

Hardrock Maple with Brown Core WM791

Looks Likatre with Black Core WP110

Appears Likatre with Brown Core WP115

Seems Likatre with Brown Core WP125

Oiled Cherry with Brown Core WC421

Black with Black Core

SE101

Thermofoil Collection Laminates (Minimum 100 Desks):

Colors and patterns are representative only. Actual colors and patterns may vary slightly.

Cashmere Fiber

98930

Northern Gray

448395

Studio White Dust 488885

American Natural

498150

Auburn Pear

488898

Hayward Cherry

498120

Clove

490340

Ebony Starlight

89865

Option 6 : Choose your Edge Treatments

Edge Treatments for Laminated Surfaces:

Standard

Colors 01 - 05

Wedge

Black only - 06

Ripple

Black only - 07

Standard Edge Colors:

Colors and patterns are representative only. Actual colors and patterns may vary slightly.

Folkstone - 01

Black - 02

Opti Gray - 03

Almond - 04

HW Brown - 05

Soft White - 53

Edge Treatments for Silhouette Surfaces:

Ergo - S1

Block - S2

Craft - S3

Edge Treatments for Thermofoil Surfaces:

Block - B1

Cascade - C1

Option 7 : Choose your Casters

Sierra Locking Casters

Features:

• Low profile locking casters 2" W x 1.5" H.

• Casters raise work centers by 1" versus installed adjustable glides.

• Can be used with all Workrite adjustable work centers, recommended for Sierra workcenters.

• Four (4) casters required for 2 leg workcenters, five (5) casters required for 3 leg workcenters.

The Following casters are available:

• 95234: 4 casters for 2 leg Tables

• 95235: 5 casters for 3 leg Tables

Option 8 : Pinch Points

Dimensions provided above are nominal. Actual widths of all tables are reduced by 2" and depths by 1". For example, a nominal 72" × 72" × 24" large corner table has an actual dimension of 70" × 70" × 23", and a 72" × 30" rectangular table has an actual dimension of 70" × 29".

Option 9 : HX Spacer

HX Accessory Spacers

Attach the spacer to the leg motor with the #M6x12 mm Button Cap Screws

Secure the support angle to the table top with the #12x3/4" Pan Head Hex Sheet Metal Screws

Features:

• Provides 3" or 5" of additional mounting depth under worksurface for accessories including keyboard platforms.

• 3" spacer can mount to either 24"D or 30"D workcenters; 5" spacer can only be used on 30"D workcenters.

• For 3 leg dual depth workcenters, order spacer for narrowest side.

• Quantity 2 spacers provided.

The following Spacers are available:

• SHX-24SPCR: 3" depth spacer, weight 4 lbs

• SHX-30SPCR: 5" depth spacer, weight 7 lbs

Workcenter Ordering Information

1. Thermofoil minimum quantity 10 tables per base model number (i .e . SCFHX6030). If ordering a total of 10 or more units with multiple base model numbers, please consult Factory for quote.

For base only units, only model # and metal finish is required (example SCF727224-S).

Classic Collection Laminates: 10 working days for quantity 20 or less

Silhouette Collection for only Workrite Sierra HX: 10 working days for quantity 10 or less

Thermofoil Collection Laminates: 6 week for quantity 50 or less.

Designer Collection Laminates: 20 working days for quantity 10 or less.

Note: Dimensions provided above are nominal. Actual widths of all tables are reduced by 2" and depths by 1".

For example, a nominal 72" × 72" × 24" large corner table has an actual dimension of 70" × 70" × 23", and a 72" × 30" rectangular table has an actual dimension of 70" × 29".

Modular, high strength steel frame mounts to worksurface, exceeds ergonomic knee clearance requirements.

All tables have adjustable glides providing ½" adjustment.

Worksurfaces are pre-drilled with mounting location for bases. Joining kit provided for all two piece tops. Silhouette surfaces include screws to mount accessory items under the worksurface.

Special drill bit required, can be ordered separately.

All tables and bases ship unassembled. Weight information is shipped weight for laminate option only.
