Peerless DS-VW760 Full Service Video Wall Mount for 40" to 65" Displays

It is VERY important to contact customer service when someone wants to order to find out the part number that works with the TV they are using, as well as the correct number of Wall Plate Alignment Spacers that need to be ordered. The PLP adapter plates have to be purchased separately and will vary based on the screen that is being used.
Be the first to review this product
Product ID: 16583
Recommended Accessories
List Price: $607.68
Our Price: $580.25
You Save: $27.43
Shipping: $71.94 *
Usually ships in 1 to 2 business days
* applies to Contiguous United States





Peerless DS-VW760 Full Service Video Wall Mount for 40" to 65" Displays



General Information



Image of Warranty and Returns

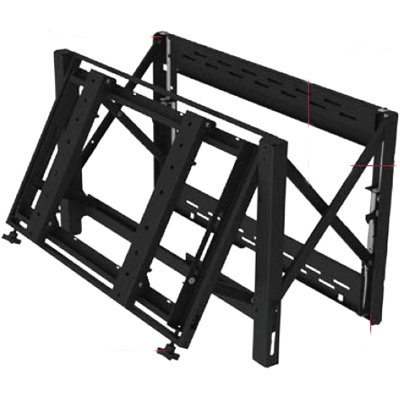

Peerless DS-VW760 Full service Video Wall Mount for 40" to 65" Displays



Peerless DS-VW760 Full service Video Wall Mount for 40" to 65" Displays









Description of Peerless DS-VW760:

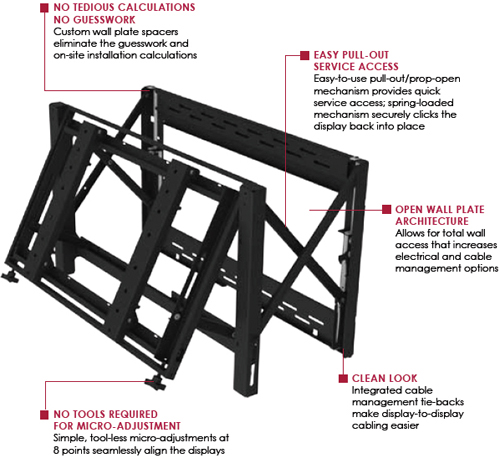

Service access to individual displays in a video wall can be cumbersome, until now. The DS-VW760, a modular mount system allows unlimited display configurations and features an innovative pull-out/prop-open hinge mechanism that provides quick and easy rear of screen access. This unique modular mount system assists in achieving a seamless installation and look with the use of custom wall plate spacers that set into place, drastically reducing installation time without requiring additional tools. With simple installation and easy micro-adjustments, the displays are aligned with precision and held close against the wall for a clean, low-profile appearance.

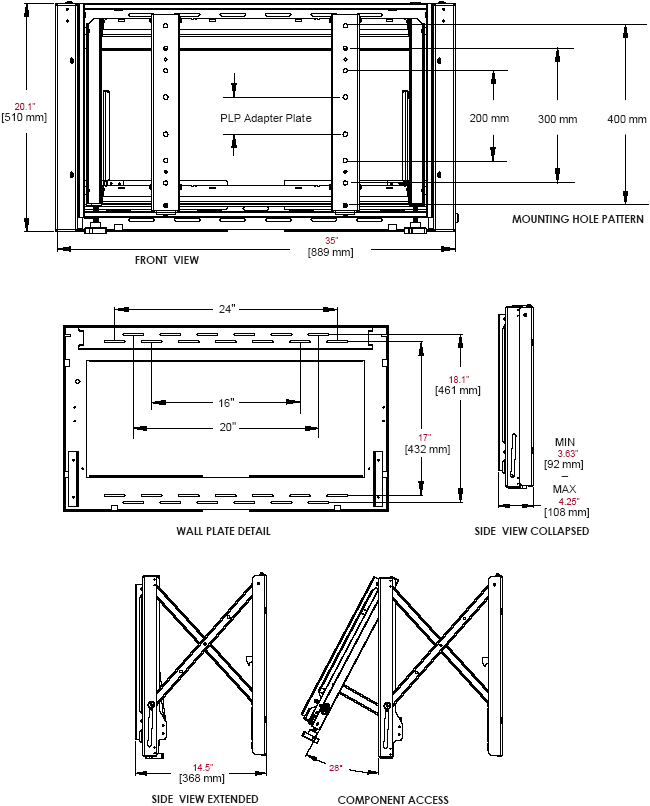

Technical Drawing for Peerless DS-VW760 Full Service Video Wall Mount for 40" to 65' Displays



Technical Drawing for Peerless DS-VW760 Full Service Video Wall Mount for 40" to 65' Displays









Features of Peerless DS VW760:

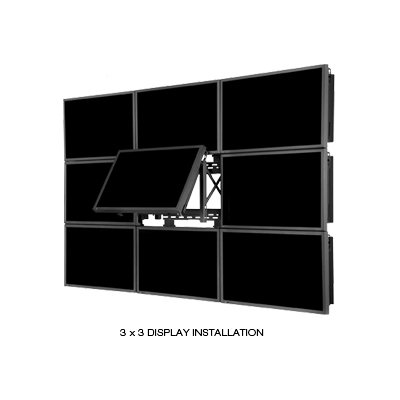

  • Modular mount for unlimited video wall display configurations.

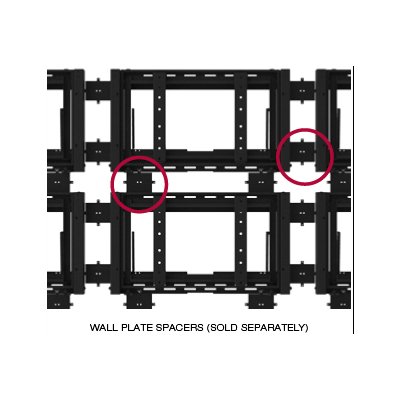

  • Custom wall plate spacers eliminate the guesswork and on-site installation calculations.

  • Tool-less micro-adjustments at 8 points seamlessly align the displays.

  • Displays click securely into place against the wall with spring-loaded mechanism.

  • Displays and mounts sit flush against the wall for a clean side appearance.

  • Snug fit at the attachment point to the display’s mounting hole pattern ensures that each display as it is hung in succession is aligned at the same point.

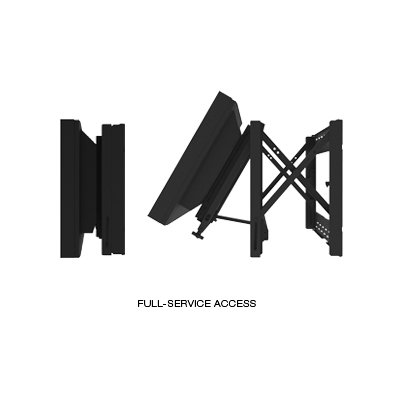

  • Pull-out/prop-open mechanism provides quick service access.

  • Integrated cable management tie-backs make display-to-display cabling simple.

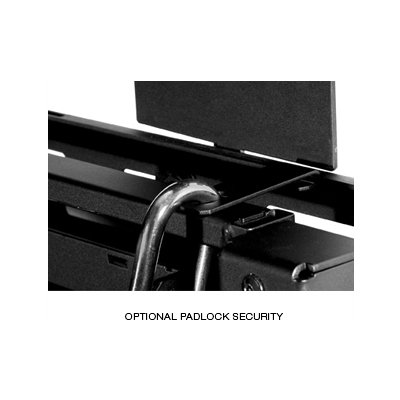

  • Security hardware provided with an option for attaching a padlock for enhanced security.

  • Landscape display orientation.

  • Adjustable VESA mounting hole patterns in 100mm increments, starting at 200 x 200mm up to 600 x 400mm, additional patterns supported with adapter plates.

  • Includes hardware for installation to wood, concrete or cinder block.

  • Supports displays up to 150lb (68.04kg).







Specifications of Peerless DS-VW760:



Dimensions (H x W x D):

35" x 20.1" x 4.25" (889 x 510 x 109 mm)

Product Weight:

48 lb (21.77 kg)

Load Capacity:

150 lb (68 kg)

Finish:

Scratch resistant fused epoxy

Available Color:

Black

Package Size (H x W x D):

38" x 24" x 5" (965.2" x 609.6 x 127 mm)

Package Ship Weight:

52 lb (23.59)

Package Contents:

  • Wall plate

  • Wall mounting assembly

  • Mounting attachment rails

  • Security hardware

  • Fastener packet

Package UPC Code:

735029269533





Literature (Please open the following documents for more technical information)




Peerless DS-VW760 Full Service Video Wall Mount for 40" to 65" Displays - Data Sheet

- pdf

Peerless DS VW760 Full Service Video Wall Mount for 40" to 65" Displays - Installation Manual

- pdf





Peerless Logo

Hyperlink of all peerless products

Model DS-VW760
Manufacturer Peerless Mounts
Part Number DS-VW760
UPC 735029269533
Mounting Options Wall
