Innovative 5700-DC-SPM EVO II Desk Clamp Mount LCD Monitor Arm

Innovative 5700-DC-SPM EVO II Desk Clamp Mount LCD Monitor Arm

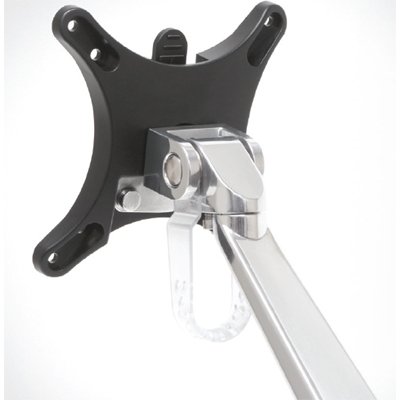

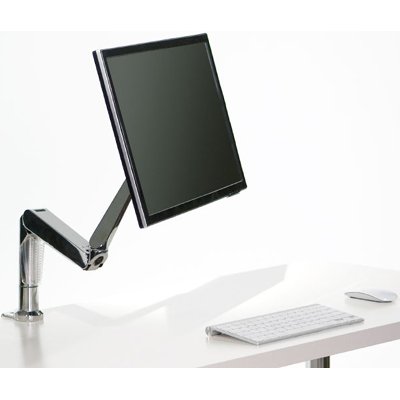

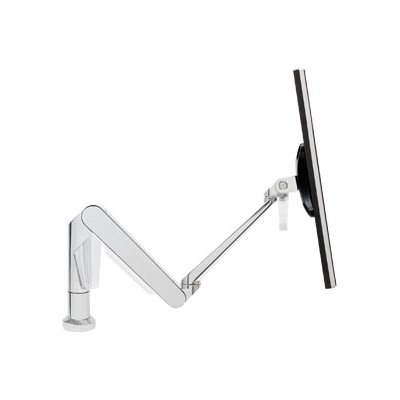

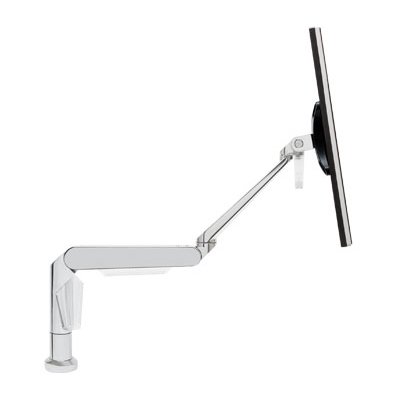

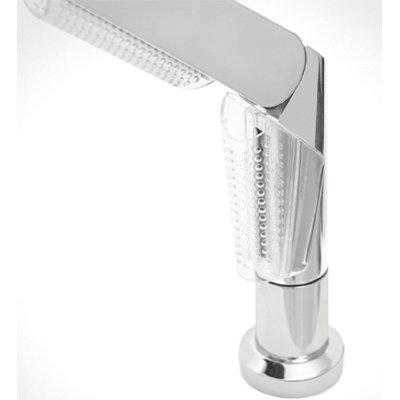

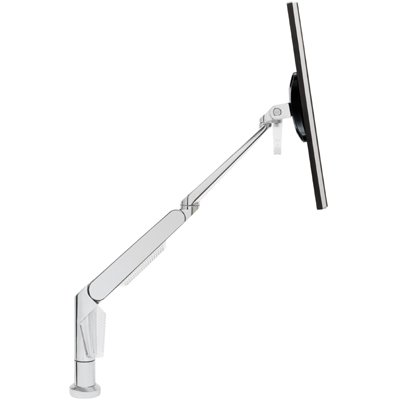

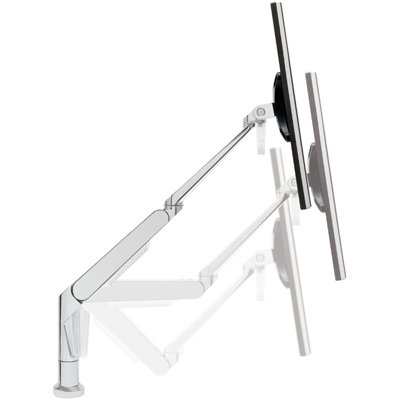

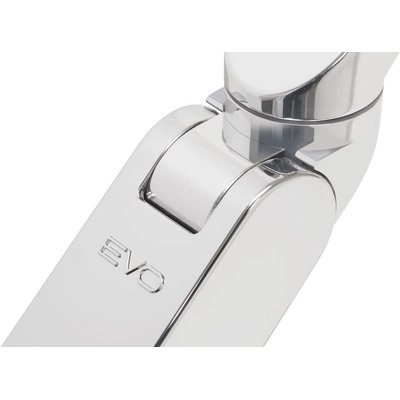

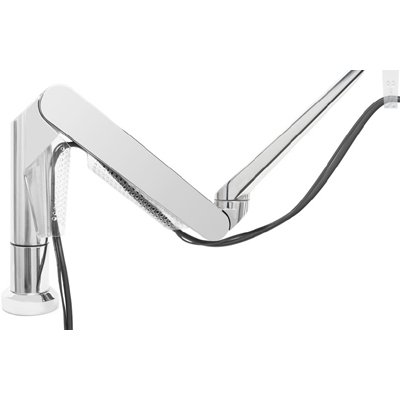

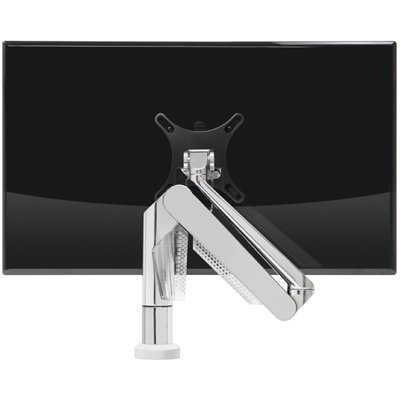

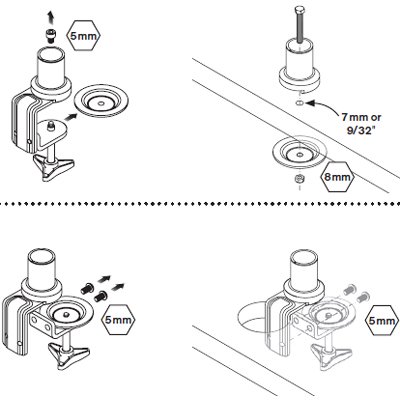

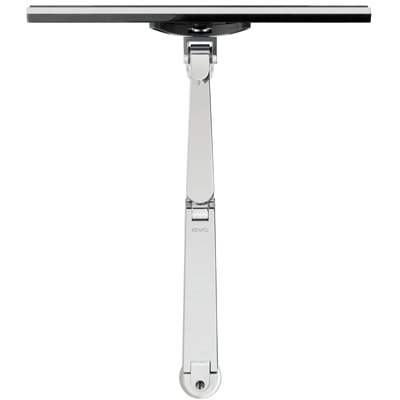

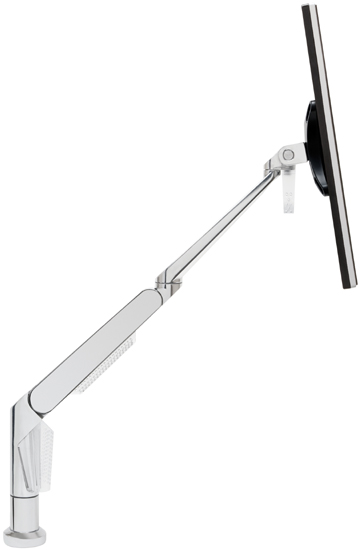

Innovative 5700-DC-SPM EVO II Desk Clamp Mount LCD Monitor Arm Integrated cable management keeps the desk organized Environmentally-friendly manufacturing methods and extensive use of recycled and recyclable components. Innovative 5700-DC-SPM EVO II Desk Clamp Mount LCD Monitor Arm Innovative 5700-DC-SPM EVO II Desk Clamp Mount LCD Monitor Arm in office Reduced installation time: a. Quick-install VESA adapter, b. Desk mount with integrated handle Side view of Innovative 5700-DC-SPM EVO II Desk Clamp Mount LCD Monitor Arm Sleekest Innovative 5700-DC-SPM EVO II Desk Clamp Mount LCD Monitor Arm Effortless motion and adjustment courtesy of revolutionary spring-powered Better Balance technology. Innovative 5700-DC-SPM EVO II Desk Clamp Mount LCD Monitor Arm Innovative 5700-DC-SPM EVO II Desk Clamp Mount LCD Monitor Arm Desk Clamp Mount Converts to Grommet or Bolt Through
click image to enlarge
Product at a glance:
  • Monitor extends up to 18.6"
  • The arm collapses to just 2.4"
  • Monitor weight capacity : 6-20 lbs
  • Mounting Options: Desk Edge (clamp), Grommet and through desk
  • Need 2" grommet hole and 2.5" thick desk with 9/32" hole for the bolt through mounting
This product has the following options available:
List Price: $223.00
Our Price: $184.80
You Save: $38.20
Shipping: $17.60 *
* applies to Contiguous United States
Add to Cart



Innovative 5700-DC-SPM EVO II Desk Clamp Mount LCD Monitor Arm



Innovative 5700-DC-SPM EVO II Desk Clamp Mount LCD Monitor Arm





Description of Innovative 5700-DC-SPM:



A slice of silver. A graceful yet functional accent for your desk. A work tool which enhances your computing experience each and every day. The EVO LCD arm is all this and more.

Innovative created the original EVO in 2005, seeking to pair superior product engineering with a striking aesthetic. The resulting product was launched to worldwide critical acclaim, receiving numerous awards: reddot, Best of Neocon and more.

In 2010, Innovative tasked its design team with a major redesign of this successful product. The bar was set high, sleeker, more graceful, more green, superior function and a dramatically reduced price point. Now in 2011 we are proud to introduce you to a product which succeeds on all counts.

EVO has been entirely redesigned and re-engineered. At its heart is the Better Balance System, a newly-invented counterbalance mechanism which provides true constant force across the arm’s entire range of motion, a feature previously achievable only with expensive and bulky gas cylinders. Better Balance is a revolutionary step forward, improving the user experience while enabling numerous other improvements in the arm’s form factor.

EVO is packed with features which include best-in-class cable management, an integrated quick-install mechanism and a desk mount with multiple options. EVO's sleek profile enhances any workspace… but its effortless and reliable function may just cause you to forget it’s there.

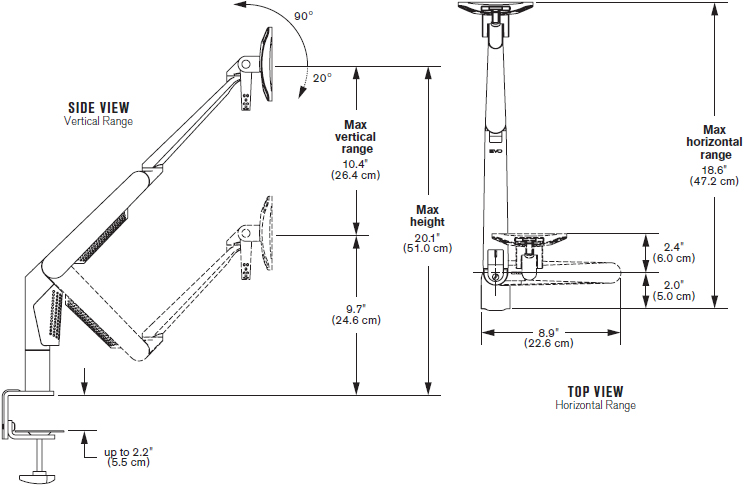

Technical Drawing for Innovative 5700-DC-SPM EVO II Desk Clamp Mount LCD Monitor Arm



Technical Drawing for Innovative 5700-DC-SPM EVO II Desk Clamp Mount LCD Monitor Arm





Features of Innovative 5700-DC-SPM:



The EVO LCD arm is loaded with features you will appreciate:

  • Striking design complements any workspace.

  • Easy to use - simply position monitor where you need it.

  • Quick-install feature saves time on setup.

  • Mount with integrated handle - clamp to desk edge, through grommet, or bolt through desk.

  • View monitor in landscape or portrait orientation.

  • Extend monitor up to 18.6″ (47.2 cm), arm collapses to just 2.4″ (6.0 cm).

  • Integrated cable management.

  • One SKU accommodates monitors from 6-20 lbs (2.7 - 9.0 kg).

  • Great options for distribution: select from a time and packaging saving 10 pack or individually boxed units.





Technical Specifications of Innovative 5700-DC-SPM:



Vertical Range:

+/- 5.2" (13.2 cm) from horizontal

Horizontal Range:

18.6" (47.2 cm)

Rotation:

360° at three joints

Monitor Tilt:

90° up, 20° down from center

Monitor Pivot:

15° right and left from center

Monitor Compatibility:

VESA 75 mm and 100 mm

Cable Management:

Cables are clipped beneath arm

Mounting Options:

Desk Edge, Grommet, Through Desk

Monitor Weight:

6 - 20 lbs (2.7 - 9.0 kg)




Innovative Returns Policy:

All returns must be labeled with a valid Return Authorization (R/A) number, which can be obtained by contacting Ergodirect.com, on the outside of packaging. Restocking fee of 20% will be applied on all returns. Products must be in brand new, saleable condition, and never installed. Defective items may be returned within limits of the Warranty. Non-defective Custom-configured Items are not returnable. All return must be made within 30 days of receipt.

Model 5700-DC-SPM
Manufacturer Innovative LCD Arms
Part Number 5700-DC-SPM
Mounting Options Desk
Monitor Arm Types 1 Monitor
Color Chrome, 104: Vista Black, 124: Silver, 248: White
Vertical Range +/- 5.2" (13.2 cm) from horizontal
Horizontal Range 18.6" (47.2 cm)
Rotation At three joints 360 degree
Tilt Up 90 degree, down from center 20 degree
Pivot Landscape to portrait
Mounting Pattern VESA 75mm and 100mm
Mounting Options Desk
Monitor Weight 6 - 20 lbs (2.7 - 9.0 kg)
Warranty 10 year
