Ergotron 80-106-085 Universal Tablet Cradle

Works with most popular tablets and eReaders, including Apple iPad, Barnes & Noble Nook, Amazon Kindle and HP TouchPad
Be the first to review this product
Product ID: 16621
Recommended Accessories
List Price: $70.00
Our Price: $39.97
You Save: $30.03
Shipping: $9.95 *
Usually ships in 2 to 3 business days
* applies to Contiguous United States
Add to Cart



Ergotron 80106085 Universal Tablet Cradle

Description

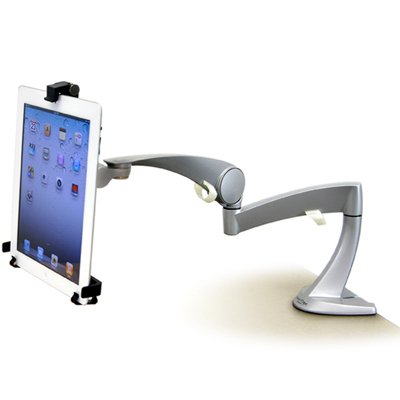

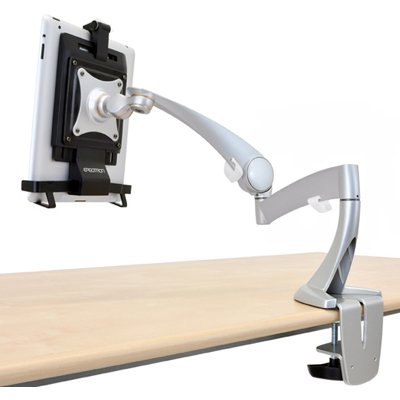

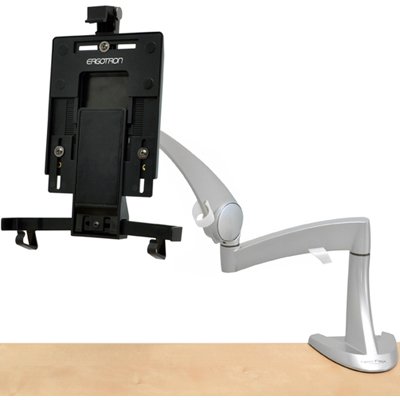

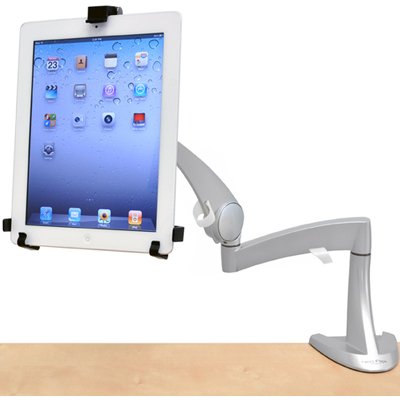

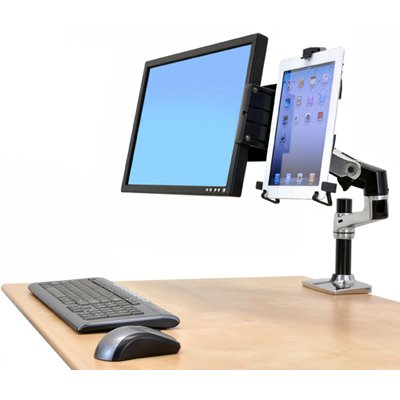

Ergotron 80-106-085 attaches your tablet to an arm or stand. Install your tablet alongside an LCD monitor OR attach it directly to an Ergotron mount.

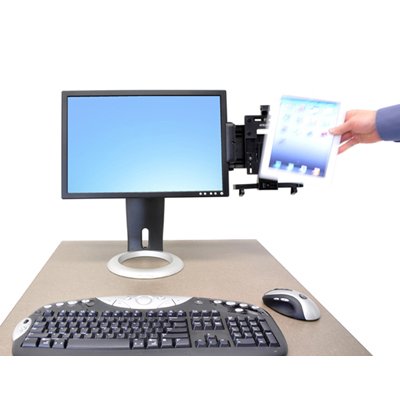

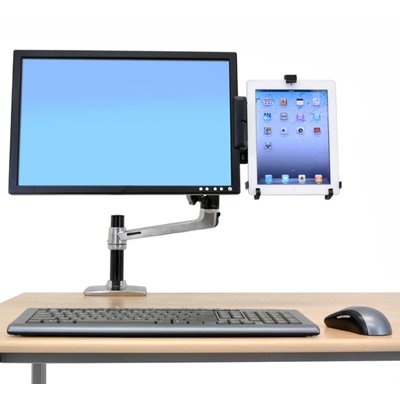

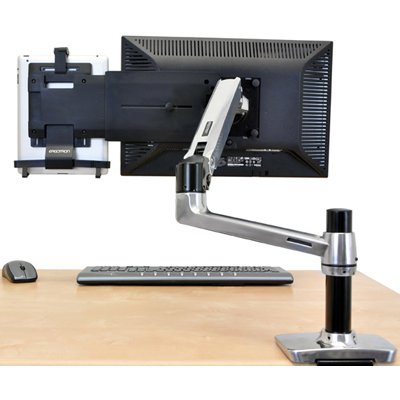

Cradle attaches alongside an LCD monitor using a sliding bracket that attaches to the 75mm/100mm VESA hole pattern interface of an LCD mount. Cradle also attaches directly to select Ergotron mounts to hold a tablet alone with no secondary LCD monitor. Recommended mounts when attaching only a tablet include the Neo-Flex LCD Arm (45-174-300), the 200 Series Arm (45-234-200), and the 200 Series Pivot (45-232-200). When installing a tablet alone, be sure to check minimum weight requirements of the mount - Ergotron LX Arms should not be used with cradle when attaching a tablet absent an LCD monitor.

Works with most popular tablets and eReaders, including Apple iPad, Barnes & Noble Nook, Amazon Kindle and HP TouchPad.



Technical Drawing

Technical drawing for Ergotron Universal Tablet Cradle



Technical Specifications

LCD size

Capacity

Lift

Tilt

Pan

Rotation

VESA

LCD Size

Capacity

Lift

Tilt

Pan

Rotation

VESA

Up to 10" 2.5 lbs

1.1 kg

- - - 90° P/L MIS-D



Product Information

Part Number:

80-106-085

Description:

Universal Tablet Cradle (black)

Includes:

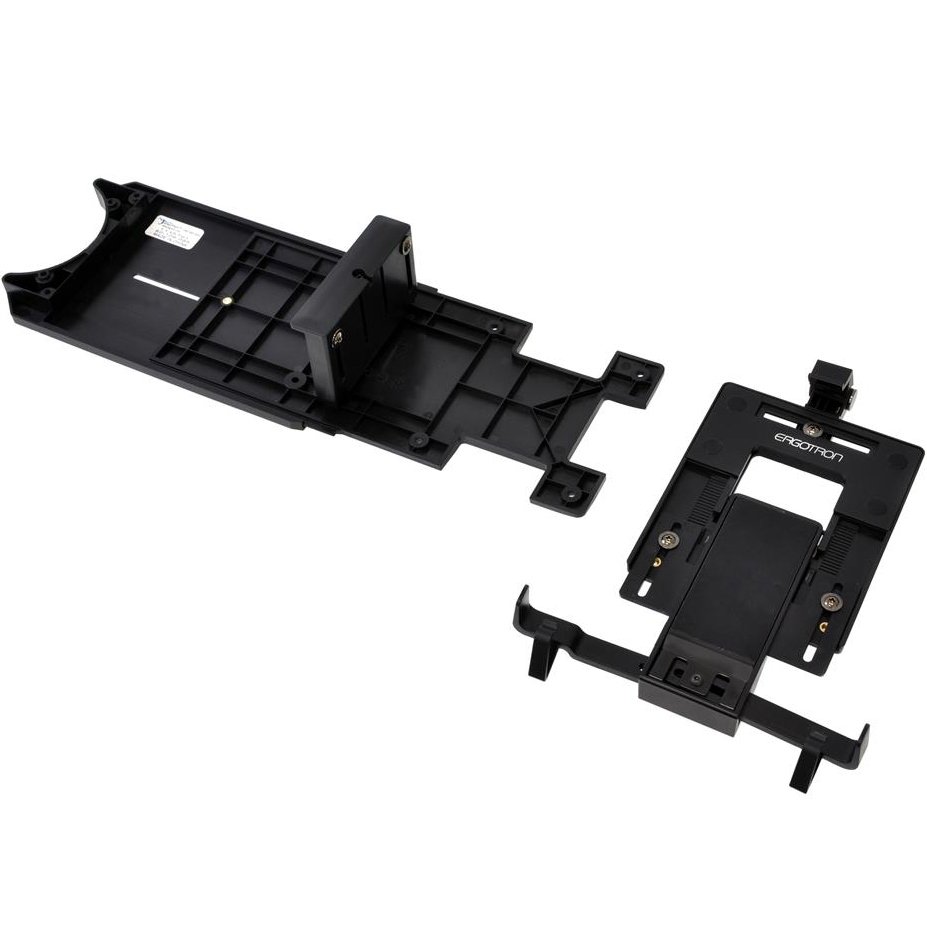

  • Tablet cradle
  • Sliding bracket
  • Attachment hardware
Attachment:
  • Cradle attaches alongside an LCD monitor using a sliding bracket that attaches to the 75mm/100mm VESA hole pattern interface of an LCD mount.
  • Cradle also attaches directly to select Ergotron mounts to hold a tablet alone with no secondary LCD monitor. Recommended mounts when attaching only a tablet include the Neo-Flex LCD Arm (45-174-300), the 200 Series Arm (45-234-200), and the 200 Series Pivot (45-232-200). When installing a tablet alone, be sure to check minimum weight requirements of the mount - Ergotron LX Arms should not be used with cradle when attaching a tablet absent an LCD monitor.

Allowable Tablet Dimensions:

Minimum = 5.5" x 8" (14 x 20 cm), maximum = 8" x 9.75" (20 x 25 cm)

Rotation:

Cradle can accommodate a tablet in either landscape or portrait mode. Depending on the installation and the adjustment capability of the mount, tablet can rotate between the two modes while fastened in cradle.

Mounting Standards:

VESA FDMI, MIS-D, 75/100, C (hole pattern = 100 x 100 mm & 75 x 75 mm)

Shipping Dimensions:

15.7" x 10.7" x 3.75" (398 x 270 x 96 mm)

Shipping Weight:

2.25 lbs (1 kg)

Warranty:

Five (5) years



Benefits

  • Position your tablet within your digital workflow by installing cradle on an Ergotron mount.
  • Adjustable contact points keep ports free.
  • Sliding brackets allow adjustment to a variety of display sizes, with or without case.

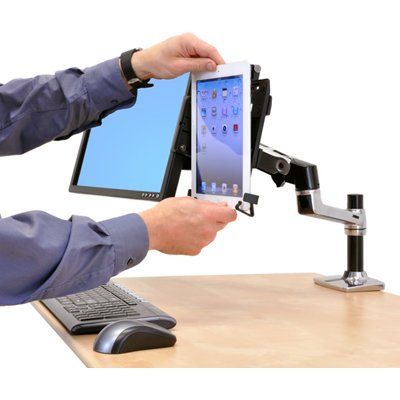

  • Cradle firmly grasps tablet with latch for secure placement.
  • Easily remove tablet from cradle when you need to go .
  • Holds tablet in portrait or landscape mode.
  • Robust metal and composite design dampens shock and vibration.
Model 80-106-085
Manufacturer Ergotron
Part Number 80-106-085
UPC 698833017878
Color Black
Weight Capacity 2.5 lbs (1.1 kg)
Mounting Pattern VESA FDMI, MIS-D, 75/100, C (hole patterns = 100 x 100 mm and 75 x 75 mm)
Shipping Dimensions 15.7" x 10.7" x 3.75" (398 x 270 x 96 mm)
Shipping Weight 2.25 lbs (1 kg)
Dimensions Minimum = 5.5" x 8" (14 x 20 cm); Maximum = 8" x 9.75" (20 x 25 cm)
Rotation (P/L) 90 degree
Warranty Five (5) years
Monitor Size Up to 10". Allowable Tablet Dimensions: minimum = 5.5" x 8" (14 x 20 cm); maximum = 8" x 9.75" (20 x 25 cm).
Mounting Options Tablet Cradle
