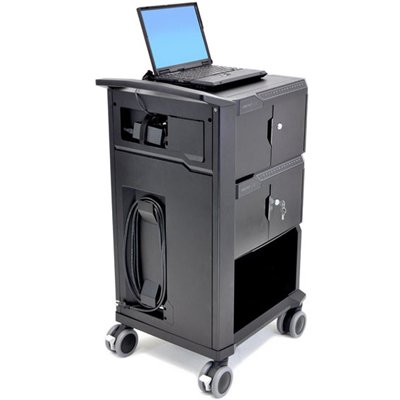

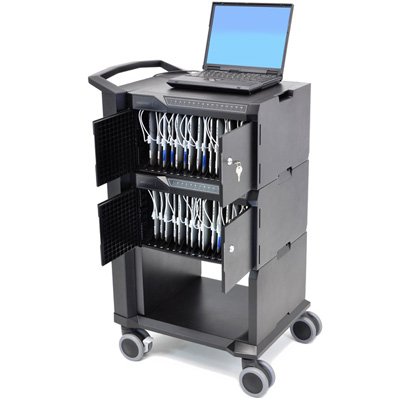

Ergotron 24-238-085 Tablet Management Cart with Individual Status Indicators, Two Modules, 32 Capacity

Compatible Devices: 1. Amazon Kindle, 2. Apple iPad (1st, 2nd and 3rd), 3. Apple iPod Touch (3rd and 4th), 4. Barnes and Noble Nook, 5. Dell Streak 7, 6. HP TouchPad, 7. Lenovo ThinkPad 1838 Series, Lenovo IdeaPad A1 Series.
Ergotron 24-238-085 Tablet Management Cart with Individual Status Indicators, Two Modules, 32 Capacity
click image to enlarge
Our Price: $2,299.00
Shipping: $294.00 * Oversized box 140 pounds. Shipping cost subject to change based on destination
* applies to Contiguous United States







Description

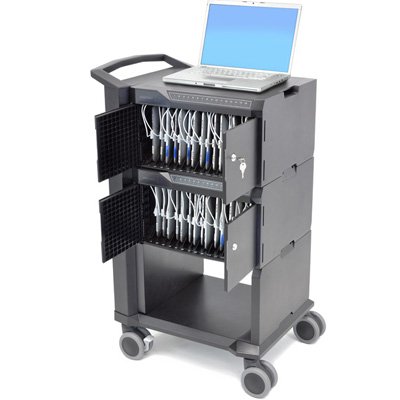

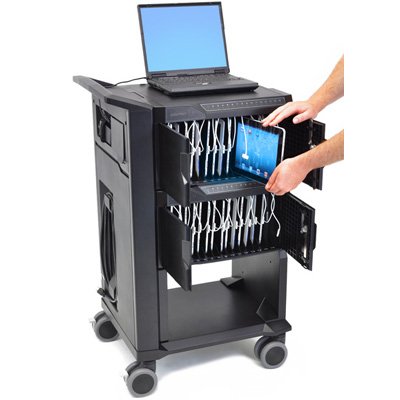

Ergotron 24-238-085 open-architecture cart provides a system for fleet management of tablets by storing, syncing and charging up to 32 devices. The universal design accommodates the iPad, iPod Touch, Barnes & Noble Nook, Amazon Kindle and more.

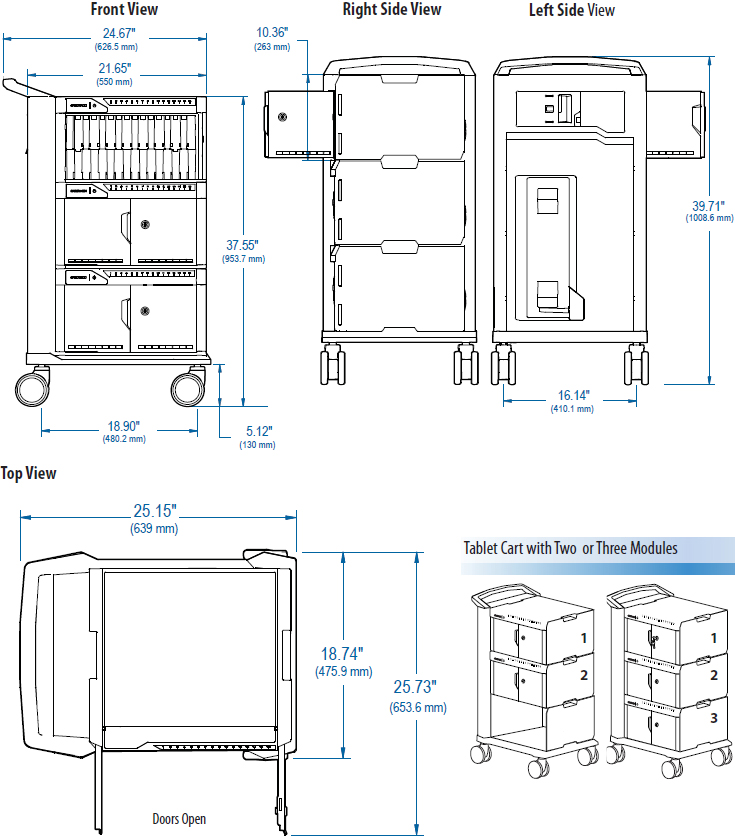

Technical Drawing

Technical Drawing of Ergotron 24-238-085 Tablet Management Charge Sync Cart with ISI



Technical Specifications

LCD size

Capacity

Lift

Tilt

Pan

Rotation

VESA

LCD Size

Capacity

Lift

Tilt

Pan

Rotation

VESA

Up to 10" Up to 2.2 lbs

1.0 kg

- - - - -



Product Information

Part Number:

North America = 24-238-085; Europe and APAC = 24-243-085; Japan = 24-253-085

Description:

Tablet Management Cart with Individual Status Indicators (ISI), Two Modules, 32 tablet capacity (black)

Accessory Power Kit and Auxillary Kit:

For Europe and APAC carts, the accessory Power Kit is REQUIRED: EU = 97-610; UK/HK/SG = 97-611, AU/NZ = 97-612, China = 97-613. Order the kit that complies with your country’s power standards. No auxillary kit is required for North America carts or Japan carts.

Tablet Size:

Accommodates tablet sizes up to 10.8"H x 7.7"W x 0.95"D (27.4 x 19.6 x 2.4 cm), including cover.

Weight Capacity:

Individual tablets up to 2.2 lbs (1 kg); top surface holds up to 25 lbs (11.4 kg)

Certification:

  • UL 60950-1 Information Technology Equipment - Safety, CAN/CSA C22.2 No. 60950; UL 1667 Tall Institutional Carts for use with Audio-, Video-, and Television-Type Equipment.
  • IEC 60950-1 worldwide safety standard.
  • For EMC: FCC part 15 Class A, ICES-003 Class A, AS/NZS CISPR22 Class A, EN55022 Class A, VCCI Class A, EN61000-3-2, EN61000-3-3, EN55024.
  • Complies with USB 2.0 standard.
  • Acoustic testing indicates very quiet operation at 41.4 dBA.
Compatible Devices: The models below have been tested and confirmed compatible. As models are continually introduced, please contact Ergotron Customer Service if there is a specific model that is not listed here.
  • Amazon Kindle (all versions)
  • Apple iPad (1st, 2nd and 3rd generations)
  • Apple iPod Touch (3rd and 4th generations)
  • Barnes and Noble Nook (all versions)
  • Dell Streak 7
  • HP TouchPad
  • Lenovo ThinkPad 1838 Series; Lenovo IdeaPad A1 Series

The following models are not compatible: ASUS Transformer Prime, Blackberry Playbook, Dell Latitude ST, Samsung Galaxy Tab, LG G-Slate, Motorola Xoom, HP Slate 500, Motion CL900, Panasonic Toughpad, Sony S, Toshiba Thrive, Viewsonic Viewpad. These products are compatible with the PS Laptop Charging Cart.

Tablet Cases - The following cases are tested and confirmed to work with the Tablet Management Cart: Brenthaven Bionic, Casecrown Trifold Case, Casecrown Omni, Griffin Intellicase, Gumdrop Drop Tech, Hard Candy Street Skin, Logiix Roadster II, Otterbox Defender Series (without separate top cover), STM Skinny 3, STM Grip, Targus Slim Case. Other cases may also fit - make sure the case cover is smaller than the maximum dimensions of 10.8" x 7.7" x 0.95" (27.4 x 19.5 x 2.4 cm).

Charging Capability:
  • Charges tablets using USB 1.2 charging standard or Apple divider charging.
  • Charges Apple devices at 1.0A. Charges non-Apple devices at 1.5A.
  • All tablets charge at the same time using the power provided through one wall plug. Cart does not need to cycle power.
  • Tablets will not sync and charge at the same time. Master laptop must be unplugged from auxiliary USB outlet for tablets to charge.
Syncing Capability:
  • Syncs tablets using USB 2.0. External USB 2.0-Standard B receptacle provided to plug in laptop.
  • Syncing can be done using a Macintosh or PC laptop. Cart automatically switches from charging to syncing mode when the laptop is plugged into the USB outlet on the cart. USB cable must be unplugged from cart to return to charging mode.
  • Apple devices: Can be setup and configured using Apple Configurator software available from Apple. Can be synced using iTunes software (version 9.1 or later) available from Apple.
  • Apple devices: Syncing time will vary by the number of devices and the amount of data being transferred. This chart shows expected syncing times using the Tablet Management Cart/Module with the designated number of iPads and data. Please note this was using a Macintosh Pro with MacOS X v10.5 and iTunes 9.1. Your times may vary slightly.
  • Non-Apple devices: Will mount as USB drives; files can be updated using standard drag-and-drop file copy methods or by using a software solution if available from the tablet manufacturer or third party software company.
  • Please work directly with your tablet manufacturer to understand the best method for transferring files to large numbers of your specific device.

Designed:

Designed for use with the unique product-specific cable included with the tablet device.

Casters:

Four 4" (100 mm) smooth gliding casters for easy push/pull mobility. Two locking casters ensure lock-in-place stability.

Numbered Storage Locations:

Numbered storage locations help keep carts organized

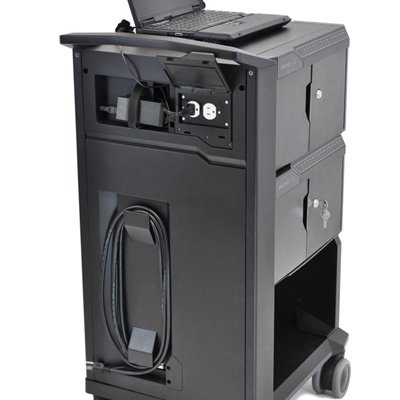

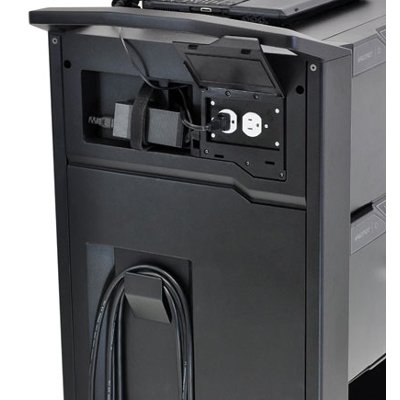

Auxiliary electrical Outlet:

Max current = 3A at 100-120V; max current = 1.5 at 230V. Included with North America/Japan carts; ordered separately in other locales.

Power Cord:

12.5' (3.8 m) long. Includes external cord wrap bracket. Cord is included with North America/Japan carts; ordered separately in other locales.

Product Dimensions:

23"W x 18.4"D x 39.3"H (58.4 x 46.7 x 100 cm)

Product Weight (unloaded):

95 lbs (43.1 kg)

Shipping Dimensions:

46.1" x 29.9" x 22.8" (117 x 76 x 58 cm)

Shipping Weight:

140 lbs (64 kg)

Warranty:

Five (5) years; two (2) years for power module; one (1) year for other electrical components



Benefits

Universal Design

  • Charge and sync up to 32 USB-charged tablets and eReaders, including Apple iPads, Amazon Kindles, Barnes and Noble Nooks and more.
  • Universal design provides flexibility as technology changes. Mix and match tablet brands within the same cart - not limited to just one product!

Super Compact Design

  • Up to 43% smaller, 43% lighter unloaded than competitive product.

Solid, Durable Construction

  • Steel tube and aluminum extrusion framework.
  • Durable, easy-to-clean exterior composed of high-grade fire-retardant ABS.

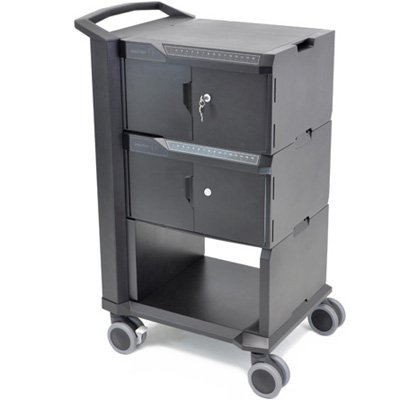

Secure Storage

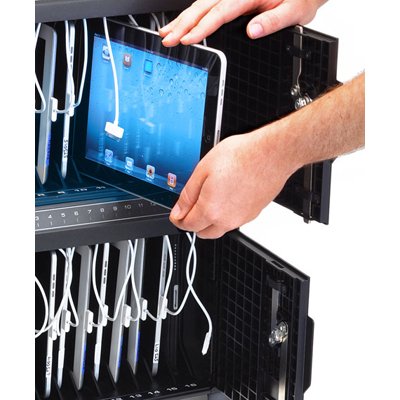

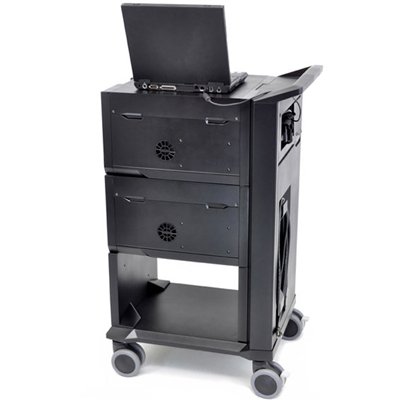

  • Lockable, ventilated enclosed storage area keeps tablets safe and secure.
  • Two-point lock and keys are heavy duty. All modules and carts use the same master key.
  • LED Individual Status Indicators (ISI) provide an easy visual check to verify all tablets are stored and charging or ready to use without having to open doors.

Easy Setup

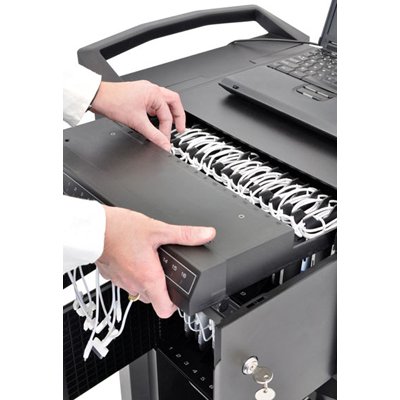

  • Clean, neat cable management drawer located on each module. Secure drawer is separate from tablet compartment, limiting unauthorized access.

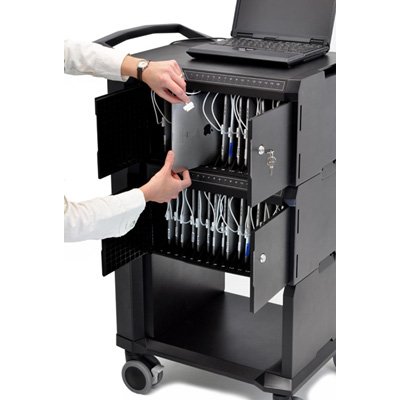

  • Quick one-time customer setup required using the cables provided with the tablet devices.

Certified for Safety

  • Ergotron not only uses UL-certified components, but goes a step further to have UL certify the entire system to guarantee safe use within the classroom, healthcare or enterprise setting.
  • Tested and certified to UL 60950-1 and UL 1667 standards, FCC requirements and all applicable country-specific regulations.



Literature (Please open the following documents for more technical information)

Product Sheet - Ergotron 24-238-085 Tablet Management Charge Sync iPad Cart with ISI

 - pdf

Dimensional Illustrations - Ergotron 24238085 Tablet Management Charge Sync Cart with ISI

 - pdf

User Guide - Ergotron Two Modules 32 Capacity Tablet Management iPad Cart with ISI

 - pdf

Set-up and Go Guide - Tablet Management Cart with Individual Status Indicators, Two Modules, 32 Capacity

 - pdf





Ergotron Logo

Hyperlink of all Ergotron products

Model 24-238-085
Manufacturer Ergotron
Part Number 24-238-085
Color Black
Screen Size Up to 10 in
Weight Capacity Individual tablets up to 2.2 lbs (1 kg); top surface holds up to 25 lbs (11.4 kg).
Tablet Size Up to 10.8"H x 7.7"W x 0.95"D (27.4 x 19.6 x 1.3 cm), including cover.
Compatible 1. Amazon Kindle, 2. Apple iPad (1st, 2nd and 3rd), 3. Apple iPod Touch (3rd and 4th), 4. Barnes and Noble Nook, 5. Dell Streak 7, 6. HP TouchPad, 7. Lenovo ThinkPad 1838 Series, Lenovo IdeaPad A1 Series
Dimensions 23"W x 18.4"D x 39.3"H (58.4 x 46.7 x 100 cm).
Weight 95 lbs (43.1 kg) Unloaded
Warranty Five (5) years; two (2) years for power module; one (1) year for other electrical components.
Shipping Dimensions 46.1" x 29.9" x 22.8" (117 x 76 x 58 cm)
Shipping Weight 140 lbs (64 kg)
Mounting Options Tablet Management Carts
Display Type Tablet
