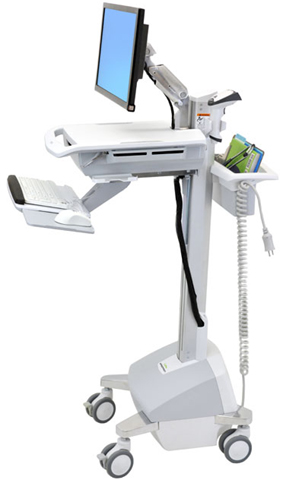

Ergotron SV42-42302 StyleView EMR Cart with LCD Monitor Arm, Life Powered

LCD size: up to 22" and Weight capacity: up to 31 lbs (14.1 kg).
Be the first to review this product
Product ID: 16631
Recommended Accessories
Our Price: $5,053.37
Shipping: $145.95 *
Usually ships in 2 to 3 business days
* applies to Contiguous United States



Accessories for Ergotron SV42-42302 StyleView EMR LCD Cart, LiFe Powered



Ergotron 80-106-085 Universal Tablet Cradle Black
Ergotron 80-106-085 Universal Tablet Cradle
Ergotron 50-193-200 LX Notebook Tray 50193200
Ergotron 50-193-200 LX Notebook/Laptop Tray
Ergotron 80-105-064 Universal CPU Holder
Ergotron 80-105-064 Universal CPU Holder
Ergotron 97-466-214 Four-Outlet Power Strip with Medical-Grade Plug, receptacles
Ergotron 97-466-214 Medical Grade Power Strip









Ergotron 60-575-003 T-Slot Bracket 60575003
Ergotron 60-575-003 T Slot Bracket
Ergotron 97-512-009 StyleView Rear VESA Mount Black
Ergotron 97-512-009 StyleView Rear VESA Mount
Ergotron 97-507-216 Utility Shelf for Carts White
Ergotron 97-507-216 Utility Shelf for Carts
Ergotron 97-435-009 Display Security Bracket 97435009
Ergotron 97-435-009 Display Security Bracket

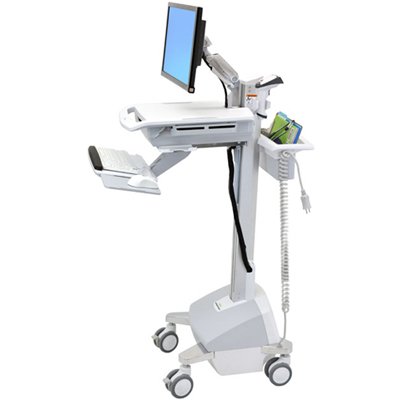

Ergotron SV42-42302 StyleView EMR Cart with LCD Monitor Arm, LiFe Powered



General Information



Image of Warranty and Returns

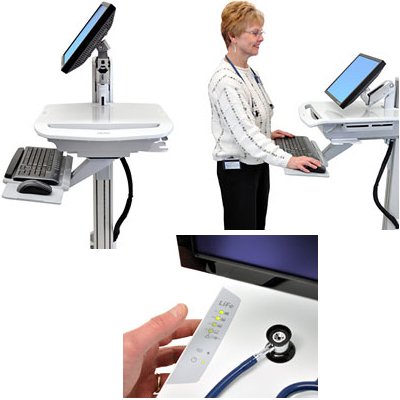

Ergotron SV42-42302 StyleView EMR Computer Cart with LCD Monitor Arm, LiFe Powered

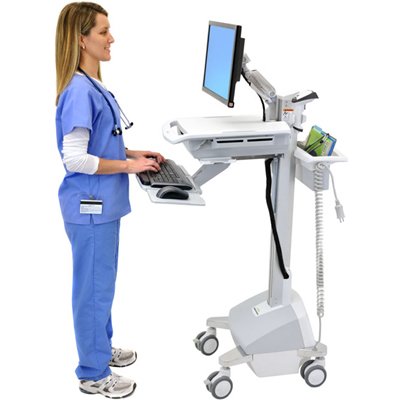

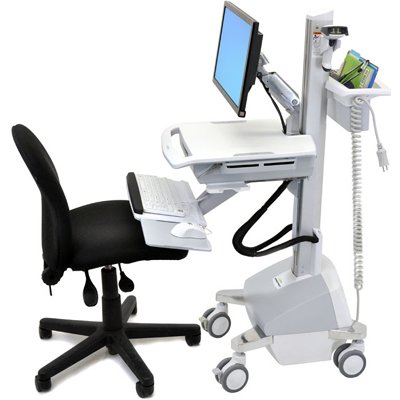

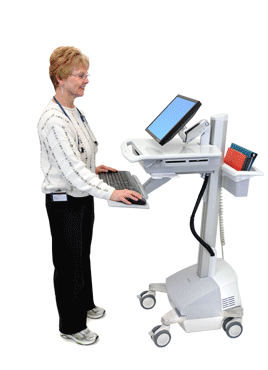

Ergotron SV42-42302 StyleView EMR Cart with LCD Monitor Arm, LiFe Powered









Description of Ergotron SV42-42302:



Ergotron is increasing customer choice with the addition of Lithium Iron (LiFe) battery technology to our point-of-care electronic medical records portfolio.

Stay productive and on the go with our LiFe power system. This innovative, truly ergonomic and easy-to-maneuver healthcare cart features sit-to-stand height adjustment, independent screen positioning and an adjustable back-tilt keyboard tray.









Technical Drawing of Ergotron SV42-42302 StyleView EMR Cart with LCD Monitor Arm, LiFe Powered



Technical Drawing of Ergotron SV42-42302 StyleView EMR Cart with LCD Monitor Arm, LiFe Powered









Technical Specifications:



LCD size

Capacity

Lift

Tilt

Pan

Rotation

VESA

LCD Size

Capacity

Lift

Tilt

Pan

Rotation

VESA

Up to 22"

Up to 31 lbs

14.1 kg

27"

68 cm

65°

180°

360° P/L

MIS-D









Product Information:



Part Number:

SV42-42302

Description:

StyleView EMR LCD Cart, LiFe Powered, Arm (white, grey and polished aluminum)

Includes:

  • LCD arm

  • Worksurface

  • Secure CPU compartment

  • Ethernet ready-on function and four-port USB hub

  • Scanner holder bracket

  • Mouse holder

  • Wrist rest

  • Back-tilt keyboard tray

  • Left/right mouse tray

  • Rear handle

  • Storage basket

  • Cable storage

  • Four casters (two locking)

  • Single-battery 40 Ah LiFe power system

  • 10-foot (3 m) coiled cord

  • Two hospital-grade AC outlets

  • Power system user interface

  • StyleLink software

Total maximum load on height-adjustment assembly:

31 lbs (14.1 kg).

This is the sum of the following components: LCD arm = 5–11 lbs (2.3–5 kg); worksurface and keyboard tray ≤ 8 lbs (3.6 kg); CPU compartment ≤ 12 lbs (5.5 kg)

Note:

If the combined LCD and CPU weight is greater than 23 lbs (10.4 kg) then the CPU must be mounted to the rear of the cart using the Universal CPU Holder accessory (ordered separately)

LCD and Worksurface:

Adjust 20" (51 cm) in tandem; LCD Arm adjusts 7" (17.8 cm) independently; maximum LCD height adjustment = 27" (68.6 cm)

Monitor up/down Tilt:

+60°/-5°

Portrait Screen Orientation:

Portrait screen orientation may be incompatible with widescreen displays > 19"

True Ergonomics:

  • Ergonomic back-tilt keyboard tray with left or right mouse tray ensures wrists remain in a neutral position during data entry - avoid repetitive-stress injuries while increasing comfort and productivity

  • Designed for users 5'0" to 6'1" (152 to 185 cm) tall and for prolonged sitting or standing applications. Unlike competitive offerings, shorter users can work comfortably and productively in a seated position

  • LCD height adjustment range of at least 25" (63.5 cm) is standard on all LCD carts

  • Patented CF lift-and-pivot motion technology minimizes forces required to adjust cart position: Casters, height adjustment, LCD tilt and pan all require just a touch

  • Actual cart weight is 97 lbs (44.1 kg), making system relocation easy

  • Arm adjusts screen down low to the worksurface for people wearing bifocals or using a tablet PC

Safe:

  • Power System User Interface integrated conveniently on the worksurface (includes visual and audible battery status indicator)

  • For patient and caregiver safety the LiFe power module is fully certified to UL 60601-1; FULL power system and cart-level certification is in progress. Complies with EMI limits of FCC Part 15 Class A

  • Surfaces are treated with Agion Antimicrobial for product protection; handles are smooth and continuous for improved clean ability

  • Environmentally clean: RoHS, REACH, WEEE and EU (94/62/EC) packaging compliant

  • Durable, easy-to-clean exterior composed of aluminum, high-grade plastic and zinc-plated steel promotes infection control

  • One-piece worksurface with no seams; easy-to-clean design promotes infection control

  • Lockable, ventilated enclosed storage for closed notebook, thin client or CPU. Keys and locks are heavy-duty

  • Front-locking casters

  • Designed to meet guidelines established by the American National Standards Institute for computer use

Service:

  • Includes FREE StyleLink with enterprise capabilities: Install, access and manage your StyleView power systems from a remote location across WAN, LAN, or VPN

  • Covered by Global Service Program - 24/7 coverage

All the Details Covered:

  • Four amber LEDs provide light over keyboard tray; includes 15-minute auto shut-off

  • Button for LED lights and Ethernet ready-on is located conveniently on worksurface

  • Easy access to components for field replacement and serviceability: keyboard LEDs, PC boards (including the user interface). Easier, faster upkeep and service means less down time

  • Pre-routed cables provide quicker integration with equipment

  • TAA (Trade Agreements Act) compliant

  • Universal mounting slot for accessories and equipment

  • A unique cable management system conceals and organizes cords, making cleaning easy

  • Ships fully assembled and is easily accessible from container

  • Four (4) ultra-smooth gliding casters for extremely easy push/pull mobility; two locking casters ensure lock-in-place stability

Compatibility and Dimensions:

  • Open-architecture design accommodates most laptops - even widescreen - and allows for future hardware upgrades

  • Storage compartment for closed notebook, thin client or CPU: 15.75"W x 14.75"D x 3.75"H (40 x 37.5 x 9.5 cm); larger computers can mount to rear of cart with Universal CPU Holder accessory (ordered separately)

  • Compact Wheel-to-Wheel Base Dimensions: 15.5" x 17" (394 x 432 mm)

  • Worksurface Dimensions: 19.75"W x 19.6"D (502 x 498 mm)

  • Mounting Standards: VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)

  • VAC = 120V/60Hz

  • Grounded Plug & Outlet = NEMA 5-15P Hospital Grade

  • 40 Ah Power System with one (1) 40 Ah, 12 V DC, Lithium Iron Phosphate (LiFe) battery

Shipping Dimensions:

24"W x 32"D x 56"H (61 x 81 x 142 cm)

Shipping Weight:

131 lbs (59.5 kg); actual cart weight = 97 lbs (44.1 kg)

Warranty:

Five (5) years for cart, two (2) years on all power supply components and battery









Benefits of Ergotron SV42-42302:



  • LiFe makes the cart extremely lightweight and easy to move.

  • Ultra fast recharge ensures caregiver and cart uptime: A full recharge from full discharge can be completed in about two hours.

  • Long battery ‘LiFe’ minimizes time and cost for maintenance and replacement.

  • For patient and caregiver safety the LiFe power module is fully certified to UL 60601-1; FULL power system and cart-level certification is in progress. Complies with EMI limits of FCC Part 15 Class A.

  • Truly ergonomic design accommodates the largest range of nurses and other caregivers; designed for sitting or standing with single-motion fluid adjustment - helps promote caregiver wellness and productivity.

  • StyleView’s small footprint, with ultra-smooth gliding casters, travels easily across crowded carpet or hard surface floors and is perfect for space constrained areas.

  • Open-architecture design accommodates multiple configurations: closed notebooks with monitor, CPU and monitor, thin clients, tablets, all-in-one computers and future hardware upgrades.

  • Surfaces are treated with Agion Antimicrobial for product protection.

  • LCD and keyboard pan side-to-side for closer access while interacting with clients; arm also reaches low for people wearing bifocals or using a tablet PC.

  • Push-button Ethernet ready-on function embedded in worksurface: Awaken enclosed computer from energy-saving hibernation mode with the touch of an external button - facilitates easy compliance with EnergyStar 4.0 guidelines.

  • Passes Ergotron’s 10,000-cycle motion test, which ensures a minimum of five years trouble-free sit-to-stand height adjustment.
