We are sorry but item below has been discontinued.

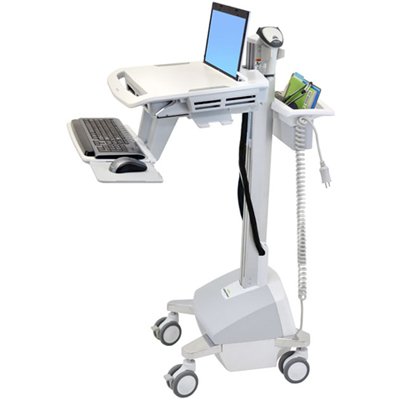

Ergotron SV42-42303 StyleView Ergonomic Healthcare EMR Laptop Cart, LiFe Powered

LCD size: up to 17" and Weight capacity: up to 20 lbs (9.1 kg).
Be the first to review this product
Product ID: 16633
Recommended Accessories
Our Price: $4,938.36
Shipping: $140.95 *
Usually ships in 2 to 3 business days
* applies to Contiguous United States



Accessories for Ergotron SV42-42303 SV EMR Laptop Cart, LiFe Powered



Ergotron 97-466-214 Four-Outlet Power Strip with Medical-Grade Plug, receptacles
Ergotron 97-466-214 Medical Grade Power Strip
Ergotron 60-575-003 T-Slot Bracket 60575003
Ergotron 60-575-003 T Slot Bracket
Ergotron 97-512-009 StyleView Rear VESA Mount Black
Ergotron 97-512-009 StyleView Rear VESA Mount
Ergotron 97-507-216 Utility Shelf for Carts White
Ergotron 97-507-216 Utility Shelf for Carts



General Information



Image of Warranty and Returns

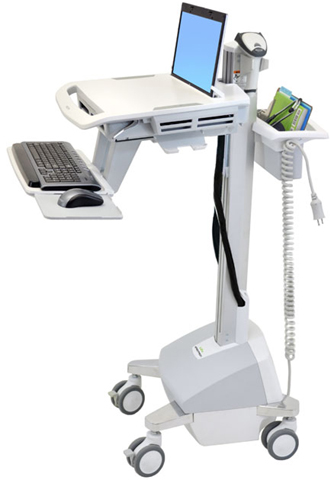

Ergotron SV42-42303 StyleView EMR Notebook Cart, LiFe Powered



Ergotron SV42-42303 StyleView EMR Notebook Cart, LiFe Powered









Description of Ergotron SV42-42303:



Ergotron is increasing customer choice with the addition of Lithium Iron (LiFe) battery technology to our point-of-care electronic medical records portfolio.

Stay productive and on the go with our LiFe power system. This innovative, truly ergonomic and easy-to-maneuver healthcare cart features sit-to-stand height adjustment and an adjustable back-tilt keyboard tray.









Technical Drawing of Ergotron SV42-42303 StyleView EMR Laptop Cart, LiFe Powered



Technical Drawing of Ergotron SV42-42303 StyleView EMR Laptop Cart, LiFe Powered









Technical Specifications:



LCD size

Capacity

Lift

Tilt

Pan

Rotation

VESA

LCD Size

Capacity

Lift

Tilt

Pan

Rotation

VESA

Up to 17"

Up to 20 lbs

9.1 kg

20"

51 cm











Product Information:



Part Number:

SV42-42303

Description:

StyleView EMR Laptop Cart, LiFe Powered (white, grey and polished aluminum)

Includes:

  • Worksurface

  • Secure laptop compartment

  • Ethernet ready-on function and four-port USB hub

  • Scanner holder bracket

  • Mouse holder

  • Wrist rest

  • Back-tilt keyboard tray

  • Left/right mouse tray

  • Rear handle

  • Storage basket

  • Cable storage

  • Four casters (two locking)

  • Single-battery 40 Ah LiFe power system

  • 10-foot (3 m) coiled cord

  • Two hospital-grade AC outlets

  • Power system user interface

  • StyleLink software

Maximum Laptop Size:

15.5"W x 14.75"D x 2"H (393 x 375 x 51 mm)

Weight Capacity:

Total maximum load on height-adjustment assembly = 20 lbs (9.1 kg). This is the sum of the following components: worksurface ≤ 5 lbs (2.3 kg); keyboard tray ≤ 3 lbs (1.4 kg); and laptop compartment ≤ 10 lbs (4.5 kg)

Laptop and Worksurface:

Adjust 20" (51 cm) in tandem.

True Ergonomics:

  • Ergonomic back-tilt keyboard tray with left or right mouse tray ensures wrists remain in a neutral position during data entry - avoid repetitive-stress injuries while increasing comfort and productivity

  • Designed for users 5'0" to 6'1" (152 to 185 cm) tall and for prolonged sitting or standing applications. Unlike competitive offerings, shorter users can work comfortably and productively in a seated positon

  • Patented CF lift-and-pivot motion technology minimizes forces required to adjust cart position: Casters and height adjustment require just a touch

  • Actual cart weight is 93 lbs (42.3 kg), making system relocation easy

Safe:

  • Power System User Interface integrated conveniently on the worksurface (includes visual and audible battery status indicator)

  • For patient and caregiver safety the LiFe power module is fully certified to UL 60601-1; FULL power system and cart-level certification is in progress. Complies with EMI limits of FCC Part 15 Class A

  • Surfaces are treated with Agion Antimicrobial for product protection; handles are smooth and continuous for improved clean ability

  • Environmentally clean: RoHS, REACH, WEEE and EU (94/62/EC) packaging compliant

  • Durable, easy-to-clean exterior composed of aluminum, high-grade plastic and zinc-plated steel promotes infection control

  • One-piece worksurface with no seams; easy-to-clean design promotes infection control

  • Lockable, ventilated enclosed storage for closed notebook, thin client or CPU. Keys and locks are heavy-duty

  • Front-locking casters

  • Designed to meet guidelines established by the American National Standards Institute for computer use

Service:

  • Includes FREE StyleLink with enterprise capabilities: Install, access and manage your StyleView power systems from a remote location across WAN, LAN, or VPN

  • Covered by Global Service Program - 24/7 coverage

All the Details Covered:

  • Four amber LEDs provide light over keyboard tray; includes 15-minute auto shut-off

  • Button for LED lights and Ethernet ready-on is located conveniently on worksurface

  • Easy access to components for field replacement and serviceability: keyboard LEDs, PC boards (including the user interface). Easier, faster upkeep and service means less down time

  • Notebook screen holders: Prevents the notebook screen from vibration for less damage to hinges over time

  • Pre-routed cables provide quicker integration with equipment

  • TAA (Trade Agreements Act) compliant

  • Universal mounting slot for accessories and equipment

  • A unique cable management system conceals and organizes cords, making cleaning easy

  • Ships fully assembled and is easily accessible from container

  • Four (4) ultra-smooth gliding casters for extremely easy push/pull mobility; two locking casters ensure lock-in-place stability

Compatibility and Dimensions:

  • Open-architecture design accommodates most laptops - even widescreen - and allows for future hardware upgrades

  • Laptop Holder Internal Dimensions: 16"W x 14.9"D x 2.5"H (406 x 378 x 64 mm)

  • Compact Wheel-to-Wheel Base Dimensions: 15.5" x 17" (394 x 432 mm)

  • Worksurface Dimensions: 19.75"W x 19.6"D (502 x 498 mm)

  • VAC = 120V/60Hz

  • Grounded Plug & Outlet = NEMA 5-15P Hospital Grade

  • 40 Ah Power System with one (1) 40 Ah, 12 V DC, Lithium Iron Phosphate (LiFe) battery

Shipping Dimensions:

24"W x 32"D x 56"H (61 x 81 x 142 cm)

Shipping Weight:

127 lbs (57.7 kg); actual cart weight = 93 lbs (42.3 kg)

Warranty:

Five (5) years for cart, two (2) years on all power supply components and battery









Benefits of Ergotron SV42-42303:



  • LiFe makes the cart extremely lightweight and easy to move.

  • Ultra fast recharge ensures caregiver and cart uptime: A full recharge from full discharge can be completed in about two hours.

  • Long battery ‘LiFe’ minimizes time and cost for maintenance and replacement.

  • For patient and caregiver safety the LiFe power module is fully certified to UL 60601-1; FULL power system and cart-level certification is in progress. Complies with EMI limits of FCC Part 15 Class A.

  • Truly ergonomic design accommodates the largest range of nurses and other caregivers; designed for sitting or standing with single-motion fluid adjustment - helps promote caregiver wellness and productivity.

  • Surfaces are treated with Agion Antimicrobial for product protection.

  • Open-architecture design accommodates most laptops - even widescreen - easing future hardware deployments and upgrades.

  • Push-button Ethernet ready-on function embedded in worksurface: Awaken enclosed computer from energy-saving hibernation mode with the touch of an external button - facilitates easy compliance with EnergyStar 4.0 guidelines.

  • Passes Ergotron’s 10,000-cycle motion test, which ensures a minimum of five years trouble-free sit-to-stand height adjustment.







Literature (Please open the following documents for more technical information)




Ergotron SV42-42303 StyleView EMR Laptop Cart, LiFe Powered - Product Sheet

- pdf

Ergotron SV42-42303 StyleView EMR Notebook Cart, LiFe Powered - Dimensional Illustrations

- pdf

Ergotron SV42-42303 StyleView EMR Laptop Cart, LiFe Powered - Cleaning Instructions

- pdf
