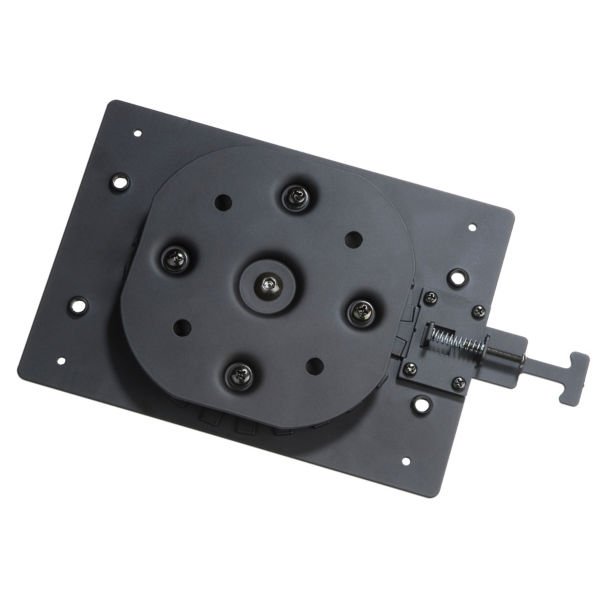

Peerless RMI1 Rotational Mount Interface for Landscape to Portrait Adjustment up to 71" Screens

Allows screen to be rolled from landscape to portrait without disengaging the screen from the mount One PLP adapter plate and a mount (sold separately) is required to complete the installation. For PLP adapter plate, please contact to customerservice@ergodirect.com or 1-888-456-ERGO (3746).
Be the first to review this product
Product ID: 16650
Recommended Accessories
List Price: $149.00
Our Price: $118.93
You Save: $30.07
Shipping: $12.95 *
Usually ships in 1 to 2 business days
* applies to Contiguous United States
Add to Cart

Animation of Peerless RMI1 Rotational Mount Interface for Landscape to Portrait Adjustment up to 71" Screens

Peerless RMI1 Rotational Mount Interface for Landscape to Portrait Adjustment up to 71" Screens



General Information



Image of Warranty and Returns









Peerless RMI1 Rotational Mount Interface for Landscape to Portrait Adjustment up to 71" Screens



Peerless RMI1 Rotational Mount Interface for Landscape to Portrait Adjustment up to 71" Screens









Features of Peerless RMI1:



  • Additional dedicated PLP adapter required.

  • Allows screen to be rolled from landscape to portrait without disengaging the screen from the mount.

  • Screen can be rolled 360 degree without impediment, no tools required.

  • Screen roll angle can be locked in 15 degree increments.

  • Spring loaded handle makes adjusting the screen position simple.

  • Tamper resistant feature allows for screen roll angle to be locked into place.

  • Low profile design adds less than 1" to any application.

  • For use with wall and ceiling mounts, carts and stands.









Peerless RMI1 Rotational Mount Interface for Landscape to Portrait Adjustment up to 71" Screens



Peerless RMI1 Rotational Mount Interface for Landscape to Portrait Adjustment up to 71" Screens









Description of Peerless RMI1:



Go from landscape to portrait with a simple pull of the spring-loaded lever, eliminating the need to remove the screen from the mount whenever the content orientation changes. In addition, the new RMI1 enables a mounted screen to be easily rotated and set at 15-degree increments within 360 degrees. Ideal for standard or creative digital signage displays - landscape, portrait, waves, zigzag and 45-degree angle patterns - the possibilities are endless. The RMI1 is compatible with Peerless’ selection of wall mounts, ceiling mounts, carts and stands.









Specifications of Peerless RMI1:



Distance from Wall:

0.94" (24 mm)

Roll:

360 degree

Product Dimensions (W x H x D):

12.94" x 7.38" x .94" (329 x 187 x 24 mm)

Load Capacity:

Up to 175 lbs (79 kg) (depending on application)

Product Weight:

5.1 lb (2.3 kg)

Finish:

Scratch resistant fused epoxy

Available Color:

Black

Mounting Surfaces:

To be used with Peerless wall mounts, ceiling mounts, carts and stands (sold separately)

Package Contents:

  • Rotational mount interface
  • Mounting hardware

Package Size (W x H x D):

10" x 20" x 1.75" (25.4 x 50.8 x 4.45 cm)

Package Ship Weight:

5.5 lb (2.49 kg)

Package UPC Code:

735029259299

Warranty:

Limited 5 year





Literature (Please open the following documents for more technical information)




Peerless RMI1 Rotational Mount Interface for Landscape to Portrait Adjustment - Product Profile

- pdf

Peerless RMI1 Rotational Mount Interface for Landscape to Portrait Adjustment - Catalog Page

- pdf

Peerless RMI1 Rotational Mount  interface up to 71" Flat Panel Screens - Technical Data Sheet

- pdf

Peerless RMI1 Rotational Mount Interface up to 71" Flat Panel Screens - Installation Sheet

- pdf
