We are sorry but item below has been discontinued. Above are some similar products we can offer instead.

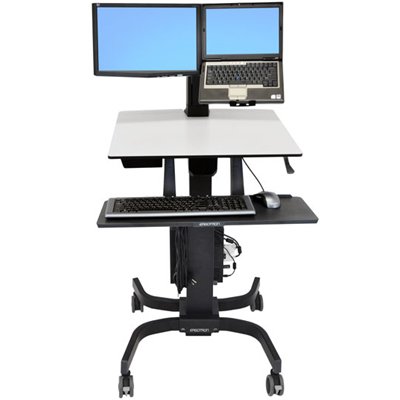

Ergotron 24-213-085 WorkFit-C LCD & Laptop Sit-Stand Workstation

LCD Size up to 20". Weight Capacity 12 - 26 lbs (5.4 - 11.8 kg).
Be the first to review this product
Product ID: 16678
Recommended Accessories
Our Price: $849.00
Shipping: $120.00 * Oversized box 91 pounds. Shipping cost subject to change based on destination
Usually ships in 2 to 3 business days
* applies to Contiguous United States

Description

Ergotron 24-213-085 stays energized and productive while you compute - move from a sitting to a standing position whenever you want. This workstation’s large worksurface and height-adjustable keyboard tray and display make computing comfortable for prolonged periods.

Counterbalanced adjustment points allow instantaneous, tool-free re-positioning while you work! Additional features include 25" (63 cm) total height adjustment, a small footprint and advanced cable management. An integrated brake secures table in place and with just a touch and releases for height adjustment.



Technical Drawing

Technical drawing for Ergotron WorkFit-C LCD & Laptop Sit Stand Workstation



Technical Specifications

LCD size

Capacity

Lift

Tilt

Pan

Rotation

VESA

LCD Size

Capacity

Lift

Tilt

Pan

Rotation

VESA

Up to 20" 12-26 lbs

5.5-11.8 kg

25"

63 cm

30° - 360° P/L MIS-D



Product Information

Part Number:

24-213-085

Description:

WorkFit-C Sit-Stand Workstation for LCD Monitor & Laptop with Mobile Cart Base (black/grey)

Includes:

  • Cart
  • LCD pivot
  • Laptop tray
  • Crossbar
  • Integrated worksurface
  • Large stowable keyboard tray
  • Cable storage box
  • Four dual casters (two locking)
  • Hand-brake system

Weight Capacity:

Maximum load on height-adjustment assembly = 32.5 lbs (14.7 kg). Includes weight of display, laptop and keyboard in addition to contents on Worksurface and in Cable Storage Box. LCD mount capacity = 6-16 lbs (2.7-7.3 kg), laptop tray ≤ 10 lbs (2.7–4.5 kg), 12–26 lbs (5.5-11.8 kg) total.

Lift Range:

LCD/laptop/keyboard/worksurface adjust 20" (51 cm) in tandem; LCD/laptop adjust 5" (13 cm) independently; maximum LCD/laptop height adjustment = 25" (63 cm).

Mounting Standards:

VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm); laptop tray can be used with or without a docking station.

Keyboard Tray:

26.3" x 9.4" (67 x 24 cm). Stowable under worksurface. Includes 5° back-tilt to ensure wrists remain in a neutral position during data entry.

Large Worksurface:

24"W x 23"D (61 x 58 cm)

Cable Management Box:

Interior dimensions = 13.4"W x 5.1"D x 3.4"H (34.1 x 12.8 x 8.6 cm)

Wheel to Wheel Base Dimensions:

25"W x 22"D (63.5 x 56 cm)

Note:

A Washington State analysis of case studies related to office ergonomics showed a median productivity increase of 12% following an ergonomic intervention. New studies from the Office Ergonomics Research Committee (OERC) suggest that employees who are provided with well-designed ergonomic furniture and are trained to use it see an average productivity increase of 18%.

Shipping Dimensions:

36.5" x 32.25" x 28.25" (93 x 82 x 72 cm)

Shipping Weight:

91 lbs (41.3 kg)

Warranty:

Five (5) years



Benefits

For Computer Users

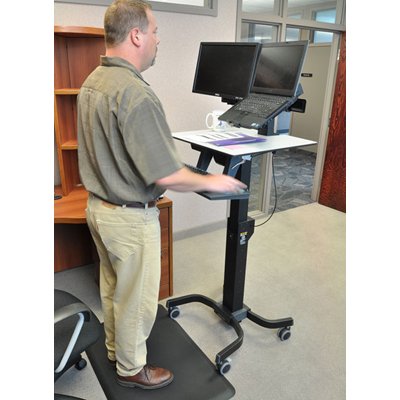

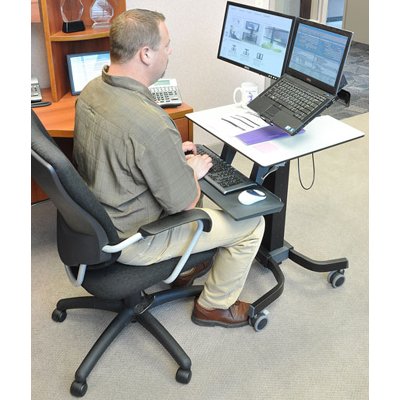

  • On-demand sit-stand workstation - improve your energy and productivity by standing or sitting as you work, and then switch positions whenever you choose. This work style encourages healthy movement throughout the day.
  • Promote fitness and comfort as you compute, reducing potential back and neck pain by adding movement into your work routine in a truly ergonomic workstation.
  • Easily and simultaneously lift keyboard and LCD screen to proper height for unsurpassed ergonomic comfort.
  • Patented Constant Force lift technology provides fluid, one-touch adjustments of the keyboard and monitor positions for personalized computing.
  • Mobile configuration brings flexibility into the workspace. Easily moves through small doorways and over thresholds for collaborative meetings.
  • Burn more calories by choosing to stand for periods of your work-day; periodic standing also promotes greater bone density and better sleep at night.
  • Telescoping lift engine provides height adjustability without blocking the line of sight.

For IT and Facilities Staff

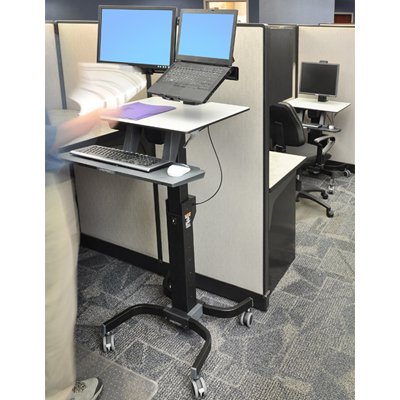

  • IT deployment friendly - set aside several fully equipped WorkFit-Cs for temporary workers, unassigned workstations (aka hoteling or hot desking) or telecommuter work pods; roll to the place of need (easily stored and ready to roll).
  • Modify existing office spaces or cubes by simply removing a section of worksurface and rolling in the sit-to-stand WorkFit, without the cost of expensive professional installers.

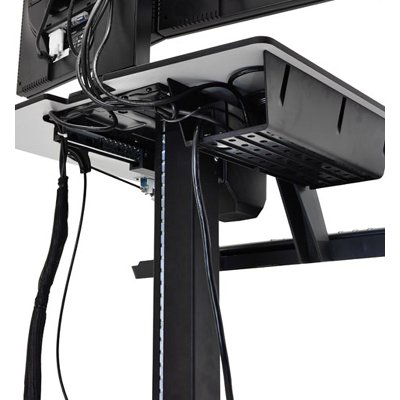

  • Safe and neat routing of cables through the expansive cable management storage area.
  • Flexible, open-architecture design is scalable for future computer equipment.
  • Takes less time to retrofit existing stations or repurpose for changing workforce, reduces facility spend.
  • Quick and easy assembly.
  • Durable, easy-to-clean exterior composed of phenolic, high-grade plastic and powder coated painted steel.
  • Cable Management Box provides storage area for one standard six-outlet power strip, two power bricks, and the associated cables.

For HR/Risk Management and Company Cost Savings

  • Manage the cost of healthcare premiums by promoting wellness in the daily work routine.
  • Provide standing work platforms for employees without having to buy expensive height-adjustable chairs.
  • Comfortable computing offers provable ROI on investment - healthcare costs associated with unhealthy computing and missed time are reduced while productivity increases.
  • WorkFit supports healthy neck and back conditions. According to the 2007 OE Medicine Journal, back and neck pain are cited as the most costly conditions affecting employees.
  • Studies in office ergonomics show productivity increases 12%–18% following an ergonomic intervention where employees are provided with well-designed ergonomic furniture.



Literature (Please open the following documents for more technical information)

Product Sheet - Ergotron 24-213-085 WorkFit-C LCD & Laptop Sit-Stand Workstation

 - pdf

Installation Manual - Ergotron 24213085 LED and Notebook Sit-Stand Cart

 - pdf

Dimensional Illustrations - Ergotron 24-213-085 WorkFit-C LCD & Laptop Workstation

 - pdf

Tips and Tricks - Ergotron WorkFit-C Sit-Stand Workstation

 - pdf

WorkFit Flyer - Ergotron WorkFit-C Sit-Stand Cart for LED Monitor & Notebook

 - pdf





Ergotron Logo

Hyperlink of all Ergotron products

Model 24-213-085
Manufacturer Ergotron
Part Number 24-213-085
Weight Capacity Maxi load on height-adjustment assembly=32.5 lb. Includes wt of display, laptop and keyboard in addition to contents on Worksurface and in Cable Storage Box. LCD mount capacity=6–16 lb, laptop tray ≤10 lb (2.7–4.5 kg), 12–26 lb (5.5-11.8 kg) total
Monitor Size Up to 20"
Lift (63 cm) 25 in
Mounting Pattern VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm); laptop tray can be used with or without a docking station
Shipping Weight 91 lbs (41.3 kg)
Shipping Dimensions 36.5" x 32.25" x 28.25" (93 x 82 x 72 cm)
Warranty Five (5) years
Rotation (P/L) 360 degree
Keyboard Tray Dimensions 26.3" x 9.4" (67 x 24 cm)
Worksurface Dimensions 24"W x 23"D (61 x 58 cm)
Cable Management Box Interior dimensions = 13.4"W x 5.1"D x 3.4"H (34.1 x 12.8 x 8.6 cm)
Compact Wheel to Wheel Base Dimensions 25"W x 22"D (63.5 x 56 cm)
Color Black/grey
Tilt 30 degree
Desk Type Carts
Mounting Options Carts
