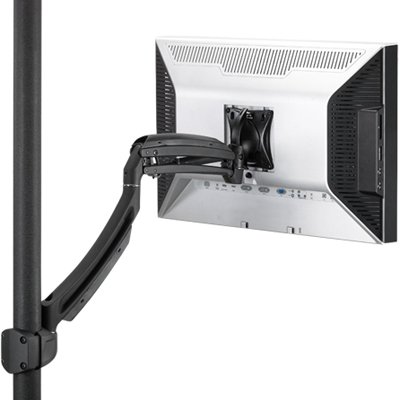

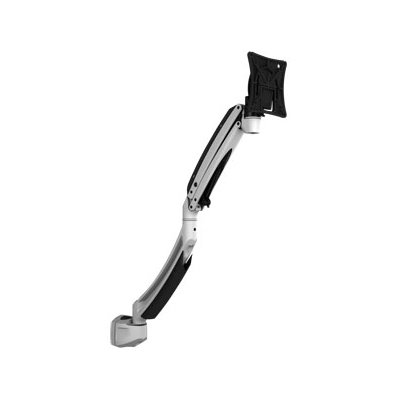

Chief K1P100B or K1P100S KONTOUR Dynamic Height Adjustable Pole Mount for 10"-30" Single Monitor

Chief K1P100B or K1P100S KONTOUR Dynamic Height Adjustable Pole Mount for 10"-30" Single Monitor
click image to enlarge
This product has the following options available:
List Price: $454.00
Our Price: $181.60
You Save: $272.40
Shipping: $0.00 *  - Free Ground Shipping
* applies to Contiguous United States



Related Products:



Part Number

Description

K1P100B

Black KONTOUR Dynamic Height Adjustable Pole Mount for 10"-30" Single Monitor

K1P100S

Silver KONTOUR Dynamic Height Adjustable Pole Mount for 10"-30" Single Monitor





General Information



Image of Warranty and Returns








Chief K1P 100B or K1P 100S KONTOUR Dynamic Height Adjustable Single Monitor Arm Pole Mount



Chief K1P 100B or K1P 100S KONTOUR Dynamic Height Adjustable Single Monitor Arm Pole Mount









Features of Chief K1P-100B or K1P-100S:



  • Easy installation on pre-existing poles with 1.5 - 1.9" (38 - 48 mm) outer diameters.

  • Sleek, solidly-constructed forged aluminum arms.

  • Dynamic height adjustment using gas-spring technology.

  • Simple 3-step installation and integrated quick-connect interface for easy mounting and maintenance.

  • Tool-free cable management covers for a clean, professional look.

  • Patented Centris Extreme Tilt. Tilts -75/+10 for an ultimate ergonomic solution.

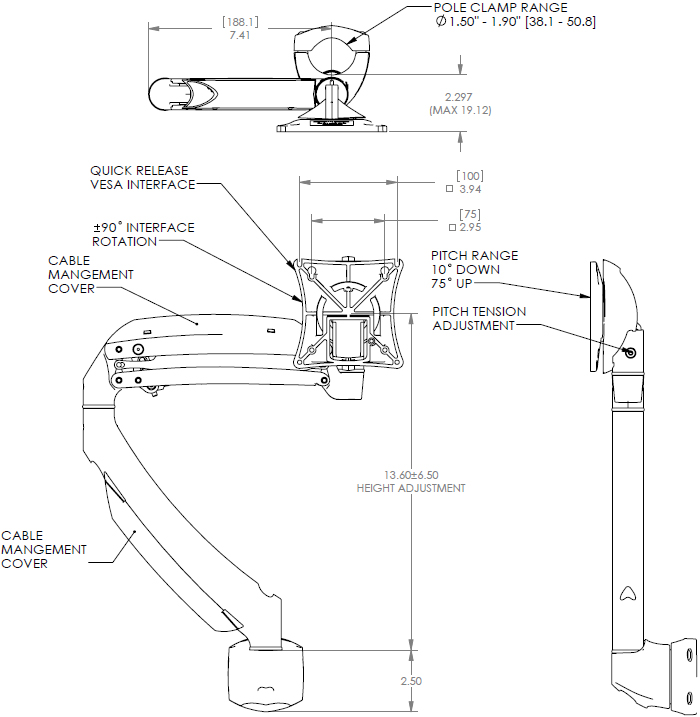

Technical Drawing of Chief K1P100 Series KONTOUR Dynamic Height Adjustable Pole Mount



Technical Drawing of Chief K1P100 KONTOUR Dynamic Height Adjustable Pole Mount









Description of Chief K1P-100 Series:



Whether in the office, in healthcare facilities or at home, Kontour monitor arms create a more productive and comfortable workspace. Elegantly designed with a forged aluminum body, Kontour mounts will stand the test of time both functionally and aesthetically.









Specifications of Chief K1P 100 Series:



Color:

Black, Silver

Dynamic Height Adjustment:

13"

Maximum Extension:

19.12" (485.6 mm)

Minimum Depth:

2.3" (58.4 mm)
Mounting Pattern Compatibility (Universal Versions): 75 x 75 mm ,100 x 100 mm

Orientation:

Landscape, Portrait

Pole Diameter Range:

1.5 - 1.9" (38 - 48mm)

Post-Installation Leveling (Roll):

Yes

Solution Type:

Universal

Tilt:

+ 75° , - 10°

Typical Screen Sizes:

10" - 30"

Weight Capacity:

5 - 25 lbs (2.3 - 11.3kg) per monitor





Literature (Please open the following documents for more technical information)




Chief K1P-100B or K1P-100S KONTOUR Dynamic Height Adjustable Pole Mount - Installation Assembly

- pdf
Chief K1P 100S or K1P 100B KONTOUR Dynamic Height Adjustable Pole Mount - Technical Drawing

- pdf





Chief Logo

Hyperlink of all Chief products



Model K1P100
Manufacturer Chief Mounts
Part Number K1P100
Color Black, Silver
Dynamic Height Adjustment 13"
Maximum Extension 19.12" (485.6mm)
Minimum Depth 2.3" (58.4mm)
Mounting Pattern 75 x 75mm, 100 x 100mm
Pole Diameter 1.5 - 1.9" (38 - 48mm)
Tilt +75, - 10 degree
Screen Size 10 - 30 in
Weight Capacity 5 - 25 lbs (2.3 - 11.3kg)
