We are sorry but item below has been discontinued. Above are some similar products we can offer instead.

Chief K1P200 KONTOUR Dynamic Pole Mount, Dual Monitor

Be the first to review this product
Product ID: 16692
Recommended Accessories
List Price: $786.00
Our Price: $314.40
You Save: $471.60
Shipping: $0.00 *  - Free Ground Shipping
Usually ships in 1 to 2 business days
* applies to Contiguous United States





Related Products:



Part Number

Description

K1P200B

Black KONTOUR Dynamic Height Adjustable Pole Mount Arm for 10"-30" Dual Monitors

K1P200S

Silver KONTOUR Dynamic Height Adjustable Pole Mount Arm for 10"-30" Dual Monitors

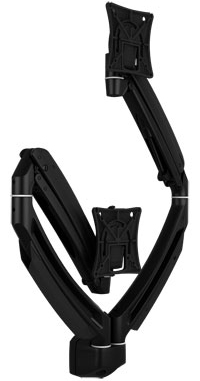

Chief K1P 200B or K1P 200S KONTOUR Dynamic Height Adjustable Dual Monitor Arm Pole Mount



Chief K1P 200B or K1P 200S KONTOUR Dynamic Height Adjustable Dual Monitor Arm Pole Mount







Features of Chief K1P-200B or K1P-200S:



  • Easy installation on pre-existing poles with 1.5 - 1.9" (38 - 48 mm) outer diameters.

  • Allows independent movement and height adjustment of each monitor for maximum ergonomic flexibility.

  • Sleek, solidly-constructed forged aluminum arms.

  • Dynamic height adjustment using gas-spring technology.

  • Simple 3-step installation and integrated quick-connect interface for easy mounting and maintenance.

  • Tool-free cable management covers for a clean, professional look.

  • Patented Centris Extreme Tilt. Tilts -75/+10 for an ultimate ergonomic solution .

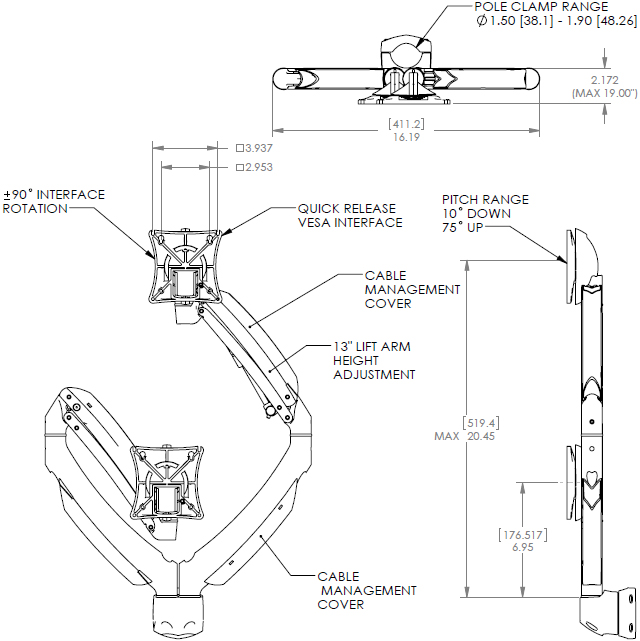

Technical Drawing of Chief K1P200 Series KONTOUR Dynamic Dual Monitor Arm Pole Mount



Technical Drawing of Chief K1P200 Series KONTOUR Dynamic Dual Monitor Arm Pole Mount







Description of Chief K1P-200 Series:



Whether in the office, in healthcare facilities or at home, Kontour monitor arms create a more productive and comfortable workspace. Elegantly designed with a forged aluminum body, Kontour mounts will stand the test of time both functionally and aesthetically.







Specifications of Chief K1P 200 Series:



Color:

Black, Silver

Dynamic Height Adjustment:

13"

Maximum Extension:

19" (482.6 mm)

Minimum Depth:

2.2" (55.9 mm)

Mounting Pattern Compatibility (Universal Versions):

75 x 75 mm, 100 x 100 mm

Notes:

Weight capacity is per monitor

Number of Monitors:

2

Orientation:

Landscape, Portrait

Overall Dimensions (H x W x D):

14.0" x 17.0" x 4.5" (356 x 432 x 114 mm)

Pole Diameter Range:

1.5 - 1.9" (38 - 48 mm)

Post-Installation Leveling (Roll):

Yes

Solution Type:

Universal

Tilt:

+ 75° , - 10°

TV Width Range:

10 - 34" (254 - 864mm)

Typical Screen Sizes:

10" - 30"

Weight Capacity:

5 - 25 lbs (2.3 - 11.3kg) per monitor

Model K1P200B, K1P200S
Manufacturer Chief Mounts
Part Number K1P200B, K1P200S
Color Black, Silver
Dynamic Height Adjustment 13"
Maximum Extension 19" (482.6mm)
Minimum Depth 2.2" (55.9mm)
Mounting Pattern 75 x 75mm, 100 x 100mm
Overall Dimensions (H x W x D) 14.0" x 17.0" x 4.5" (356 x 432 x 114mm)
Pole Diameter 1.5 - 1.9" (38 - 48mm)
Tilt + 75, - 10 degree
TV Width Range 10 - 34" (254 - 864mm)
Screen Size 10 - 30 in
Weight Capacity 5 - 25 lbs (2.3 - 11.3kg)
Shipping Weight 12.92 lbs
Mounting Options Pole
