AFC CM-Z Ceiling Mount LCD Monitor Extension Arm of 17" and up to 25 lbs Capacity

General Information



Image of Warranty and Returns

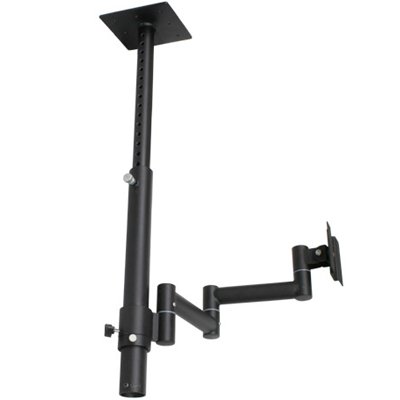

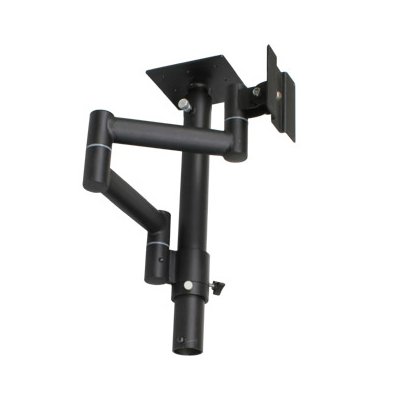

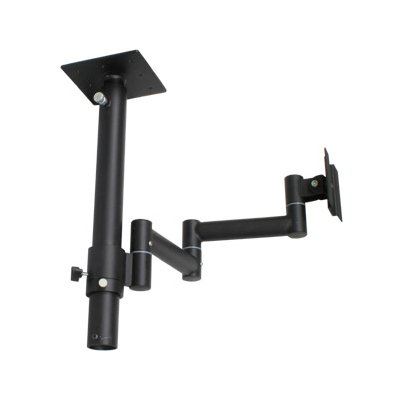

AFC CM-Z LCD Monitor Ceiling Mount Extension Arm of 17"



AFC CM-Z LCD Monitor Ceiling Mount Extension Arm of 17"









Description of AFC CM-Z LCD Ceiling Mount:



The CM-Z is a simple but sturdy ceiling mounted LCD monitor arm that allows the user to adjust the monitor at their required height and viewing angle. CM-Z has a stroke of 15" and can be locked into position with the spring-loaded knobs at 1" increments. It also allows rotation and tilt positioning of the monitor.

CM-Z can be mounted on to the ceiling and the cables can be wired through the tubing to be connected with the monitor. CM-Z comes with a standard VESA 75/100 plate with a full extension arm of 17". It is recommended for LCD weighing 25lbs or less.









Technical Drawing for AFC CM-Z LCD Ceiling Mount Monitor Arm



Technical Drawing for AFC CM-Z LCD Ceiling Mount Monitor Arm









Technical Specifications of AFC CM-Z:



Mounting Pattern:

VESA mounting (75x75mm & 100x100mm )

Extension:

17"

Stroke:

15"

Weight Capacity:

Up to 25 lbs LCD Monitor







Literature (Please open the following documents for more technical information)




AFC CM-Z LCD Monitor Ceiling Mount Arm - Specification Sheet

- pdf



AFC Industries Logo

Hyperlink of all AFC Industries Products

Model CM-Z
Manufacturer AFC Industries
Part Number CM-Z
