We are sorry but item below has been discontinued. Above are some similar products we can offer instead.

Ergotron SV41-41004 StyleView EMR Laptop Cart non-powered (white, grey and polished aluminum)

LCD Size: up to 17.3". Weight Capacity: up to 18 lbs (8 kg). Previously sold as SV41-41001.
Be the first to review this product
Product ID: 16740
Recommended Accessories
Our Price: $1,448.80
Shipping: $88.95 *
Usually ships in 2 to 3 business days
* applies to Contiguous United States









General Information



Image of Warranty and Returns









Ergotron SV41-41004 StyleView EMR Notebook Laptop Cart, non-powered (white, grey and polished aluminum)



Ergotron SV41-41004 StyleView EMR Notebook Laptop Cart, non-powered (white, grey and polished aluminum)









Description of Ergotron SV41-41004:



This innovative, truly ergonomic and easy-to-maneuver healthcare cart features sit-to-stand height adjustment and an adjustable back-tilt keyboard tray.

Our years of experience and collaboration in point-of-care computing have enabled us to design a cart that nurses, IT, infection control and procurement will all love.

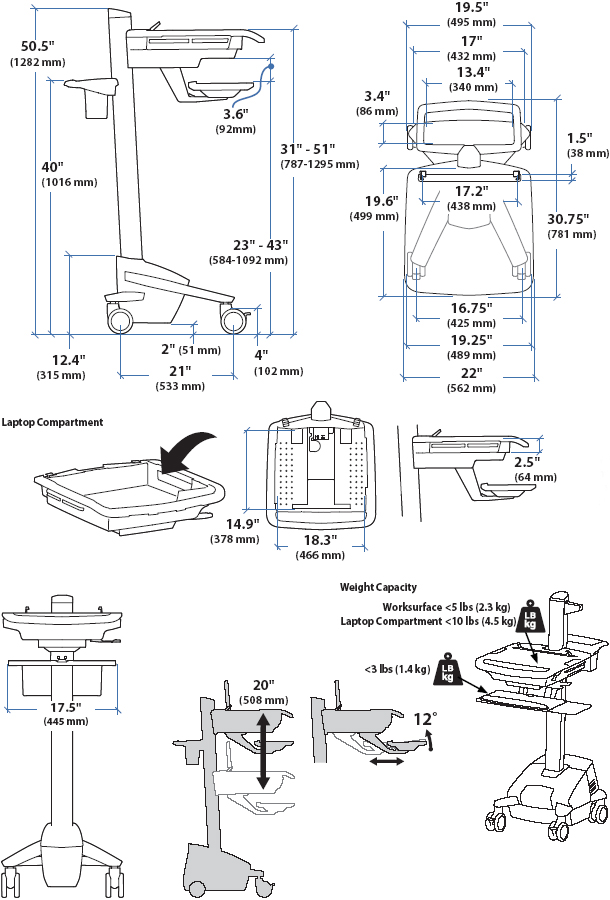

Technical Drawing of Ergotron SV41-41004 StyleView EMR Laptop Cart, non-powered



Technical Drawing of Ergotron SV41-41004 StyleView EMR Laptop Cart, non-powered









Technical Specifications:



LCD size

Capacity

Lift

Tilt

Pan

Rotation

VESA

LCD Size

Capacity

Lift

Tilt

Pan

Rotation

VESA

Up to 17.3"

Up to 18 lbs

8 kg

20"

51 cm

- - - -









Product Information:



Part Number:

SV41-41004

Description:

StyleView EMR Laptop Cart, non-powered (white, grey and polished aluminum)

Includes:

  • Worksurface

  • Secure laptop compartment

  • Ethernet ready-on function and four-port USB hub

  • Scanner holder bracket

  • Mouse holder

  • Wrist rest

  • Back-tilt keyboard tray

  • Left/right mouse tray

  • Rear handle

  • Storage basket

  • Cable storage

  • Four casters (two locking)

Maximum Laptop Size:

17"W x 14.75"D x 2"H (432 x 375 x 51 mm)

Weight Capacity:

Total maximum load on height-adjustment assembly = 18 lbs (8 kg). This is the sum of the following components: worksurface ≤ 5 lbs (2.3 kg); keyboard tray ≤ 3 lbs (1.4 kg); and laptop compartment ≤ 10 lbs (4.5 kg).

Laptop and Worksurface:

Adjust 20" (51 cm) in tandem.

True Ergonomics:

  • Ergonomic back-tilt keyboard tray with left or right mouse tray ensures wrists remain in a neutral position during data entry—avoid repetitive-stress injuries while increasing comfort and productivity.

  • Designed for users 5'0" to 6'1" (152 to 185 cm) tall and for prolonged sitting or standing applications. Unlike competitive offerings, shorter users can work comfortably and productively in a seated position.

  • Patented CF lift-and-pivot motion technology minimizes forces required to adjust cart position: Casters and height adjustment require just a touch.

  • Actual cart weight is just 55 lbs (25 kg), making system relocation easy.

Safe:

  • Surfaces are treated with Agion Antimicrobial for product protection; handles are smooth and continuous for improved clean ability.

  • Environmentally clean: RoHS, REACH, WEEE and EU (94/62/EC) packaging compliant.

  • Tested to UL/EN/IEC and FCC Part 15 Class A specifications for enhanced patient safety.

  • Durable, easy-to-clean exterior composed of aluminum, high-grade plastic and zinc-plated steel promotes infection control.

  • One-piece worksurface with no seams; easy-to-clean design promotes infection control.

  • Lockable, ventilated enclosed storage for open laptop. Keys and locks are heavy-duty.

  • Front-locking casters.

  • Designed to meet guidelines established by the American National Standards Institute for computer use.

Service:

  • Covered by Global Service Program - 24/7 coverage.

All the Details Covered:

  • Four amber LEDs provide light over keyboard tray; includes 15-minute auto shut-off.

  • Button for LED lights is located conveniently on worksurface.

  • Notebook screen holders: Prevents the notebook screen from vibration for less damage to hinges over time.

  • Universal mounting slot for accessories and equipment.

  • A unique cable management system conceals and organizes cords, making cleaning easy.

  • Ships fully assembled and is easily accessible from container.

  • Four (4) ultra-smooth gliding casters for extremely easy push/pull mobility; two locking casters ensure lock-in-place stability.

Compatibility and Dimensions:

  • Open-architecture design accommodates most laptops - even widescreen with up to 17.3" diagonal size - easing future hardware deployments and upgrades.

  • Compact Wheel-to-Wheel Base Dimensions: 17" x 21" (430 x 533 mm)

  • Worksurface Dimensions: 22" W x 19.6" D (562 x 498 mm).

Shipping Dimensions:

30.9" H x 21.3" W x 52.2" D (79 x 54 x 133 cm)

Shipping Weight:

82 lbs (37 kg); actual cart weight = 56 lbs (25.2 kg)

Warranty:

Five (5) years









Benefits of Ergotron SV41-41004:



  • Effortlessly maneuver the cart to the point of need - StyleView quickly responds to caregivers’ touch and enables nurses to focus on their patients.

  • Truly ergonomic design accommodates the largest range of nurses and other caregivers; designed for sitting or standing with single-motion fluid adjustment - helps promote caregiver wellness and productivity.

  • StyleView’s small footprint, with ultra-smooth gliding casters, travels easily across crowded carpet or hard surface floors and is perfect for space constrained areas.

  • Surfaces are treated with Agion Antimicrobial for product protection.

  • Open-architecture design accommodates most laptops - even widescreen with up to 17.3" diagonal size - easing future hardware deployments and upgrades.

  • Passes Ergotron’s 10,000-cycle motion test, which ensures a minimum of five years trouble-free sit-to-stand height adjustment.







Literature (Please open the following documents for more technical information)




Ergotron SV41-41004 StyleView EMR Laptop Cart, Non-Powered - Product Sheet

- pdf

Ergotron SV41-41004 StyleView EMR Notebook Cart, non-powered - Dimensional Illustrations

- pdf

Ergotron SV41-41004 StyleView EMR Laptop Cart, Non-Powered - Cleaning Instructions

- pdf

Ergotron SV41-41004 StyleView EMR Notebook Cart, non-powered - StyleView Accessories

- pdf
