Ergotron SV42-42402 StyleView EMR Laptop Cart Powered (white, grey and polished aluminum)

LCD Size: up to 17.3". Weight Capacity: up to 18 lbs (8 kg). Previously sold as SV42-42102.
Be the first to review this product
Product ID: 16743
Recommended Accessories
Our Price: $3,168.51
Shipping: $165.95 *
Usually ships in 2 to 3 business days
* applies to Contiguous United States









General Information



Image of Warranty and Returns

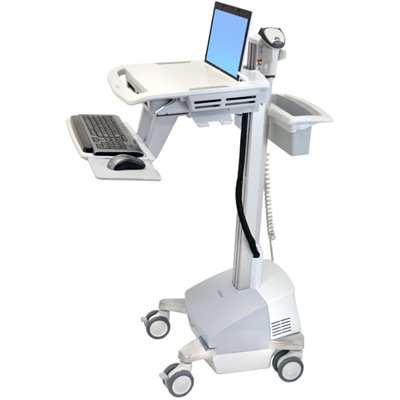

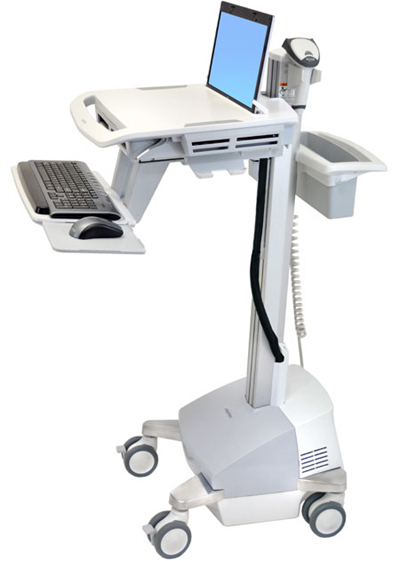

Ergotron SV42-42402 StyleView EMR Notebook Laptop Cart, Powered (white, grey and polished aluminum)



Ergotron SV42-42402 StyleView EMR Notebook Laptop Cart, Powered (white, grey and polished aluminum)









Description of Ergotron SV42-42402:



Order part number that coincides with regional power system requirements: North America = SV42-42402; Europe = SV42-42404; UK/IE = SV42-42406; AU = SV42-42408.

Stay productive and on the go with our certified power system. This innovative, truly ergonomic and easy-to-maneuver healthcare cart features sit-to-stand height adjustment and an adjustable back-tilt keyboard tray.

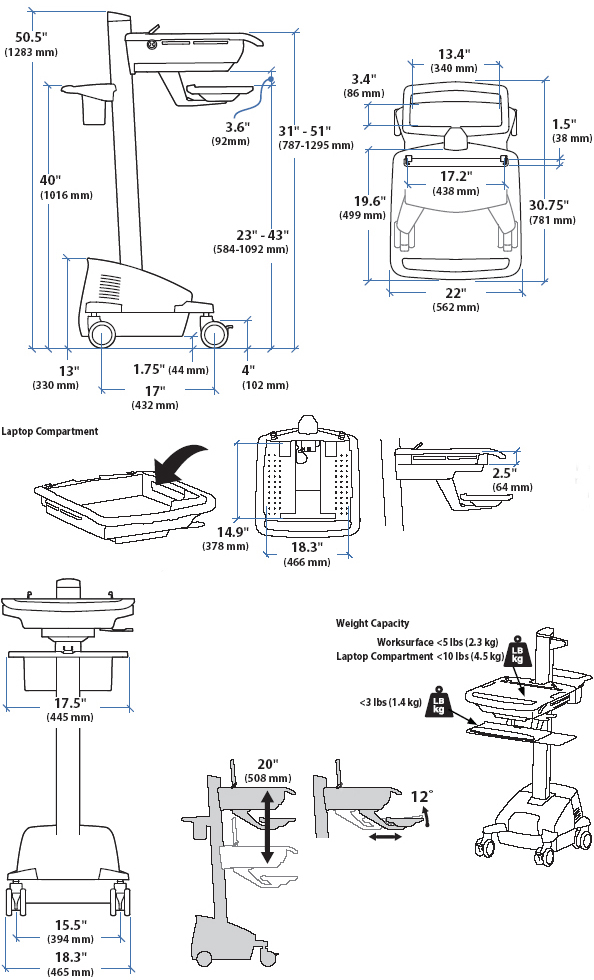

Technical Drawing of Ergotron SV42-42402 StyleView EMR Laptop Cart, Powered



Technical Drawing of Ergotron SV42-42402 StyleView EMR Laptop Cart, Powered









Technical Specifications:



LCD size

Capacity

Lift

Tilt

Pan

Rotation

VESA

LCD Size

Capacity

Lift

Tilt

Pan

Rotation

VESA

Up to 17.3"

Up to 18 lbs

8 kg

20"

51 cm

- - - -









Product Information:



Part Number:

North America = SV42-42402; Europe = SV42-42404; UK/Ireland = SV42-42406; AS/NZS = SV42-42408

Description:

StyleView EMR Laptop Cart, Powered (white, grey and polished aluminum)

Includes:

  • Worksurface

  • Secure laptop compartment

  • Ethernet ready-on function and four-port USB hub

  • Scanner holder bracket

  • Mouse holder

  • Wrist rest

  • Back-tilt keyboard tray

  • Left/right mouse tray

  • Rear handle

  • Storage basket

  • Cable storage

  • Four casters (two locking)

  • Two-battery 66 Ah LiFe power system

  • 10-foot (3 m) coiled cord

  • Four hospital-grade AC outlets

  • Power system user interface

  • Style Link software

Maximum Laptop Size:

17"W x 14.75"D x 2"H (432 x 375 x 51 mm)

Weight Capacity:

Total maximum load on height-adjustment assembly = 18 lbs (8 kg). This is the sum of the following components: worksurface ≤ 5 lbs (2.3 kg); keyboard tray ≤ 3 lbs (1.4 kg); and laptop compartment ≤ 10 lbs (4.5 kg).

Laptop and Worksurface:

Adjust 20" (51 cm) in tandem.

True Ergonomics:

  • Ergonomic back-tilt keyboard tray with left or right mouse tray ensures wrists remain in a neutral position during data entry - avoid repetitive-stress injuries while increasing comfort and productivity.

  • Designed for users 5'0" to 6'1" (152 to 185 cm) tall and for prolonged sitting or standing applications. Unlike competitive offerings, shorter users can work comfortably and productively in a seated position.

  • Patented CF lift-and-pivot motion technology minimizes forces required to adjust cart position: Casters and height adjustment require just a touch.

  • Actual cart weight is just 125 lbs (57 kg), making system relocation easy.

Safe:

  • Dependable fifth-generation power system with easy to replace batteries. For patient and caregiver safety the full cart and power system are certified to UL/EN/IEC 60601-1 and CAN/CSA C22.2 No.601.1 M90, as well as NFPA leakage current limits.

  • Power System User Interface integrated conveniently on the worksurface (includes visual and audible battery status indicator).

  • Power system complies with EMI limits of FCC Part 15 Class A.

  • Surfaces are treated with Agion Antimicrobial for product protection; handles are smooth and continuous for improved clean ability.

  • Environmentally clean: RoHS, REACH, WEEE and EU (94/62/EC) packaging compliant.

  • Durable, easy-to-clean exterior composed of aluminum, high-grade plastic and zinc-plated steel promotes infection control.

  • One-piece worksurface with no seams; easy-to-clean design promotes infection control.

  • Lockable, ventilated enclosed storage for open laptop. Keys and locks are heavy-duty.

  • Front-locking casters.

  • Designed to meet guidelines established by the American National Standards Institute for computer use.

Service:

  • Includes FREE StyleLink with enterprise capabilities - Install, access and manage your StyleView power systems from a remote location across WAN, LAN, or VPN. StyleLink’s three-part software package maximizes your IT tech-support time by giving you real-time centralized control over carts across campus, the city, country or the world.

  • Covered by Global Service Program - 24/7 coverage.

All the Details Covered:

  • Four amber LEDs provide light over keyboard tray; includes 15-minute auto shut-off.

  • Button for LED lights and Ethernet ready-on is located conveniently on worksurface.

  • Easy access to components for field replacement and serviceability: keyboard LEDs, PC boards (including the user interface). Easier, faster upkeep and service means less down time.

  • Notebook screen holders: Prevents the notebook screen from vibration for less damage to hinges over time.

  • Pre-routed cables provide quicker integration with equipment.

  • TAA (Trade Agreements Act) compliant.

  • Universal mounting slot for accessories and equipment.

  • A unique cable management system conceals and organizes cords, making cleaning easy.

  • Ships fully assembled and is easily accessible from container.

  • Four (4) ultra-smooth gliding casters for extremely easy push/pull mobility; two locking casters ensure lock-in-place stability.

Compatibility and Dimensions:

  • Open-architecture design accommodates most laptops - even widescreen with up to 17.3" diagonal size - easing future hardware deployments and upgrades.

  • Compact Wheel-to-Wheel Base Dimensions: 15.5" x 17" (394 x 432 mm).

  • Worksurface Dimensions: 22" W x 19.6" D (562 x 498 mm).

  • VAC: SV42-42102 = 120V/60Hz; SV42-42104, SV42-42106, SV42-42108 = 230V/50Hz

  • Grounded Plug & Outlet: SV42-42102 = NEMA 5-15P Hospital Grade; SV42-42104 = European CEE 7; SV42-42106 = UK BS 1363 SV42-42108 = AS/NZS 3112 Note: In Switzerland, a customer-supplied adaptor is required.

  • 66 Ah Power System with two (2) 33 Ah, 12 V DC, Sealed Lead Acid (SLA), Absorbed Glass Mat (AGM), valve-regulated batteries with supporting electronics.



Shipping Dimensions:

24.5"W x 34"D x 56"H (62 x 87 x 142 cm)

Shipping Weight:

159 lbs (72 kg); actual cart weight = 126 lbs (57.2 kg).

Warranty:

Five (5) years for cart, two (2) years on all power supply components by Ergotron; battery carries limited one- (1-) year performance warranty with use of Style Link software and six- (6-) month warranty against manufacturer’s defects.









Benefits of Ergotron SV42-42402:



  • Effortlessly maneuver the cart to the point of need - StyleView quickly responds to caregivers’ touch and enables nurses to focus on their patients.

  • Truly ergonomic design accommodates the largest range of nurses and other caregivers; designed for sitting or standing with single-motion fluid adjustment - helps promote caregiver wellness and productivity.

  • StyleView’s small footprint, with ultra-smooth gliding casters, travels easily across crowded carpet or hard surface floors and is perfect for space constrained areas.

  • Surfaces are treated with Agion Antimicrobial for product protection.

  • Open-architecture design accommodates most laptops - even widescreen with up to 17.3" diagonal size - easing future hardware deployments and upgrades.

  • Dependable fifth-generation power system with easy to replace batteries. For patient and caregiver safety the full cart and power system are certified to UL/EN/IEC 60601-1 and CAN/CSA C22.2 No.601.1 M90, as well as NFPA leakage current limits.

  • Push-button Ethernet ready-on function embedded in worksurface: Awaken enclosed computer from energy-saving hibernation mode with the touch of an external button—facilitates easy compliance with Energy Star 4.0 guidelines.

  • Passes Ergotron’s 10,000-cycle motion test, which ensures a minimum of five years trouble-free sit-to-stand height adjustment.







Literature (Please open the following documents for more technical information)




Ergotron SV42-42402 StyleView EMR Laptop Cart, Powered - Product Sheet

- pdf

Ergotron SV42-42402 StyleView EMR Notebook Cart, Powered - Dimensional Illustrations

- pdf

Ergotron SV42-42402 StyleView EMR Laptop Cart, Powered - Cleaning Instructions

- pdf

Ergotron SV42-42402 StyleView EMR Notebook Cart, Powered - StyleView Accessories

- pdf
