Ergotron SV32-91126 StyleView PHD Laptop Cart with 6 Drawers and Powered (white/grey)

LCD Size: up to 17". Weight Capacity: up to 23 lbs (10.4 kg). Previously sold as SV32-81126.
Be the first to review this product
Product ID: 16759
Recommended Accessories
Our Price: $4,318.68
Shipping: $210.95 *
Usually ships in 2 to 3 business days
* applies to Contiguous United States









General Information



Image of Warranty and Returns

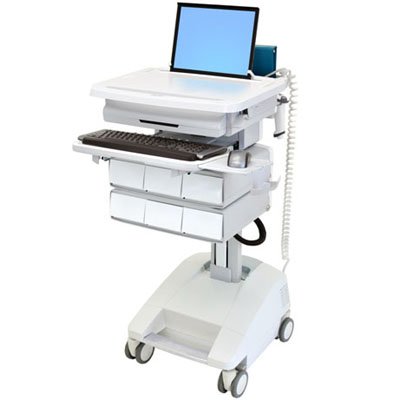

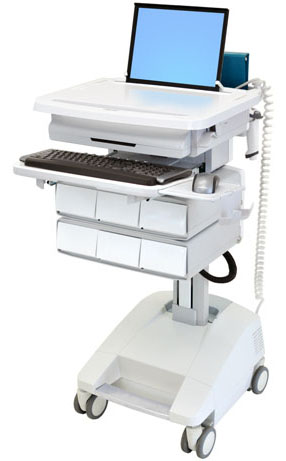

Ergotron SV32-91126 StyleView Patient Healthcare Delivery PHD Laptop Cart with 6 Drawers and Powered (white and grey)



Ergotron SV32-91126 StyleView Patient Healthcare Delivery PHD Laptop Cart with 6 Drawers and Powered (white and grey)









Description of Ergotron SV32-91126:



Order part number that coincides with regional power system requirements: North America = SV32-91126; Europe = SV32-92126; UK/IE = SV32-93126.

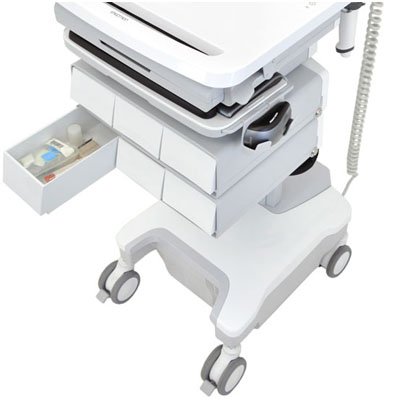

Patient Healthcare Delivery (PHD): Auto-locking drawer system enables simple and efficient non-controlled medication management at the point-of-care.









Technical Drawing of Ergotron SV32-91126 StyleView PHD Laptop Cart with 6 Drawers and Powered



Technical Drawing of Ergotron SV32-91126 StyleView PHD Laptop Cart with 6 Drawers and Powered









Technical Specifications:



LCD size

Capacity

Lift

Tilt

Pan

Rotation

VESA

LCD Size

Capacity

Lift

Tilt

Pan

Rotation

VESA

Up to 17"

Up to 23 lbs

10.4 kg

20"

51 cm

- - - -









Product Information:



Part Number:

North America = SV32-91126;

Europe = SV32-92126;

UK/IE = SV32-93126

Description:

StyleView PHD Laptop Cart, 6 Drawers, Powered (white/grey)

Includes:

  • Auto-locking drawer system (ADS)

  • Six small drawers

  • Two-battery 66 Ah power system

  • 10-foot (3-m) coiled cord

  • Hospital-grade AC outlets

  • Power system user interface

  • Style Link software

  • Worksurface

  • Secure laptop compartment

  • Ethernet ready-on function and four-port USB hub

  • Scanner holder bracket

  • Mouse holder

  • Wrist rest

  • Back-tilt keyboard tray

  • Left/right mouse tray

  • Front and rear handles

  • Storage basket

  • Cable storage

  • Four casters (two locking)

Laptop Holder Internal Dimensions:

17"W x 12.5"H x 3.75"D (43 x 32 x 9.5 cm);

Screen-slot opening in worksurface = 16.1"W (40.9 cm).

Total Maximum Load of Height-Adjustment Assembly:

23 lbs (10.4 kg).

This is the sum of the following components:

  • Capacity of worksurface, keyboard tray and auto lock drawer ≤ 10 lbs (4.5 kg)
  • Capacity of CPU compartment ≤ 13 lbs (5.9 kg).

Laptop and Worksurface:

Laptop and worksurface adjust 20" (51 cm) in tandem.

True Ergonomics:

  • Ergonomic back-tilt keyboard tray with left or right mouse tray ensures wrists remain in a neutral position during data entry - avoid repetitive-stress injuries while increasing comfort and productivity.

  • Designed for users 5'0" to 6' 1" (152 to 185 cm) tall and for prolonged sitting or standing applications. Unlike competitive offerings, users as short as 5'0" (152 cm) can easily work comfortably and productively in a seated position.

  • Patented CF lift-and-pivot motion technology minimizes forces required to adjust cart position: Height adjustment and keyboard placement require just a touch.

  • Four ultra-smooth gliding casters for extremely easy push/pull mobility; two locking casters ensure lock-in-place stability.

Safe:

  • Auto-locking drawer system (ADS): Each drawer is individually controlled with 5-digit master or user PIN; manual key-lock option included; drawer auto-locks after 4 seconds; programmable alarm sounds after 20 seconds; securely stores PINs for up to 100 users.

  • StyleLink Software enables drawer access PINs to be programmed remotely or directly; two points of possible console access for PIN updates/adds include Unit Clerk or IT; full cart open/close event log and reporting capabilities.

  • Dependable fifth-generation power system with easy to replace batteries. For patient and caregiver safety the full cart and power system are certified to UL/EN/IEC 60601-1 and CAN/CSA C22.2 No.601.1 M90, as well as NFPA leakage current limits.

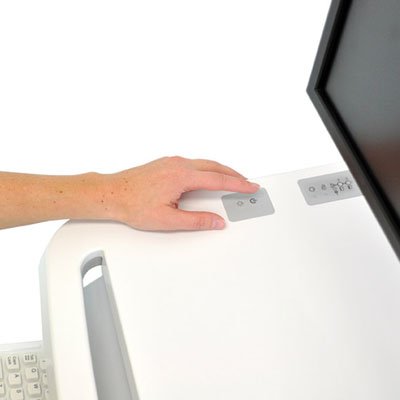

  • Power System User Interface integrated conveniently on the worksurface (includes visual and audible battery status indicator).

  • Power system complies with EMI limits of FCC Part 15 Class A.

  • Surfaces are treated with Agion Antimicrobial for product protection; worksurface and handles are smooth and continuous for improved clean ability.

  • Environmentally clean: RoHS, REACH, WEEE and EU (94/62/EC) packaging compliant.

  • Durable, easy-to-clean exterior composed of aluminum, high-grade plastic and zinc-plated steel promotes infection control.

  • One-piece worksurface with no seams; easy-to-clean design promotes infection control.

  • Lockable, ventilated enclosed storage for open laptop. Keys and locks are heavy-duty.

  • Front-locking casters.

  • Designed to meet guidelines established by the American National Standards Institute for computer use.

Service:

  • Includes FREE StyleLink with enterprise capabilities - Install, access and manage your StyleView power systems and drawers from a remote location across WAN, LAN, or VPN. StyleLink’s three-part software package maximizes your IT tech-support time by giving you real-time centralized control over carts across campus, the city, country, or the world.

  • Covered by Global Service Program - 24/7 coverage.

All the Details Covered:

  • Four amber LEDs provide light over keyboard tray or drawers and includes 15 minute auto shut-off.

  • Button for LED lights and Ethernet ready-on is now located conveniently on worksurface.

  • Easy access to components for field replacement and serviceability: Fan, keyboard LEDs, PC boards (including the user interface). Easier, faster upkeep & service means less down time.

  • Laptop screen holders: Prevents the laptop screen from vibrating for less damage to hinges over time.

  • Pre-routed cables provide quicker integration with equipment.

  • TAA (Trade Agreements Act) compliant.

  • Universal mounting slot for accessories and equipment.

  • A unique cable management system conceals and organizes cords, making cleaning easy.

  • Ships fully assembled and is easily accessible from container.

  • One-piece worksurface, no seams, easy to clean design promotes infection control.

  • Rear basket keeps task-related items where they can be quickly accessed.

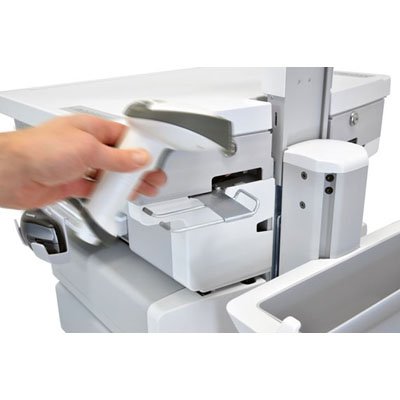

  • Barcode scanner holder provides easy access to hand-held scanner.

Compatibility and Dimensions:

  • Open-architecture design accommodates most notebook computers and future hardware upgrades.

  • Laptop holder internal dimensions: 17"W x 12.5"H x 3.75"D (43 x 32 x 9.5 cm); screen-slot opening in worksurface = 16.1"W (40.9 cm).

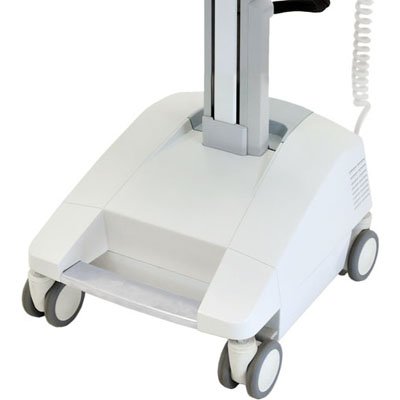

  • Compact wheel-to-wheel base dimensions: 15.5" x 18.7" (39 x 48 cm).

  • Worksurface Dimensions: 20.9"W x 16.4"D (53 x 42 cm).

  • VAC: SV32-91126 = 120V/60 Hz; SV32-92126, SV32-93126 = 230V/50 Hz.

  • Grounded Plug & Outlet: SV32-91126 = NEMA 5-15P Hospital Grade; SV32-92126 = European CEE 7; SV32-93126 = UK BS 1363 Note: In Switzerland, a customer-supplied adaptor is required.

  • 66 Ah Power System with two (2) 33 Ah, 12 V DC, Sealed Lead Acid (SLA), Absorbed Glass Mat (AGM), valve-regulated batteries with supporting electronics.

Shipping Dimensions:

23" x 30" x 55" (58 x 76 x 140 cm)

Shipping Weight:

198 lbs (90 kg); actual cart weight = 165 lbs (75 kg)

Warranty:

Five (5) years for cart, two (2) years on all power supply components by Ergotron; battery carries limited one- (1-) year performance warranty with use of StyleLink software and six- (6-) month warranty against manufacturer’s defects.









Benefits of Ergotron SV32-91126:



  • Auto-locking drawer system: Simple and efficient non-controlled medication management at the point-of-care reduces opportunities for errors; security system stores PINs for up to 100 users.

  • Six separate drawers provide support for six patients.

  • Truly ergonomic design accommodates the largest range of caregivers; designed for sitting or standing with single-motion fluid adjustment - helps promote caregiver wellness and productivity .

  • StyleView’s small footprint, with ultra-smooth gliding casters, travels across crowded carpeted or hard floors with ease - perfect for space constrained areas.

  • Surfaces are treated with Agion Antimicrobial for product protection.

  • Open-architecture design accommodates most laptops - even widescreen - easing future hardware deployments and upgrades.

  • Dependable fifth-generation power system with easy to replace batteries. For patient and caregiver safety the power system and cart are both certified to UL/EN/IEC 60601-1 and CAN/CSA C22.2 No.601.1 M90, as well as NFPA leakage current limits.

  • Push-button Ethernet ready-on function embedded in worksurface: Awaken enclosed computer from energy-saving hibernation mode with the touch of an external button - facilitates easy compliance with Energy Star 4.0 guidelines.

  • Enterprise Management: FREE Style Link Software secures access to drawers and allows remote monitoring/configuration with established Microsoft tools.

  • Passes Ergotron’s 10,000-cycle motion test, which ensures a minimum of five years trouble-free sit-to-stand height adjustment.
